DM H69-1 Antenna

$432.00/Each
Quantity
Add to Wishlist
Part# 11-02775
MFR Model# DM H69-1

Overview

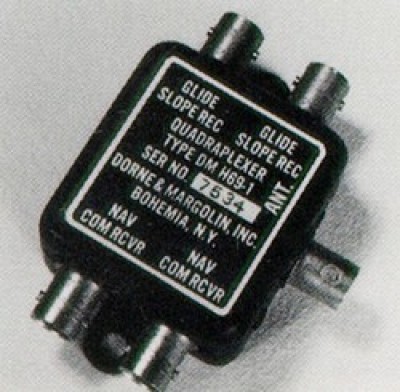

QUADRAPLEXER/DUAL VOR/DUAL GS
Frequency 108-118 - 329-335.3 MHz

The DM H69-1 provides, in one small lightweight component, the ability to operate dual NAVS and dual Glide Slope receivers from one VOR antenna. As with our coupler series, the DM H69-1 is designed to couple multiple systems to the single antenna with minimum insertion loss but with more than adequate isolation to prevent intersystem crosstalk.

The ruggedly built DM H69-1 is housed in an aluminum case and all circuit components are fully encapsulated for vibration protection as well as waterproof protection.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

  • Frequency Range: 108-118 -- 329-335.3 MHz
  • VSWR: 2.0:1 Max.
  • Impedance: 50 Ohms
  • Isolation VOR: 18 dB Max.
  • VOR-GS: 20 dB Min.
  • GS-GS: 18 dB Min.
  • Insertion Loss VOR: 1 dB Max.
  • GS 1 dB Max.
  • Connectors BNC: male
  • Weight: 5 oz.
  • Category: MIL-E-5400
  • CLASS: II
  • Vibration: Curve 1A
