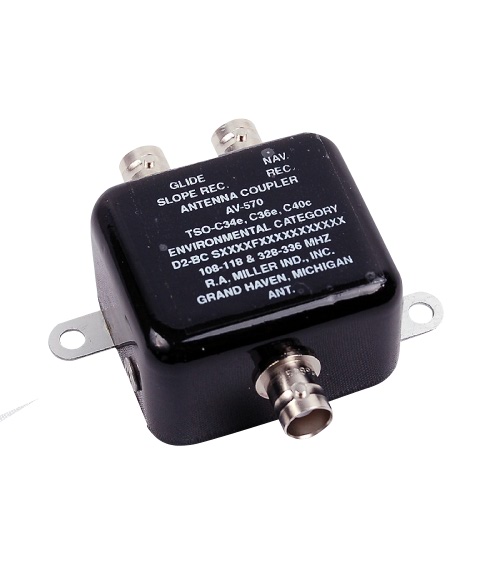

RAMI AV-570 Diplexer Coupler

$144.85/Each
Quantity
Add to Wishlist
Part# AV-570
MFR Model# AV-570

Overview

Splits the signal from a single NAV antenna into a NAV and glide slope receivers.

Application: Navigation & Glide Slope
Frequency: 108-118 & 328-335 MHz
Impedance: 50 Ohms Nominal
Connector: (3) Type "BNC" Females
Max Weight: 3.5 oz
Filtering: 30 dB Min / 40 dB Avg
Insertion loss: 1 dB Maximum
Isolation: 38 dB Min
Dimensions: 2" x 1-3/3" x 1-1/8"
RF Power Capacity: Receive only

Click here to download
Outline Drawing in PDF format.


California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Reviews

Order filled and shipped quickly. Product is as advertised.

Henry N
April 18, 2020

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is this equivalent to the COMANT CI507?

Yes, this is the same as CI-507
