Frequency 329-335 MHz Single VOR / single glide slope diplexer allows the operation of one VOR and one glide slope receiver from one VOR/glide slope antenna. Compact design makes installation easy. |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
MODEL CI 507 COUPLER VOR | |
Electrical | |
Frequency | 108-118 and 329-335 MHz |
VSWR | 1.5:1 Maximum |
Insertion Loss | 0.5 dB Maximum |
Isolation | 20 dB Minimum |
Impedance RF | 50 Ohms |
Mechanical | |
Weight | 0.20 lb. Maximum |
Height | 0.88 in. Maximum |
Finish | Aluminum |
Material | Die Cast Aluminum |
Connector | BNC (Female) |
Environmental | |
Internal Mount | |
Federal Specifications | |
FAA TSO | C34c, C36c, C40a |
A quality product.

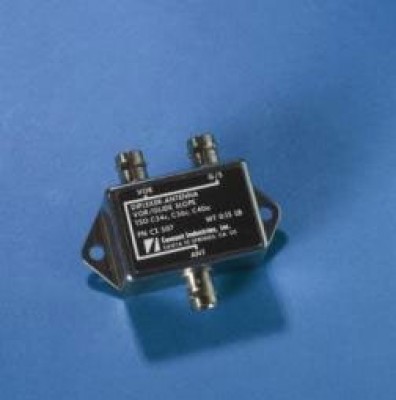

Comant CI-507 1 VOR 1 GS Diplexer
Comant CI-507 1 VOR 1 GS Diplexer
This is a necessary item if you have a separate VOR and glide slope antenna to generate a composite navigation signal for navigation radios with a single navigation input.
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
The CI-507 is only required if you have separate units that require the operation of one VOR and one glide slope receiver from one VOR/glide slope antenna.
