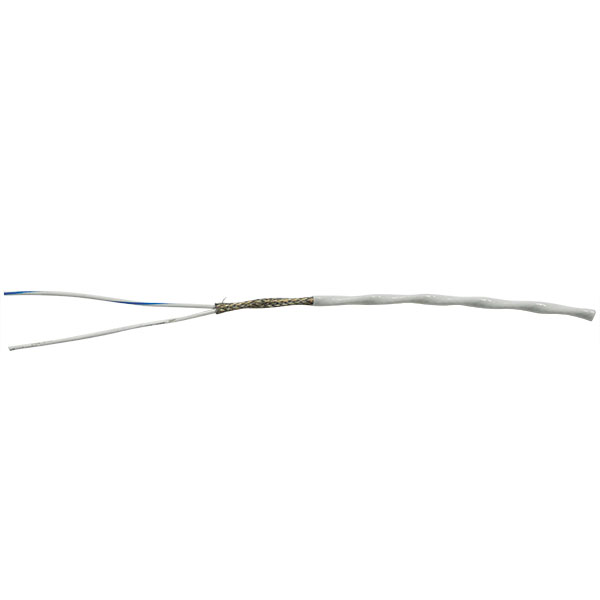

Shielded 22GA 2 Conductor White Wire M27500-22TG2T14

$2.42/Foot
Part# 11-05650
MFR Model# J3571
Mil SpecConductorWire GaugePart Number
M27500-22TG2T1422211-05650

Overview

This shielded & jacketed aircraft wire conforms to MIL-C-27500 & replaces MIL-C-7078/3. It incorporates MIL-W-22759/18 basic wire and features a Tefzel insulation, a shield of tin- plated copper braid and a jacket of Tefzel. It is temperature rated to 150°C & voltage rated at 600 volts. Top quality wire to military specs.
