Shielded 22GA White Wire M27500-22TG1T14

$1.64/Foot
Part# 11-14422
MFR Model# J2288
Mil SpecConductorWire GaugePart Number
M27500-22TG1T1412211-14422

Overview

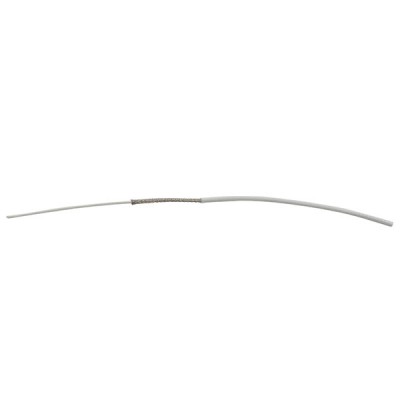

This shielded & jacketed aircraft wire conforms to MIL-C-27500 & replaces MIL-C-7078/3. It incorporates MIL-W-22759/18 basic wire and features a Tefzel insulation, a shield of tin- plated copper braid and a jacket of Tefzel. It is temperature rated to 150°C & voltage rated at 600 volts. Top quality wire to military specs.

*8 Gauge shielded wire is used in converting generator systems to alternators. Conforms to MIL-C-27500
