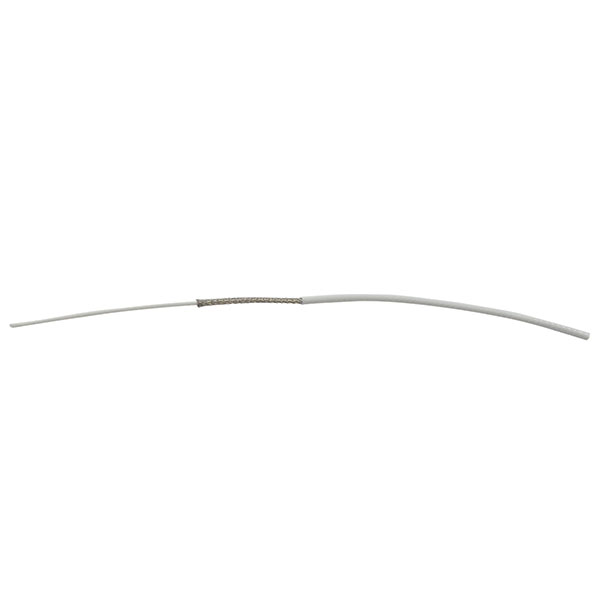

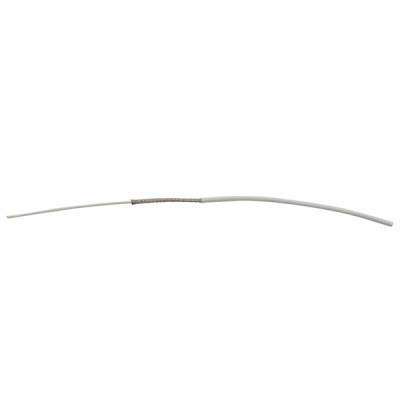

Shielded 18GA White Wire M27500-18TG1T14

$2.60/Foot
Part# 11-14418
MFR Model# J2282
Mil SpecConductorWire GaugePart Number
M27500-18TG1T1411811-14418

Overview

This shielded & jacketed aircraft wire conforms to MIL-C-27500 & replaces MIL-C-7078/3. It incorporates MIL-W-22759/18 basic wire and features a Tefzel insulation, a shield of tin- plated copper braid and a jacket of Tefzel. It is temperature rated to 150°C & voltage rated at 600 volts. Top quality wire to military specs.

*8 Gauge shielded wire is used in converting generator systems to alternators. Conforms to MIL-C-27500


California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

  • Construction; Stranded tin plated copper conductor extruded etfe tin plated copper braid 85% coverage white extruded etfe jacket.
  • Color: White

Reference Chart

  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Great product.

Steiner G Verified Purchase

Shielded 18GA White Wire M27500-18TG1T14

March 26, 2024

Good stuff

Owen W Verified Purchase

Shielded 18GA White Wire M27500-18TG1T14

February 1, 2024

More good stuff

John F Verified Purchase

Shielded 18GA White Wire M27500-18TG1T14

November 16, 2023

It is a quality wire, be cautious stripping the outer insulation, good wire

Michael H Verified Purchase

Shielded 18GA White Wire M27500-18TG1T14

November 3, 2023

perfect for the job

Terence K Verified Purchase

Shielded 18GA White Wire M27500-18TG1T14

April 15, 2023

This wire is so wirey it is truly a thing of wonder, be sure to not let the smoke out!!

Willamette A Verified Purchase

Shielded 18GA White Wire M27500-18TG1T14

February 7, 2023

Exactly what was needed, and was in stock.

Herschel C Verified Purchase

Shielded 18GA White Wire M27500-18TG1T14

July 7, 2022

Michael H Verified Purchase

Shielded 18GA White Wire M27500-18TG1T14

July 3, 2021

Product was correct came in on time worked out perfect for the job

Dale J
May 18, 2021

Excellent, quick service. They sent me a very short amount of shielded circuit wire. It had been difficult to find someone on the Internet that would send me such a small amount.

Nate C
May 3, 2021

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What color is the Shielded MIL-C-27500 wire listed on this page?

All the wire listed on this page is white.

Q: What tool do you recommend for stripping just the jacket of your 11-14418 shielded wire?

The only approved tool is part number 12-02031. Otherwise a razor blade is used.

Q: What is the diameter of the shielded #6 wire?

It is 5/16" diameter.

Q: What is the diameter of 20 awg shielded wire?

The diameter of shielded 20ga white wire M27500-20TG1T14 part # 11-14420 is 2mm.

Q: What is the outside diameter of MIL-C-27500, 16 gauge wire?

The nominal outside diameter of 16 ga wire under m27500-16tg1t14 is .092 inches.

Q: Is the 24 gauge 2 conductor a twisted pair wire?

M27500-24TG1T14 is a single conductor. Please look at Part# 11-04477.

Q: Is the M27500-18TG3T14 wire have two internal wires with a shield for three conductor or three internal wires with an external shield (4 conductors total)?

This has an external shield and has 3 individual wires inside.

Q: What is the outer diameter of the M27500-22TG6T14 cable?

.180 inch OD.

Q: What are the applications for shielded wire vs un-shielded wire?

The installation manual for the unit in question must always be consulted for the recommended wire that must be used.

Q: Is this tefzel wire?

No this is Extruded Ethylene Tetrafluoroethylene
