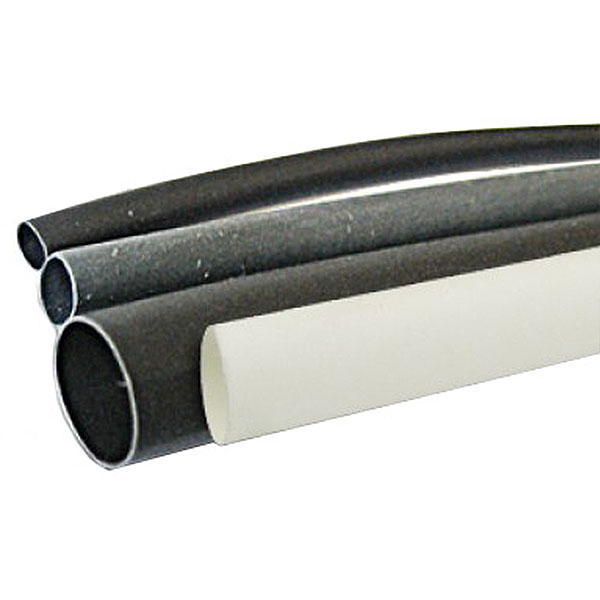

Heat Shrink Tube 1/4 Black 2:1 Ratio 4
MFR Model# 4120610
FREE Shipping
- JUMP TO
- Overview
- Reviews
- Q&A
- View in Catalog
|
Expanded Size | Expanded I.D. | Recovered I.D. | Nominal Wall | PN |
|---|---|---|---|---|
| 1/4 | .250 | .125 | .025 | 11-01100 |
Overview
|
A general purpose
heat shrinkable tubing with a wide scope of applications including
harnessing, wire bundling, strain reliefs or any application
where components or cables must be insulated or packaged. Material
is an irradiated, thermally stabilized, modified polyolefin which is
vastly superior to thermoplastic type materials. Flexible and
flame retardant. Shrinkable by any hot air source such as an
electric hair dryer or any heating device delivering at least
250°F. One person can complete installation in seconds. No
need for special skills. Meets spec. MIL-I-23053B. Standard length
- 4 ft. Minimum purchase 4 ft. per size. Sold only
in full 4 ft. lengths Note: 25% Discount on 12 or more 4' lengths. (per size) Always order the largest size which will fit snugly over the component being covered. Wall thickness will be less if recovery is restricted during shrinking. |
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Reviews
Verified Purchase
Heat Shrink Tube 1/4 Black 2:1 Ratio 4
Works great for P-leads: use the outer braided shield for the ground wire (remove a couple inches of outer casing from each end, unbraid it, twist it together and slide back into the removed casing. Hold the casing in place with a 1/2 long, double layer of heat shrink tube, centered over where you cut the casing. Crimp ring terminals on the ends and youre done. Dont forget the silicone nipples!
Verified Purchase
Heat Shrink Tube 1/4 Black 2:1 Ratio 4
Good product at a good price and fair shipping.
Verified Purchase
Heat Shrink Tube 1/4 Black 2:1 Ratio 4
Verified Purchase
Heat Shrink Tube 1/4 Black 2:1 Ratio 4
Verified Purchase
Heat Shrink Tube 1/4 Black 2:1 Ratio 4
As anticipated
Verified Purchase
Heat Shrink Tube 1/4 Black 2:1 Ratio 4
Great quality, good product !!
Verified Purchase
Heat Shrink Tube 1/4 Black 2:1 Ratio 4
good product to cover adhesive sleeve
Verified Purchase
Heat Shrink Tube 1/4 Black 2:1 Ratio 4
Great product
Worked as stated.
