Master Fuel Stiks
MFR Model# FS-2P0-US
FREE Shipping
Overview
|

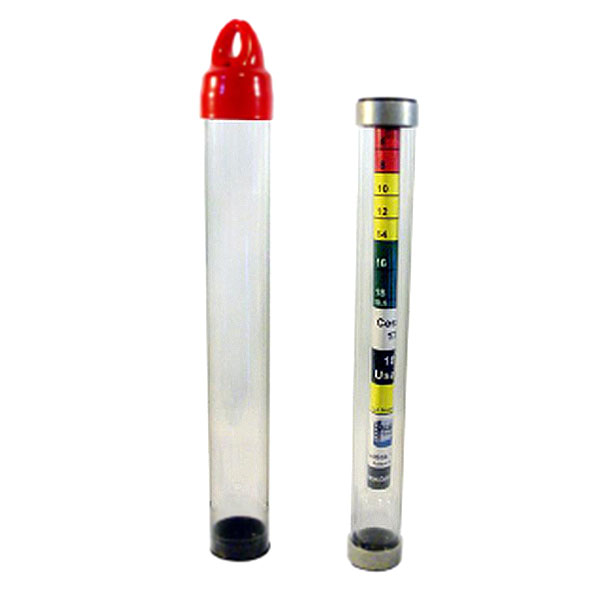

Extremely light, high impact plastic tubing with aluminum rings resist damage. Available "Aircraft Specific Scales" Can be downloaded and printed from the website. Can easily be calibrated to any tank using the "Universal" scale. A worksheet, written instructions and even an instructional video are available at the website. We will generate an "Aircraft Specific Scale" from your calibration
It's shipping tube doubles as a "Vented Storage Tube". This allows any remaining fuel to evaporate between uses, provides a protection for the life of the unit and reduces manufacturing waste. It's design gives consistent readings even when the fuel in the tank is sloshing around. It's upper and lower rings aide in handling. Large Easy-to-Read numbers observed outside the tank. Quantities given in both Gallons and Pounds! Color coded sections represent approx. 1/3 cruise consumption. It's not limited to your aircraft. Works in tractors, small motors, etc. Will not fall into fuel tank on most aircraft. 100% Made in the USA  |
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Specifications
- Device Size- 10 3/4 In (273 mm) X 1 1/4 in (32mm)
- Shipping Tube size- 12 5/8 (320 mm) X 1 1/2 (38 mm)
- 38g Device Only, 82 g with shipping tube/ documents
- Construction: Fuel Resistant Plastic, Aluminum
Documents
- Calculator Worksheet (PDF)
- Calibration Instructions (PDF)
Videos
Reviews
One slick product, but requires a little careful work to get it ready to use. Fuelstik provides scales for a lot of aircraft, which you can print out and insert. I found a scale for the 182M Im now flying whose tanks apparently fit a 182P. Printing it out revealed that my printer wasnt true to scale. A little finagling and I got it. Make sure to set aside 20 minutes or so to get this right. But its worth it. Then at the aircraft, remove the cap, and boom: fuel quantity and weight. Plain as day. An elegant design, a thing of beauty.
I printed the scale for my model and inserted as per instructions. No guessing, this thing is very clear and easy to read. The storage container is a great idea no mess and no smell. I would recommend this product.
The issue I dont like about this gage is that the tank has to have enough fuel in it to cause the float to rise. On my RV9a I tried two gages. The universal fuel hawk gage and this gage. The Universal is a simple straw type gage and will record even 1/4 of fuel in the tank. This gage would not give any readings until I had almost 10 gallons in my 18 gallon tank. The other simple straw type gage gave readings at under 6 gallons. So I find the straw type gage better.
Q&A
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
The size listed is usable fuel tank size. You would order the 19 gallon stick.
They are calibrated in US gallons. They measure in useable fuel. So 37 gallons would be your useable fuel per tank.
Part # 05-12360 for the RV6A would be calibrated for tail up. If you need one for tail down, you would calibrate it yourself with the universal Fuel Stik, part # 05-12361.
The difference between the two is that Part # 05-12362 uses an Aircraft specific scale and that the instructions are different between the two Fuel Stiks.
