Gats Fuel Tester Jar 12Oz

$19.85/Each
Part# 05-21250

Overview

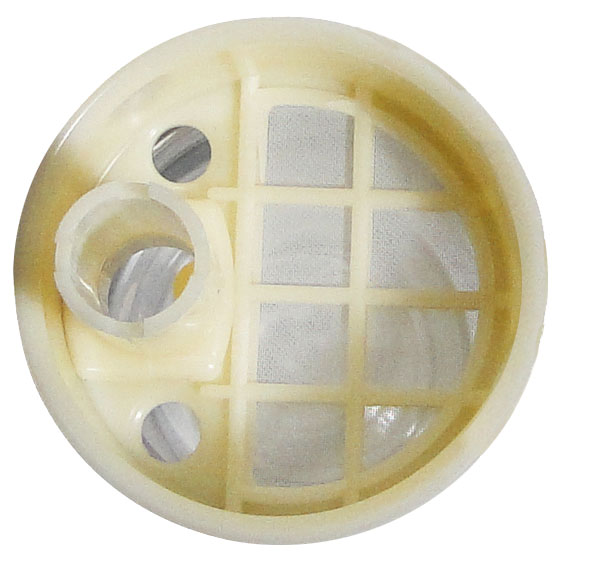

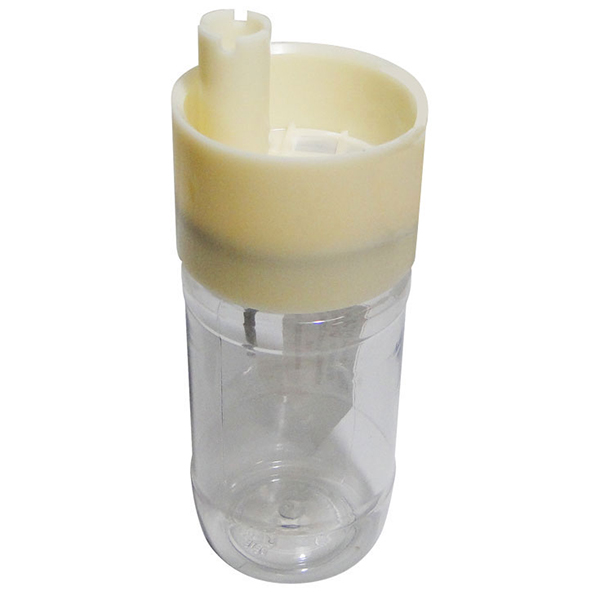

The incredible new GATS Jar allows a pilot to pour the fuel used in the preflight check back into the fuel tank without fear of water contamination. The jar uses a special separator screen that, when coated with avgas, forms a barrier to water and debris, yet allows passage of avgas. The GATS Jar also detects jet fuel in the event of inadvertent fueling of your aircraft with jet fuel. By using the GATS Jar, pilots can help protect the environment by pouring sample fuel back into the tank instead of on the ground.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Reviews

Tanner D Verified Purchase

Gats Fuel Tester Jar 12Oz

November 6, 2024

Tested the screen and it really does block water and tiny debris from re-entering the tank. Havent had a bad sample yet but its nice to know that I dont necessarily need to dump leaded fuel on the ground.

Brooks M Verified Purchase

Gats Fuel Tester Jar 12Oz

September 10, 2024

I didnt have chance to use this yet. But it looks good.

Sang W Verified Purchase

Gats Fuel Tester Jar 12Oz

July 28, 2024

The plastic lid is made of very poor quality plastic that gets brittle in about a year. Otherwise a great product.

Jordan E Verified Purchase

Gats Fuel Tester Jar 12Oz

July 8, 2024

I carry this in my acro plane for cross country. Often the ferry tanks have a little left over that is easy to return to main tank.

Aircraft R Verified Purchase

Gats Fuel Tester Jar 12Oz

May 10, 2024

N504tk, L Verified Purchase

Gats Fuel Tester Jar 12Oz

April 10, 2024

Great product, however one must be careful not to over tighten the screw on lid. I must have done that because mine split down the side of the cap.

Ron
February 3, 2024

Works great! Essential item for operating avgas aircraft.

Robert P Verified Purchase

Gats Fuel Tester Jar 12Oz

January 24, 2024

Greg D Verified Purchase

Gats Fuel Tester Jar 12Oz

November 7, 2023

Work 💯% on the beechcraft sundowner.

Vincent D Verified Purchase

Gats Fuel Tester Jar 12Oz

August 19, 2023

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Will this Gats jar work with Jet A?

Per the supplier: yes, it will.

Q: Is the 16 oz. GATS jar taller or larger diameter than the 12 oz. version?

It is the same size diameter, only taller.

Q: Does the GATS Jar come with the sump actuator or must I purchase one separately?

Yes, the GATS jar fuel sampler comes with the actuator. We do offer them separately as well in case the original gets lost or damaged.

Q: The Gats jar fuel sampler says it detects Jet A in Avgas, how does it do that?

The GATS Jar Fuel Tester uses the difference in the rate of evaporation between AVGAS and Heavier than AVGAS fuels to test for Jet fuel as a contaminant. The process is quick, simple, and once mastered is quite reliable. Immediately after the samples have been collected and examined and while the screen is still covered in fuel, blow gently and indirectly on the screen with your mouth from at least a foot away and observe the evaporation of the AVGAS from between the strands of the mesh. The AVGAS will evaporate quickly and continuously until it is gone from all but a few screen cells. If there is Jet fuel or another heavier than AVGAS fuel present a delay will be observed in the overall evaporation of the fuel clinging to the screen with a significant number of screen cells still containing fuel after the initial surge of evaporation. After a short interlude the remaining cells will begin to clear of fuel as the gentle air flow of breath over the mesh continues. This is the contaminating fuel evaporating from a slightly elevated temperature. The two different rates of evaporation is somewhat subtle and care must be taken not to overwhelm the process by blowing too hard on the screen. Once mastered, one should be able to detect Jet fuel contamination to as little as 5%.

Q: Are replacement gaskets available for the GATS Jar fuel sampler or must I buy a whole new jar?

In case of O-ring failure, if you contact the manufacturer by phone, email, or fax they will issue a no-cost replacement to you.

Q: I have a Columbia 300 which has a flush drain design that requires a 3/16 or 1/8 pin be shoved up into the assy to drain fuel. Does the gats have that pin? It is hard to see in the pictures

Yes, the Gats jar will have the pin to get a fuel sample from the drain valve.

Q: Running a jet that uses diesel and 2% turbine oil. Will the GATS jar fuel sampler still work to separate water with this fuel?

Per the manufacturer, yes, this will work.

Q: What does GATS stand for?

Per the manufacturer: The name is an anagram that initially meant Gas Analysis Test Separator. However, it works with all purely petroleum fuels including jet fuel and diesel fuel, so I could have called it the FATS tester but I thought GATS was better.

Q: Will the GATS jar separate water from mogas, or from a mogas/avgas mix? Im buying a Cessna 150 which is certified for operation on mogas or on a mixture of mogas/avgas Just wondering if the GATS jar will work for that. Thank you.

As long as it does not have alcohol in it, it will work just fine. It will work with all petroleum fuels and their petroleum based additives from diesel fuel to kerosene jet fuels, to all purely petroleum gasoline fuels of all octanes that are not mixed with alcohol or any other organic, water soluble liquid.
