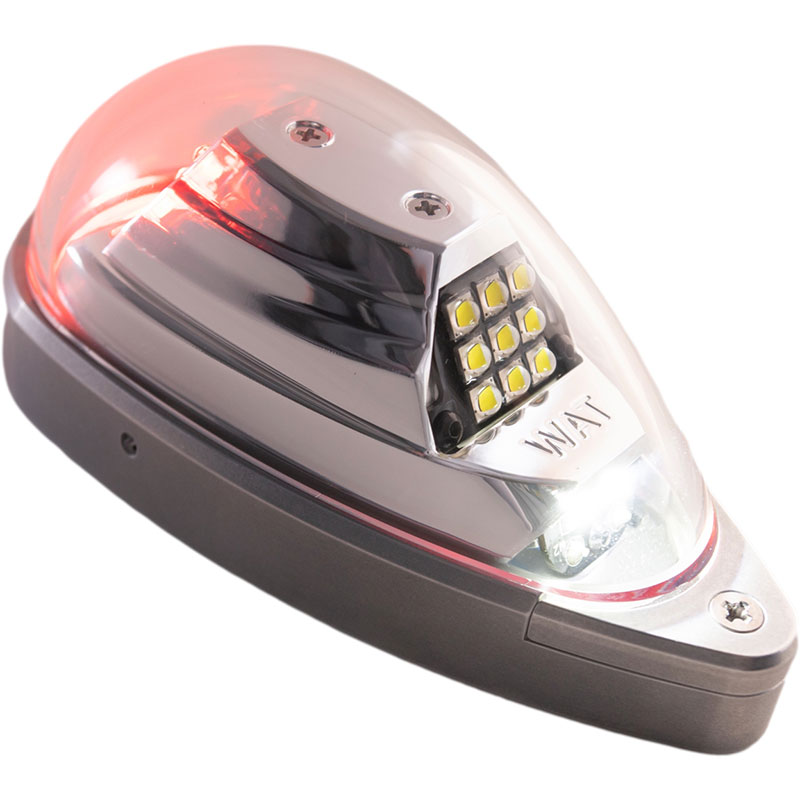

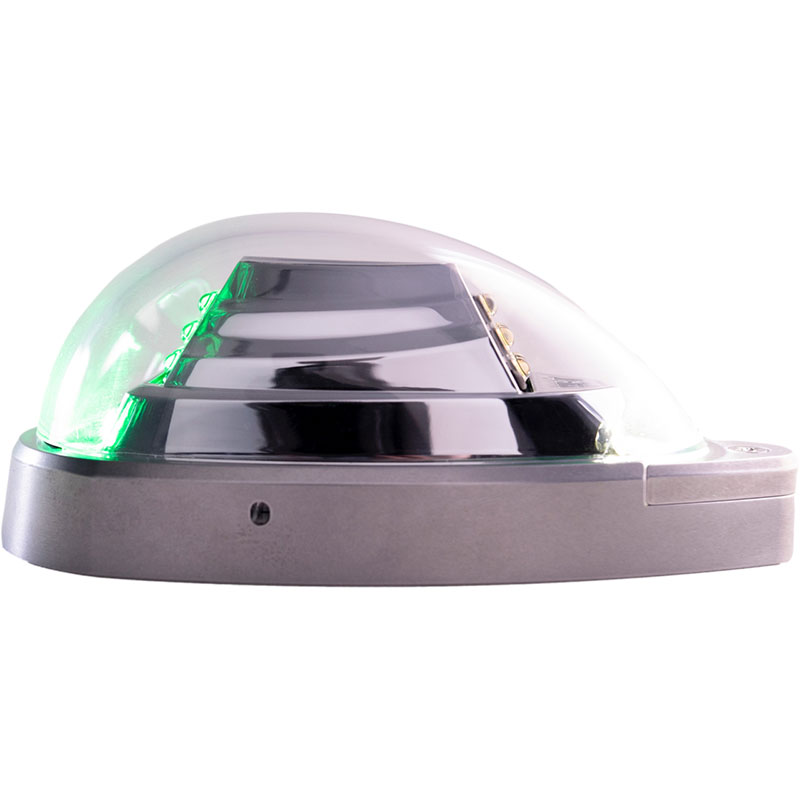

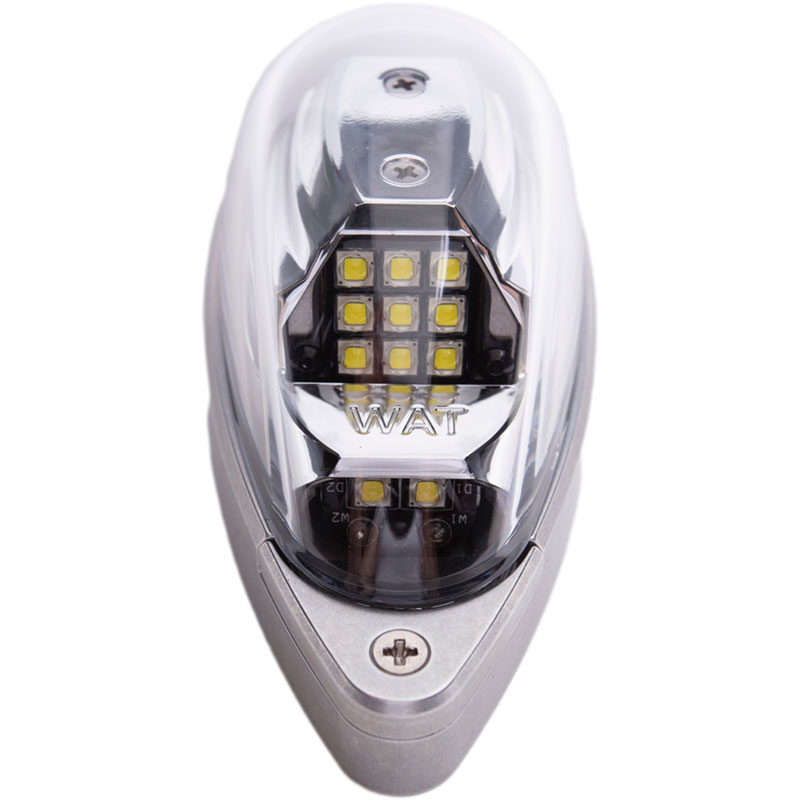

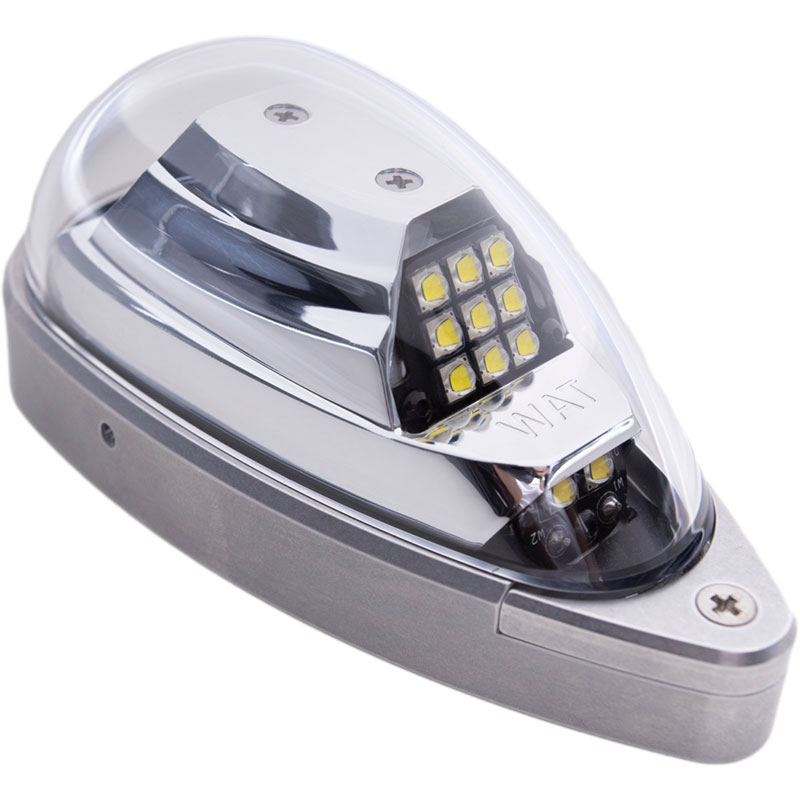

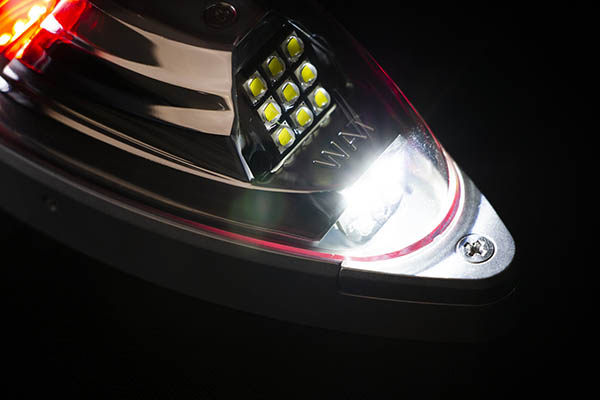

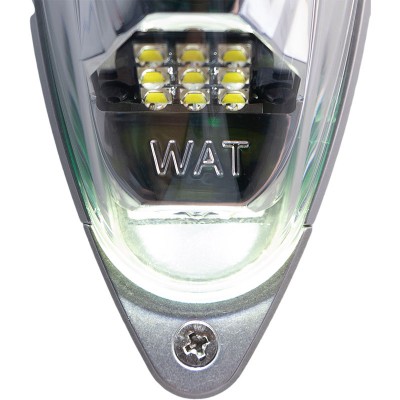

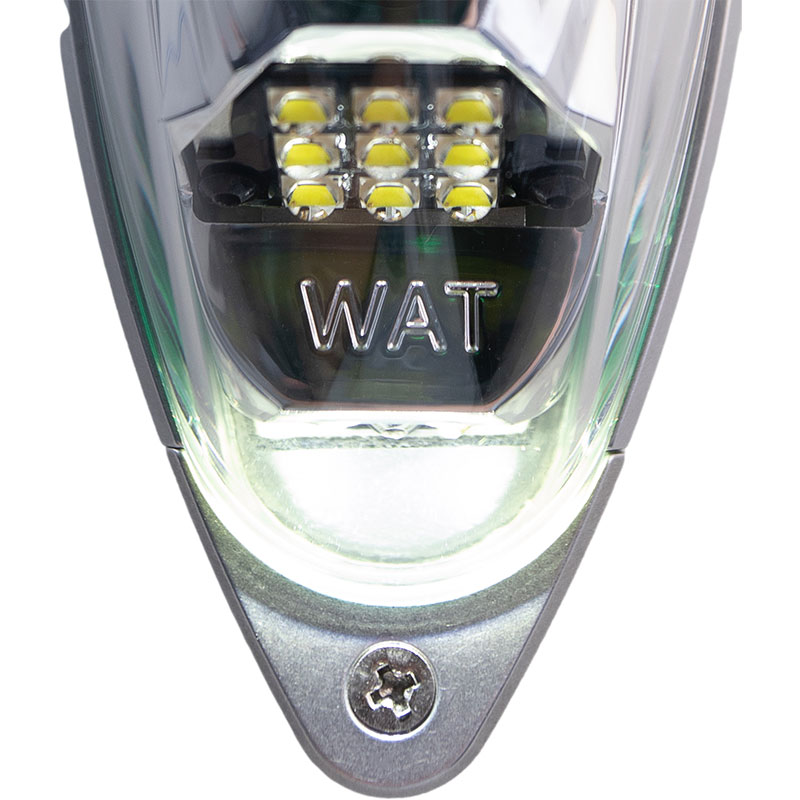

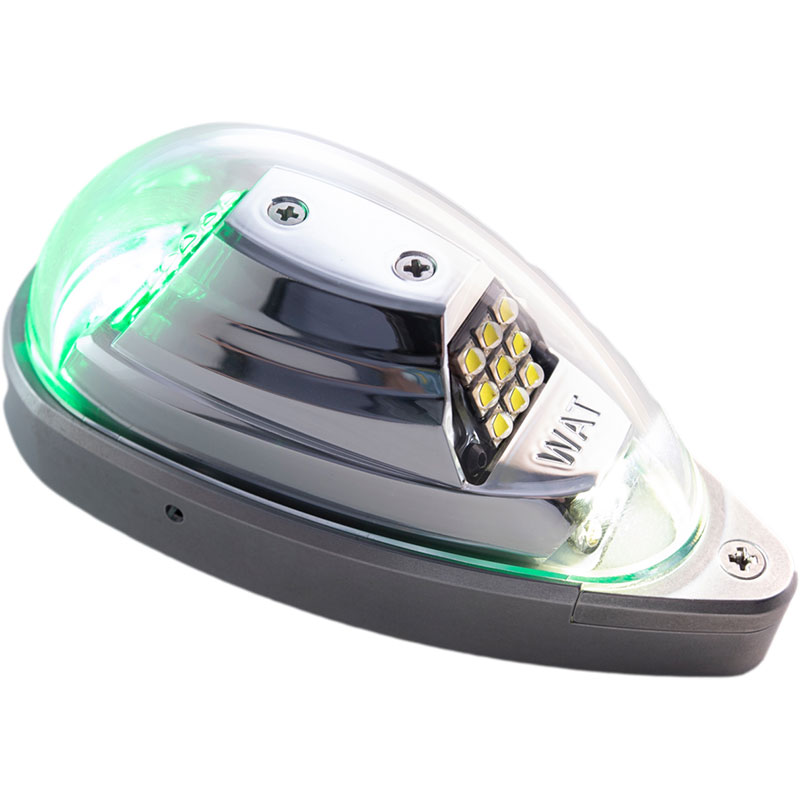

Whelen Orion™ 660 Series LED Wingtip Position / Anti-Collision Light
| Model Num. | Description | Whelen # | Approvals | PN | Price | Buy |
|---|---|---|---|---|---|---|
| OR6601G | Green Forward Position, Anti-Collision & Tail Light Assembly, 14 VDC | 01-0790877-01 | TSO-C96a Class III / TSO-C30c Type II & III | 11-18777 | $615.00 | |
| OR6601R | Red Forward Position, Anti-Collision & Tail Light Assembly, 14 VDC | 01-0790877-02 | TSO-C96a Class III / TSO-C30c Type I & III | 11-18778 | $615.00 | |
| OR6602G | Green Forward Position, Anti-Collision & Tail Light Assembly, 28 VDC | 01-0790877-11 | TSO-C96a Class III / TSO-C30c Type II & III | 11-18779 | $615.00 | |
| OR6602R | Red Forward Position, Anti-Collision & Tail Light Assembly, 28 VDC | 01-0790877-12 | TSO-C96a Class III / TSO-C30c Type I & III | 11-18780 | $615.00 |
Overview
| The Orion 660 series products incorporate RED or GREEN Forward Position Lights as well as the WHITE flashing Anti-Collision Light function. State of the art LED circuitry is built in to eliminate the need for separate flasher boxes for operation. The footprint, and mounting, are identical to legacy Whelen products for ease of installation and retrofit. Fully FAA/TSO approved. |
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Specifications
- Drawing 90725
- Weight 0.26 lbs
- Current Draw 12V / 28V 0.30 / 0.15 Amps Position 0.70 / 0.35 Amps Avg. ACL
- Lenses Clear Hardcoated Polycarbonate
Drawing
Videos
Reviews
Nice and bright, Easy installation, less of a strobe and more of a flashing white, but it is super bright!
Verified Purchase
Whelen Orion 660 LED Wingtip Pta 14V Red OR6601R
Very nice led lights, highly recommended
Verified Purchase
Whelen Orion 660 LED Wingtip Pta 14V Red OR6601R
Very nice led lights, highly recommended
Verified Purchase
Whelen Orion 660 LED Wintip Pta 14V Green OR6601G
Bolted onto my 1940 Taylorcraft 👍
Verified Purchase
Whelen Orion 660 LED Wintip Pta 14V Green OR6601G
Bolted on to my 1940 Taylorcraft 👍
Verified Purchase
Whelen Orion 660 LED Wingtip Pta 14V Red OR6601R
Very good construction quality. I used the devices to replace old 650 strobe. This device is a direct physical replacement to the 650 making installation easy. While the strobe intensity is strong, the unit does not provide the dual flash like the old units (hence rating of4)
Verified Purchase
Whelen Orion 660 LED Wintip Pta 14V Green OR6601G
Very good construction quality. I used the devices to replace old 650 strobe. This device is a direct physical replacement to the 650 making installation easy. While the strobe intensity is strong, the unit does not provide the dual flash like the old units (hence rating of4)
Verified Purchase
Whelen Orion 660 LED Wingtip Pta 14V Red OR6601R
Light is great very bright, however bird strikes will more than likely cause damage not as tight to the wing tip as I would like installed on airtractor passenger planes would be five star
Verified Purchase
Whelen Orion 660 LED Wingtip Pta 28V Red OR6602R
Q&A
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
The Orion 660 LED series is fully TSO approved. Please reference individual row data for the model number to determine specific TSO approval.
The strobe and position lights are run off separate wires. The strobe would typically need a 3 amp breaker and position a 1 amp.
The strobe on 11-18777 cannot be run through the power supply. You would need to remove the power supply and wire this light to ships power.
