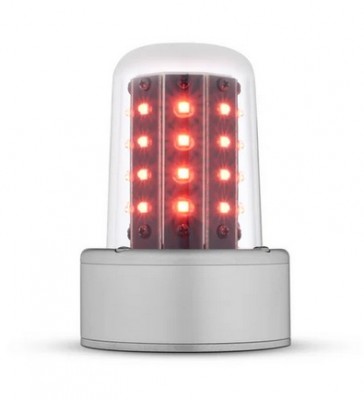

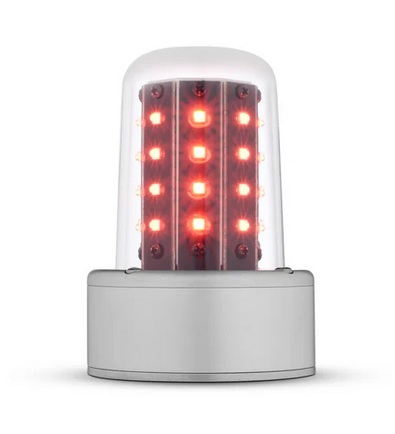

Whelen 7108051 LED Red 14VDC

16 Reviews 11 Answered Questions
$735.00/Each
Quantity
Add to Wishlist View More In This Series →
Part# 11-07686
MFR Model# 01-0771080-51
Mfg Model #DescriptionPart Number
7108051LED Beacon Red, 14V (2.6” dia base)11-07686

Overview

71080 series LED beacons are FAA TSO compliant self-contained LED anti-collision lights (Ref. Class I - 150 effective candlepower). They are designed to replace a range of products. Refer to models and descriptions below.

ELECTRICAL:
Models: -01, -04, -05, -14, -15, -20, -51, -55: Ship with 12” Flying Leads Models: -07, -17, -08, -18: MS3102R10SL-3P Connector

MECHANICAL:
Models: -04, -14, -08, -18 are designed to replace existing beacons utilizing a 5-Hole mounting pattern on a 4.656 diameter bolt circle (Whelen 70285 series/7090501 series or 70900 with A440 adapter). Models: -05, -15, -07, -17 are 3 ¾” opening designed to fit inside an A440 mounting adapter, mounting holes to fit in place of rotating beacons, Whelen Model HRCFA, or 7090004, -05 series LED beacons.


California Prop 65 Warning Symbol

WARNING: This product may expose you to chemicals including Methylene Chloride, which is / are known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Specifications

  • Current: 0.87 amps average, 3.0 amps peak
  • Weight: 0.65 lbs. (295gm) (-01 & -51)
  • Lens: Clear polycarbonate
  • Dimensions: 2.6” (66mm) diameter, exposed height, 3.74” (95mm) (-01 & 51)

Documents

  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Submit a Review

Didn’t light up out of the box. Then couldn’t return it to spruce, had to deal with Whelen directly!

Andrew P Verified Purchase

Whelen 7108051 LED Red 14VDC
January 3, 2024

Mario N Verified Purchase

Whelen 7108051 LED Red 14VDC
December 19, 2023

The previous OEM bulb would put over 8a of draw on the electrical system and barely illuminate the red glass globe, this one is 10000% brighter, illuminates the inside of the hangar in broad daylight and draws such less power the instruments dont even register a drop. See and BE SEEN!

Barry M Verified Purchase

Whelen 7108051 LED Red 14VDC
August 16, 2023

Love the beacon. Really bright. Eliminated the old power supply.

Charles D Verified Purchase

Whelen 7108051 LED Red 14VDC
June 11, 2023

Very nice piece. However, you must engineer mounting it. Its a universal piece that requires fabrication to fit your aircraft. Not a big deal if you have the materials as I did (maintenance shop). Just be sure if you quote a customer on install the labor will be more than just replacement of the light.

Meridian A Verified Purchase

Whelen 7108051 LED Red 14VDC
December 7, 2022

Exceptionally bright. Also lowered the draw on my battery. Very pleased with how easily it installed on my Cessna 180

Chris M Verified Purchase

Whelen 7108051 LED Red 14VDC
October 25, 2022

The model -51 was the perfect fit for my PA39. Simply drill out the rivets and replace with 3-32 screws and nuts.

Leroy P Verified Purchase

Whelen 7108051 LED Red 14VDC
November 23, 2021

Very easy to install. Good quality and very bright.

Gary B Verified Purchase

Whelen 7108051 LED Red 14VDC
October 27, 2021

I love these LED beacons. So easy to install and in stock at aircraft spruce

Victory A Verified Purchase

Whelen 7108051 LED Red 14VDC
June 1, 2021

A great replacement for the old Grimes rotating beacon.

Alan S
April 26, 2021

Q&A

Submit

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Can you verify that 7108051 is the correct choice for a 1974 Cessna 182?

Per the manufacturer: the 7108051 is the correct part for your 182 if no modifications have been made to your aircraft.

Q: Does the LED beacon require the original flasher installed in the aircraft or does it have a flasher built-in?

Powered with aircraft power, no separate power supply required.

Q: What is the difference between Part #7108014 (LED red, 28VDC & 5 hole lower mount (150 ecp)) and Part #7108018 (LED red, 28 VDC, 5 hole lower mount (150 ecp))?

The 7108014 has 12" wire attached to it for installation, and 7108018 has an MS3102R10SL-3P connector wired to the unit for installation. Order 7108018 only if you already have this MS connector on your aircraft.

Q: When I put Beacon for Piper Cherokee this is what came up, would this fit a 1966 Piper Cherokee 180?

Per Whelen, yes part # 11-09909 would work in a Piper Cherokee.

Q: On the 7108055 unit does the adapter come with the unit?

Part number 11-09909 does have a 3-3/4" adapter with the unit.

Q: According to the manufacturer I should purchase part number 01-0771080-05 for my application. Which part number should I select from your table?

Whelen part # 01-0771080-05 is our part # 11-07689.

Q: Will the 7108055 fit a 1969 Cessna 182?

Per Whelen: That model year Cessna (if it is original) has the smaller fin cap which would accommodate the part# 11-07686 product.

Q: Are all parts (including pigtail assembly) included?

It will come with a length wire and connector as shown in the Installation PDF.

Q: 1965 Cessna 150F ser. 15062556. I have the rotating beacon with mirrors and motor. Which drop in beacon will work? Thanks

Yes, these are the same.

Q: What is the light output for the 7180 series 28 Volt red beacon - in lumens or candle power

The 01-0771080-00 has a certification of TSO-C96a Class I. The Class I means that this is certified to 150 Effective Candle Power output.
