Whelen Vertical Mount 14VDC Light 7155412

$295.00/Each
Part# 11-10686
MFR Model# 01-0771554-12
Whelen #DescriptionApprovalsPart Number
01-0771554-127155412 VERTICAL MOUNT, 14 VDC FAA TSO-C30c Type III, E-TSO11-10686

Overview

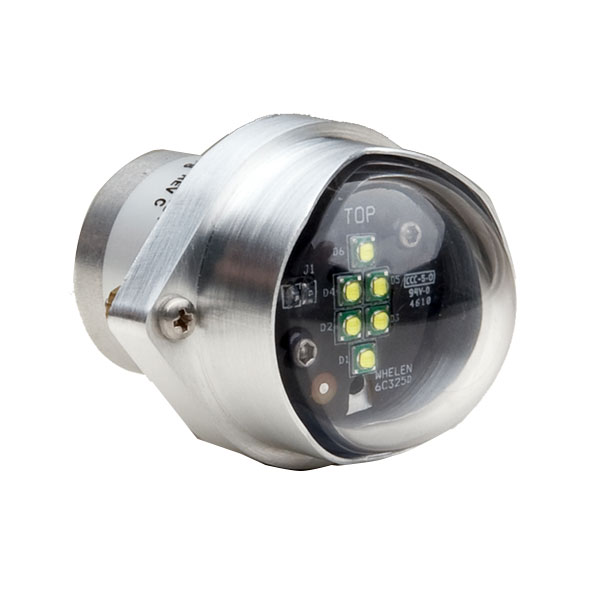

Whelen 71554 Series LED Tail Position Lights are an exact footprint for Whelen Models A555A and 71011 Tail Lights.

California Prop 65 Warning Symbol

WARNING: This product may expose you to chemicals including Methylene Chloride, which is / are known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Specifications

  • Drawing: 71554
  • Weight: 0.14 lbs
  • Dimensions H x W x L Exposed Height: 1.4 (35.56mm) x 1.59 (40.38mm) x 2.07 (52.57mm)
  • Current Draw: 0.13 Amps @ 28 VDC 0.26 Amps @ 14 VDC
  • Available Colors: Aviation White
  • Lenses Clear: Hardcoated Polycarbonate
  • STC: STC SA800EA.pdf
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Tom T Verified Purchase

Whelen Vertical Mount 14VDC Light 7155412

July 31, 2024

Much brighter than the old incandescent light it replaced. Easy install.

Robert K Verified Purchase

Whelen Vertical Mount 14VDC Light 7155412

December 12, 2023

Nice and bright. Comes with a plug, so once its wired in, if you ever need to change it out again, its plug in play!

David D Verified Purchase

Whelen Vertical Mount 14VDC Light 7155412

May 10, 2023

Just what I needed. Easy install, fits perfectly, and looks great.

Jeffrey R Verified Purchase

Whelen Vertical Mount 14VDC Light 7155412

December 1, 2022

Light installed easy, just had to hook up power and ground. It’s super bright!

Jon W Verified Purchase

Whelen Vertical Mount 14VDC Light 7155412

November 18, 2022

Easy swap for the legacy light, had to adjust the mounting screws a bit but that’s not the light’s fault.

Chris M Verified Purchase

Whelen Vertical Mount 14VDC Light 7155412

October 25, 2022

Easy to install and provides excellent light

Tim W Verified Purchase

Whelen Vertical Mount 14VDC Light 7155412

July 1, 2022

Spruce has always had stock. saves money due to longevity. Whelen has excellent support for there products.

Darryl F
April 23, 2021

Very bright - brighter than expected. Installation was easy. On our 74 Skylane, the wires were about 6-9 inches too short so they needed to be lengthened.

Kevin P
June 8, 2020

Easy install and perfect fit replacing my old Whelen tail light. Cessna 170.

Mike
March 20, 2020

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is the Whelen LED Tail Position Light 71554 series approved for use in certified aircraft?

Yes, this product is FAA TSO approved for use in certified aircraft.

Q: Does the Whelen LED Tail Position Light 71554 provide strobe as well as position?

Per the supplier: No. If they want the dual function they would need either 12V OR5001V (our part # 11-11975) or 28V OR5002V (our part # 11-11977).

Q: is this unit sealed/moisture resistant?

Per Whelen: Yes, the 71554 series lights are sealed to prevent water damage.

Q: I was wondering what the difference is between this 71554 series LED light and the Orion 500 light?

The Orion 500 is not availabe in a horizontal mount configuration. The Whelen TDS refer to the 11-10682 as a taillight assembly, and the TDS on the Orion 500 as a tail position/anti-collision light assembly.

Q: What is the difference between a vertical and horizontal mount on the Whelen LED 71554 series lights? I have a Cessna 172 M model with the tail nav light on the upper rudder tip.

The vertical & horizontal is in reference to the orientation of the mounting holes/screws.
Vertical = 12 & 6 o'clock
Horizontal = 9 & 3 o'clock positions
Typically 90% of installs require the vertical mount.

Q: May I use the WHELEN LED TAIL POSITION LIGHTS 71554 SERIES in my PA-38 Tomahawk to replace the normal one? Piper p/n: 472 736  * LIGHT - Tail (A-2064-1073).

Yes, that will fit the same footprint.

Q: What is the difference between the 28v vertical mount (Spruce 11-10683) and the 28v (Cessna) 28v vertical mount (Spruce 11-10684) ? I have a Cessna T-310P.

11-10684 has a different electrical hookup. The vendor recommends 11-10683 since it is more of a universal electrical install.

Q: Are all parts (including pigtail assembly) included?

It will come with a length wire and connector as shown in the Installation PDF.

Q: How many hours does this 71554 series LED lamp last?

71554 series carries a 5 year warranty. Projected life is 10,000 hours.
