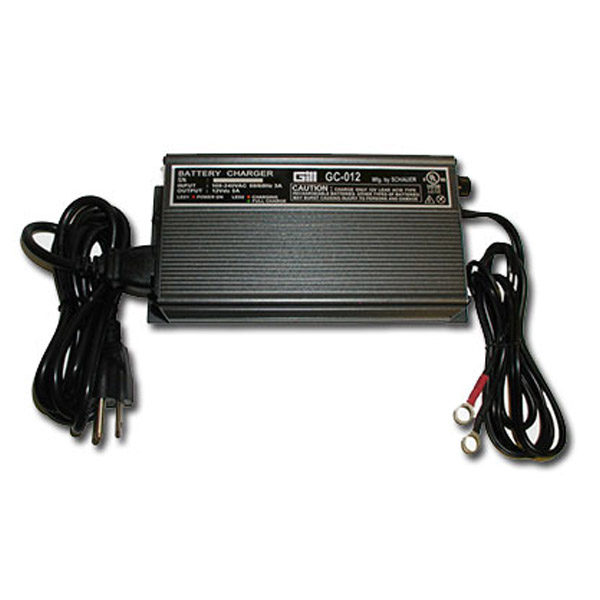

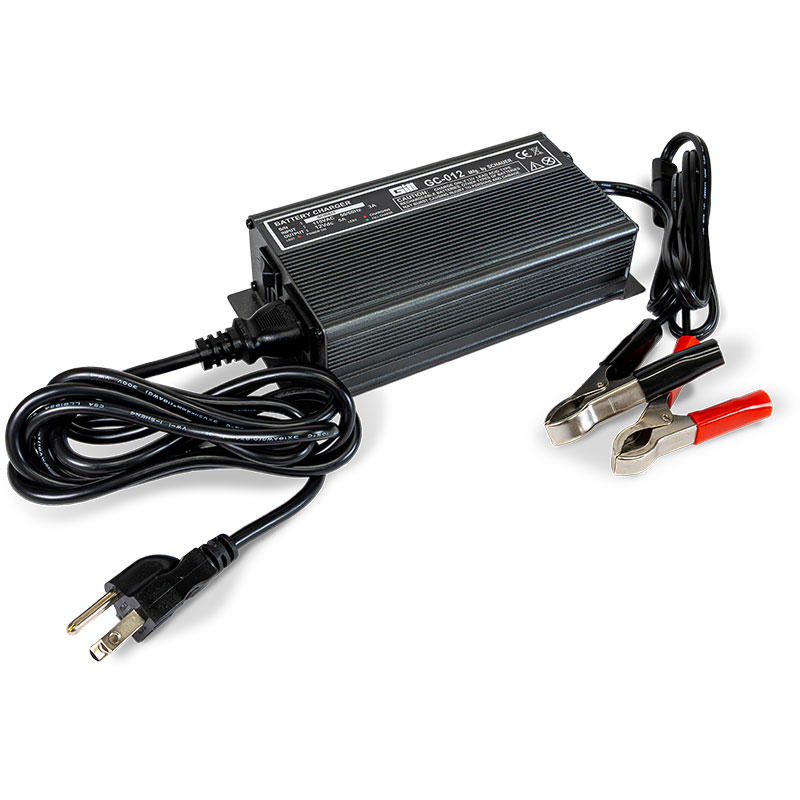

Gill GC-012 12VDC Charger 110V
MFR Model# 60148
FREE Shipping
Overview
|
IMPORTANT: These chargers will only function when connected to 110-120V input. Do not connect them to 220-240V or you may damage the charger. The Gill GC-012 VDC Charger is lightweight and is built in a high strength aluminum case. This is fully automatic and provides a 3 stage charger can be left on the battery for long periods. The LED's light shows the status of when the power is on, charging, and when the battery is charging. The circuit protection is reversed polarity and short circuit protected (fused). The power cord length is 6-feet and a 4-foot charge cord with alligator clips included. The Charge control is modified to a constant current charge and a constant finishing voltage, then to a float standby. The Gill-012 VDC Charger is UL and CE approved. The charger is supported by the manufacture Gill Batteries with a 2-year warranty. |
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Features
- Light weight / High strength aluminum case
- Fully automatic: 3 stage charger can be left on the battery for long periods
- Charge Status LED's: Power on, charging, and full charging
- Circuit protection: Reverse polarity and short circuit protected (fused)
- UL and CE approved
- Power cord length 6 feet and 4 foot Charge cord with ring terminals included
- Charge control: Modified constant current charge to a constant finishing voltage, then to a float standby
- Supported with a 2 year Warranty
Specifications
- Input: 100-120 VAC @50/60 HZ 3 Amps
- Output: 12 VDC 5 Amps
- Dimensions: 6.5"W x 3.5"H x 1.8"D
- Weight: 1.8 pounds
Documents
- Operating Instructions (PDF)
Reviews
Works great, replacing my Battery Minder with this one.
Verified Purchase
Gill Battery Charger 12V Gc-012
Got this as a gift and Im real happy! It works like a charm. Inspected the output prior to using - and it was right in accordance with the battery CMM. I read the review about the alligator clamps, but I dont use the leads like jumper cables, so theyre just fine for me. Also read the review by Dan J. He may have the 24 volt version and thats what was boiling off the electrolyte - or his battery had set discharged for a long time and couldnt recover. I love mine..... Thanks honey
Bought it based on the Gill battery recommendations. So far so good. Runs quiet and pretty plug and play The quality is very nice compared to those cheap chargers.
Great charger for the GIL batteries! It’s a quality product that has a switch to turn off/on and a cooling fan. Yellow light when charging and green when done.
The alligator clips are so cheaply made it is extremely difficult to keep them attached to the battery terminals. The cord is also cheaply made. It likely contributes to the problem with keeping clips connected. I recommend choosing something else.
This was a second purchase because the first failed after 2 year warranty. The battery it charged, eventually died. The Gill #7035-28 expanded. Im assuming overcharge. Teledyne has been unresponsive in phone calls and emails. I do not recommend!!
Verified Purchase
Gill Battery Charger 12V Gc-012
I bought the Gill battery charger for my G-35 battery less then a year ago. The documents state that the unit can be left on for extended periods of time. I charged my battery for a week and it boiled all the distilled water from the battery. The battery was destroyed and having difficulties with Gill to warranty the charger.
Q&A
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Yes, the GC-012 is safe for maintaining and charging any Gill 12v battery.
Per the supplier: Yes, this can be used to activate a new 12v Gill battery.
Per Gill: It is really only meant for charging and maintaining 12v batteries, not as a GPU. It is much too small for that type of work.
No, the manufacturer does not recommend leaving the Gill GC-012 (11-09985) connected all winter.
Per supplier: Yes, it will do exactly that.
It does not. It's a float charger so it starts out charging the battery to 14 volts and then holds it at a constant 13.5 volt charge so it does not need to desulfate.
Thank you for your suggestion. We have updated the Specifications to include your reference from the manual.
The GC-012 and GC-024/E can be connected/charging/maintaining a battery for up to six months. This information can be found in Gills CMM, Section 5.4 Float Charging.
Yes, you can use P/N# 11-14350 or 11-10570.
Input Voltage 100-220V
Input Frequency 50/60Hz
Output Current 5A
Output Equalizer Voltage 14.6VDC 1 0.2V
Output Float Voltage 13.7VDC 1 0.2V
Dimensions (L, W, H, inches) 7.3 x 3.5 x 1.9
Weight 1.8 lb
