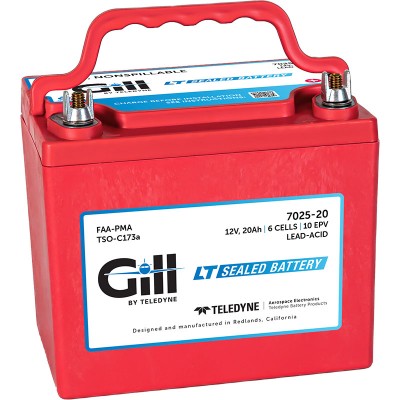

Gill LT 7025-20 Sealed Lead Acid Battery FAA PMA

$375.00/Each
Quantity
Add to Wishlist
Part# 11-13274
MFR Model# 7025-20

Overview

  • The 7025-20 is a “sealed lead acid battery upgrade” to the popular Gill® G-25
  • Maintenance Free – Shipped Fully Charged and No Electrolyte or Water Required
  • Non-Spillable and Proven for Aerobatic Maneuvering
  • 2 Year Factory Warranty After Installation
  • Robust Starts, Higher Residual Power & Faster Re-Charge Times
  • First Capacity Check Not Required Until 18 Months/1800 Hours
  • Cost Competitive and Best Shelf Life in Lead Acid Chemistry
  • Advanced Valve Regulated Lead Acid (VRLA) Design
  • FAA/PMA Approved, TSO Authorized and Tested to DO-160E
  • LT® Series Batteries Are Fully Recyclable
  • LT® Series Batteries Ship Hazmat Exempt
Start strong with the Gill® 7025-20 for your 12V piston powered aircraft. See the application chart to locate your aircraft and review your battery options.

Battery Type Voltage Amp Hours Battery Diagram PDF
7025-28
Sealed Lead Acid
12 20 Download Full Battery
Specification

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Application Chart

Manufacturer Model PMA SUP. #
Aerostar PA-60-600, PA-60-601, PA-60-601P, PA-60-602P, PA-60-700P 64
American Champion 7ACA, 7ECA, 7GCBC 64
Beech 19, 23, 24, 55, 58, 77 11, 64
Beechcraft 19A, B19, 23, A23, A23A, B23, C23, A24, A24R, B24R, C24R, E33, E33A, E33C, F33, G33, 35-33, 35-A33, 35-B33, 35-C33, 35-C33A, D55, D55A, E55, E55A, 58, 58A, 58P, 58TC, G58, 77, 95, B95, B95A, D95A, E95, 95-55, 95-A55, 95-B55, 95-C55, 95-C55A 11, 64
Cessna 120, 140, 150, 150A, 150B, 150C, 150D, 150E, 150F, 150G, 150H, 150J, 150K, 150L, 150M, A150K, A150L, A150M, 170, 172, 172B, 172C, 172D, 172E, 172F (USAF T-41A), 172G, 172H (USAF T-41A), 172I, 172K, 172L, 172M, 172 N, F172D, F172E, F172F, F172G, F172 H, F172K, F172L, F172M, F172N, 175, 175B, 175C, P172D, 177, 177A, 177B, 188, 188A, 188B, T188C, 310, 310B, 310C, 310D, 310F, 310G, 310H, E310H, 310I, 310J, 310J-1, E310J, 310K, 310P, 310Q, 320, 340 11, 64
Commander 112, 112TC, 112B, 112TCA 64
Piper (Aerostar 600) PA-60-600, (Aerostar 601) PA-60-601, (Aerostar 601P) PA-60-601P, (Aerostar 602P) PA-60-602P 11, 64
Piper PA-11, PA-36-285, PA-36-300, PA-36-375, PA-38-112, PA-46-350P 11, 64
Piper PA-11, PA-22-108, PA-22-135, PA-22-150, PA-22-160, PA-23-235, PA-23-250, PA-28-140, PA-28-150, PA-28-151, PA-28-160, PA-28-161, PA-28-180, PA-28-181, PA-28-201T, PA-28-235, PA-28-236, PA-28R-180, PA-28R-200, PA-28RT-201, PA-28RT-201T, PA- 32-260, PA-32-300, PA-32R-300, PA-32RT-300, PA-32RT-300T, PA-36-285, PA-36-300, PA-36-375, PA-38-112 11, 64
Socata, S.A. GA- 7 64
True Flight AA-1, AA-1A, AA- 1B, AA-1C, AA-5, AA-5A, AA-5B 64
  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Site said it was back ordered, but I ordered it anyway. It shipped immediately! Had it in a couple of days. Installed in a my PA28-161. Hopefully it lasts miss than two years. Time well tell.

Travis S Verified Purchase

Gill Sealed Battery 7025-20

April 20, 2023

1975 Cessna 172M. Wing nuts on the posts make the battery box lid tilted a bit. Nothing dangerous, but the next time I pop the top cowling Im going to change the wing nuts to the brass bolts that came with the battery. That should allow the box lid to fully close.

Tom M Verified Purchase

Gill Sealed Battery 7025-20

February 17, 2023

Prices are high for what size it is,but that’s aviation.It works so far. Came in a gigantic box I thought I was getting a washing machine.

John D Verified Purchase

Gill Sealed Battery 7025-20

February 4, 2023

Perfect score! Ordered late in the day and was delivered as promised!

Wings E Verified Purchase

Gill Sealed Battery 7025-20

January 3, 2023

I recently ordered 2 of these batteries as replacements for 2 7025-20 batteries because they had dropped below 60 percent capacity and are 6 years old. I purchased theses batteries because of the reliability of the last set.

Russell H Verified Purchase

Gill Sealed Battery 7025-20

October 11, 2022

Quick delivery, just installed great starting power. Hope they last.

Jerry A Verified Purchase

Gill Sealed Battery 7025-20

August 2, 2022

I bought this battery after talking to technical support at Gill, very helpful people willing to help. I am very pleased with this new battery design.

Eric C Verified Purchase

Gill Sealed Battery 7025-20

July 24, 2022

Immediate difference. Of course got 7 years from the previous Gill so cant complain about that.

Glenn H Verified Purchase

Gill Sealed Battery 7025-20

July 12, 2022

This battery is awesome. I just replaced one with the same model. The battery I had lasted 5 years. Very good quality.

Huge T Verified Purchase

Gill Sealed Battery 7025-20

June 23, 2022

Quick turn, cant complain. Came full of electrons, ready to use.

Eugene R Verified Purchase

Gill Sealed Battery 7025-20

March 25, 2022

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: How much does the Gill LT 7025-20 sealed battery weigh?

This battery weighs 23 lbs.

Q: Do I need to charge the Gill LT 7025-20 sealed battery before I use the new battery?

These batteries will ship charged and ready to go out of the box.

Q: Is this the replacement battery for the G-25S?

Yes, this is the new LT series Gill that replaces the old G-25S. The applications are the same for both batteries.

Q: Where do I find the voltage for the LT 7025-20 battery?

It is a 12V battery. The information is listed in the application guide tab on our web site.

Q: Is there a maintainer that is recommended to be used on the Gill line of batteries? Particularly this battery, LT 7025-20?

Gill offers a 12V charger. Our part number is 11-09985. See Accessories tab.

Q: What is the CCA for this Gill LT 7025-20 battery?

The Gill batteries are now starting to be changed from CCA to now being rated in IPP and IPR ratings.
IPP:875 amps @ 75 Degrees F / 23 Degrees C | 635 amps @ 0 Degrees F / -18 Degrees C | 440 amps @ -22 Degrees F / -30 Degrees C
IPR: 700 amps @ 75 Degrees F / 23 Degrees C | 430 amps @ 0 Degrees F / -18 Degrees C | 320 amps @ -22 Degrees F / -30 Degrees C

Q: What are the terminal diameters on the Gill LT 7025-20 batteries?

The diameter is 15/16-18.

Q: What is a capacity check at 18 months?

After installation of a new battery, Gill requires a capacity check to be performed at 1,800150 hours or 18 months, whichever comes first, with subsequent capacity checks performed every 900150hours or 9 months. Please refer to aircraft manufacturers guidelines for further clarification.

Q: Can this Gill LT 7025-20 battery be installed on C172A?

Yes, this 7025-20 battery fits the Cessna 172 (172 A - R, 172 S)

Q: Is this Gill LT 7025-20 an AGM or gel cell?

All Gill LT sealed batteries are AGM.
