Frequency 108-118 MHz Dual VOR coupler allows the simultaneous use of two VOR receivers from one VOR antenna. Compact design makes for easy installation. |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |

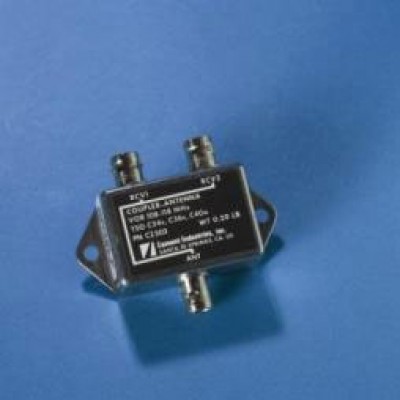

MODEL CI 502 COUPLER VOR | |
Electrical | |
Frequency | 108-118 MHz |
VSWR | 1.5:1 Maximum |
Insertion Loss | 0.5 dB Maximum |
Isolation | 20 dB Minimum |
Impedance RF | 50 Ohms |
Mechanical | |
Weight | 0.25 lb. Maximum |
Height | 0.88 in. Maximum |
Finish | Aluminum |
Material | Die Cast Aluminum |
Connector | BNC (Female) |
Environmental | |
| Internal Mounting |
Federal Specifications | |
FAA TSO | C34c, C36c, C40c |
