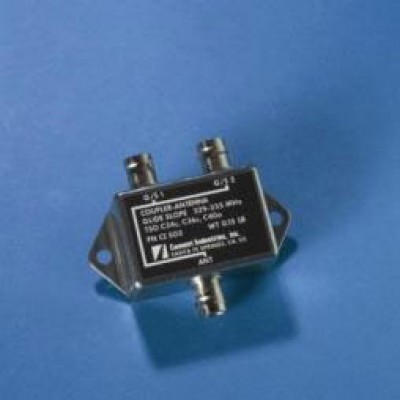

Frequency 329-335 MHz Dual glide slope coupler designed to allow the operation of two glide slope receivers from one glide slope antenna. Compact design makes installation easy. |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
MODEL CI 503 COUPLER VOR | |
Electrical | |
Frequency | 329-335 MHz |
VSWR | 1.5:1 Maximum |
Insertion Loss | 0.5 dB Maximum |
Isolation | 20 dB Minimum |
Impedance RF | 50 Ohms |
Mechanical | |
Weight | 0.20 lb. Maximum |
Height | 0.88 in. Maximum |
Finish | Aluminum |
Material | Die Cast Aluminum |
Connector | BNC (Female) |
Environmental | |
| Internal Mount |
Federal Specifications | |
FAA TSO | C34c, C36c, C40a |
