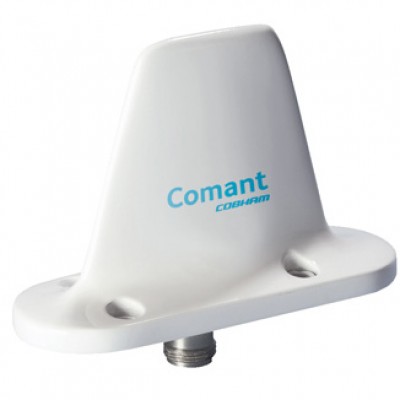

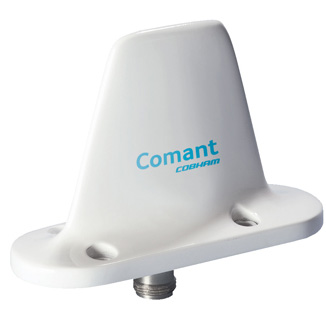

Frequencies Covered L Band / UHF blade antenna designed for high performance aircraft. Low profile, light weight antenna and is packaged in a molded body with metal mounting base to ensure stable environmental performance and resistance to vibration, rain erosion and cleaning solvents. Features vertical/omnidirectional pattern, wide band/high efficiency electrical performance and DC grounding for lightning protection. Note: Comant Antennas no longer come with a gasket or template. Must order PN 09-05579 separately. |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Electrical | |
Frequency | 806-960 MHz & 1030-1090 MHz |
VSWR | 1.75:1 @ 806 to 960 MHz 1.5:1 @1030 to 1090 MHz |
Polorization | Vertical |
Radiation Pattern | Equivalent 1/4 Wave Stub |
Impedance | 50 Ohms |
RF Power | 100 Watts Average |
Mechanical | |
Weight | 0.32 lb |
Height | 3.25 inches |
Material | High Density Polyurethane |
Finish | White Polyurethane Enamel |
Connector | TNC |
Enviromental | |
Airspeed | 600 Kts TAS @ 25,000 ft. |
Temperature | -55 to 70 C |
Atitude | 50,000 ft |
Federal Specifications | |
FAA TSO | C74c, Class 1A |
Enviromental RTCA | DO-160C |
