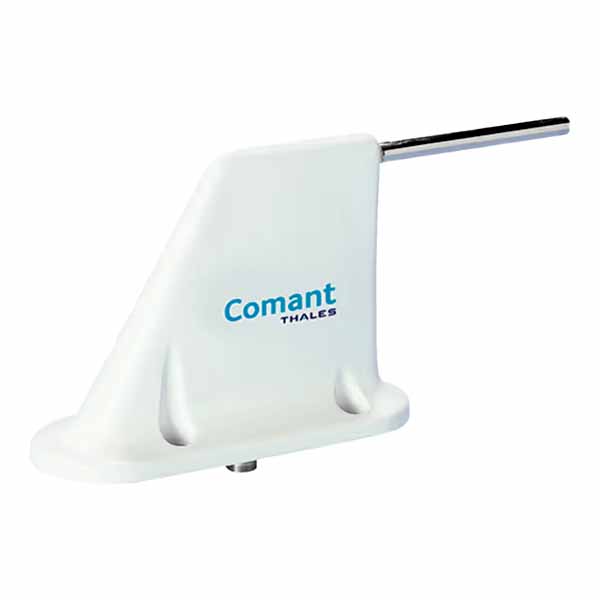

Frequency 406-512 MHz Wide band UHF antenna designed for high-performance aircraft over the full frequency range of 406-512 MHz. Low profile, blade-type antenna is encased in a low drag, low weight molded body to ensure high reliability. The CI 275 comes standard with a BNC connector. Other connectors available. See order option chart. Color is white standard. Note: Comant Antennas no longer come with a gasket or template. Must order PN 09-05579 separately. |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
MODEL CI 275 SERIES UHF ANTENNA | |
Electrical | |
Frequency | 406-512 MHz |
VSWR | 2.0:1 Maximum |
Polarization | Vertical |
Radiation Pattern | Equivalent of ¥ë / 4 Stub |
Impedance | 50 Ohms |
Power RF | 50 Watts Average |
Mechanical | |
Weight | 0.5 lb. Maximum |
Height | 3.5 in. Maximum |
Finish | Polyurethane Enamel |
Material | Lexan Housing |
Connector | BNC (Female) |
Environmental | |
Temperature | -55¨¬C to +70¨¬C |
Altitude | 50,000 ft. |
Air Speed | 600 Knots TAS @ 25,000 ft |
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Yes, the Comant CI-275 works in the same applications as the Cobham CI-275. They are interchangeable.
