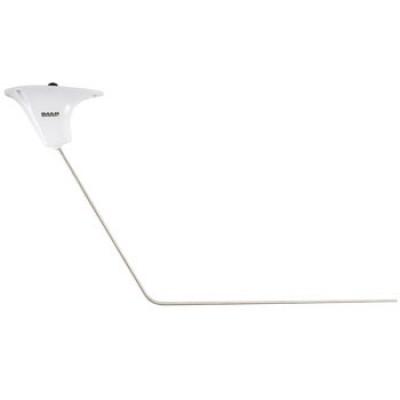

RAMI AV-535 Bent Whip Antenna

$325.00/Each
Quantity
Add to Wishlist
Part# 11-10845
MFR Model# AV-535

Overview

The AV-535 is a “Bent Whip” antenna suitable for belly mounting. It is designed to operate in the public service and business bands. The antenna is rated at speeds up to 350 mph and altitudes up to 50,000 feet. It is a direct replacement for the CI 292-3.

Frequency: 138-174 MHz

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

  • Application: FM Extended band
  • Frequency: 138-174 MHz
  • Impedance: 50 Ohms Nominal
  • VSWR: 3.0:1 Maximum
  • Polarization: Vertical
  • Pattern: Omni-Directional
  • Connector: “BNC” Female
  • Weight: 0.50 lbs. Maximum
  • FAA TSO: None
  • Color: Gloss White

Reviews

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: I would like to see how close to other Com antennas I can mount the Rami AV-535 Antenna, where can I find the mounting instructions?

The mounting instructions can be found in the documents tab of this page.

Q: The document on the product page does not have instllation instructions.

We have added the install instructions as it's own PDF for download on the web page.
