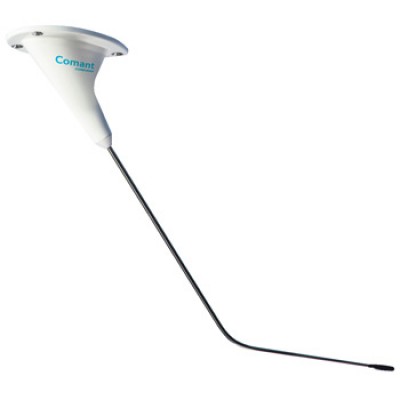

Comant VHF Communications Antenna CI-292-2
MFR Model# CI-292-2
FREE Shipping
Overview
|
Frequencies Covered Identical to the CI 292-1 except that it provides a stainless steel bent-whip radiator which makes it ideal for helicopters and bottom mounting underneath fixed wing aircraft. The CI 292-2 has been re-tested and upgraded to the new RTCA DO-160D environmental requirements and offers the 118 to 137 MHz frequency associated with DO 186A MOPS. Note: Comant Antennas no longer come with a gasket or template. Must order PN 09-05579 separately. Applications |
Click here to go to Cobham Rebate Website for full Terms and Conditions. |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Specifications
MODEL CI 292-2 VHF ANTENNA | |
Electrical | |
Frequency | 118-137 MHz |
VSWR | 3.0:1 Maximum |
Polarization | Vertical |
Radiation Pattern | Omnidirectional |
Impedance | 50 Ohms |
Power | 50 Watts |
Mechanical | |
Weight | 0.5 lb. Maximum |
Height | 8.5 in. Maximum |
Material | Cast Housing/StainlessWhip |
Finish | Polyurethane Enamel |
Connector | BNC (Female) |
Environmental | |
Temperature | -55ºC to +85ºC |
Altitude | 50,000 ft. |
Air Speed | 250 Knots TAS |
Federal Specification | |
RTCA Environmental | DO-160D |
FAA TSO | C37d, C38d |
Q&A
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
It is mainly the size of the antenna and the airspeed it can withstand. The CI122 can withstand up to 350 knots, where the CI292-2 withstands up to 250 knots.
