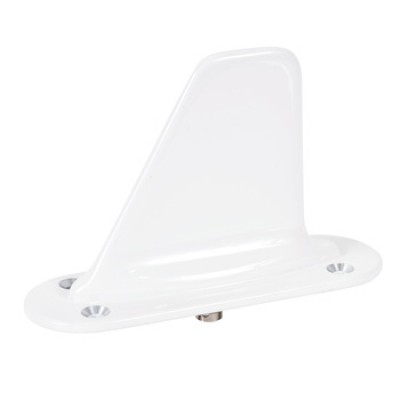

Comant DME Transponder Antenna Ci -105-6 / CI-105-7

Select Connector:
BNCC
Quantity
Add to Wishlist

Overview

Frequency • 960-1220 MHz
The Comant CI 105-6, and CI 105-7

Comant CI 105-3 DME/Transponder antenna. Identical to the CI 105 in operating characteristics. Ant signed for external applications using a three hole flange mounting.

Note: Comant Antennas no longer come with a gasket or a template. Must order PN 09-05579 separately.


California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

MODEL CI 105-6 & CI 105-7 DME/ TRANSPONDER
Electrical
Frequency
960 to 1220 MHz
VSWR

1.5:1 960 to 1220 MHz
1.3:1 1025 to 1150 MHz

Polarization
Vertical
Radiation Pattern
Equivalent to 1/4 Stub
Impedance RF
50 Ohms
Resistance DC
Open Circuit
Power RF
2.5 KW Peak
Mechanical
Weight
0.40 lb. Maximum
Height
3.31 in. Maximum
Material
Molded Radome
Finish
Polyurethane Enamel
Connector

CI 105-6: BCN
CI 105-7: C

Environmental
Temperature
-54ºC to +55ºC
Altitude
70,000ft.
Air Speed
400 Knots TAS at 25,000 ft.
Federal Specifications
RTCA Environmental
DO-160C
FAA TSO
C66b, C74c
RTCA MOPS
DO-144, DO-189

Drawing

  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Perfect Antenna

Thorsten F Verified Purchase

Comant CI-105-6 Dme Transponder Antenna BNC

April 4, 2022

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Do you have a drawing or hole pattern diagram for the CI-105-6?

Yes, we have added the hole pattern drawing to the "Drawing" tab of this web page. Please review it there.
