RAMI AV-15 Antenna

$207.95/Each
Quantity
Add to Wishlist
Part# 11-06993
MFR Model# AV-15

Overview

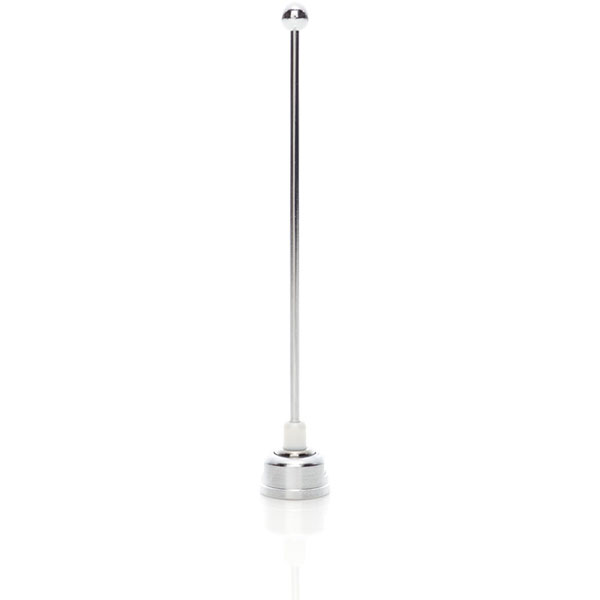

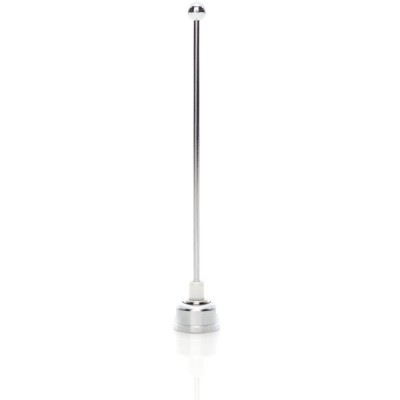

The AV-15 is used with aviation, land mobile radio and flight phone bands. The durably constructed chrome-plated phosphor bronze whip is set in a Teflon™ insulator and the chrome-plated ball tip provides low noise static discharge. The antenna is designed to operate at speeds up to 350 mph and altitudes of 50,000 ft. It has a drag force of 0.75 lb @ 250 mph.

Download the product outline in PDF format.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

  • Application: Airborne Communications
  • Frequency: 450 to 470 MHz
  • Impedance: 50 Ohms Nominal
  • VSWR: 1.5 to 1 Maximum
  • Polarization: Vertical
  • Pattern: Omni-Directional
  • Connector: Type "N" Female
  • Max Weight: 2.5 oz
  • Max Height: 6-1/4"
  • RF Power Capacity: 100 Watts

Reviews

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Does this item come with a 8130-3 and / or manufacturer's C of C? Regarding RAMI AV-15 Antenna

This shipment will include domestic 8130-3 and C of C.
