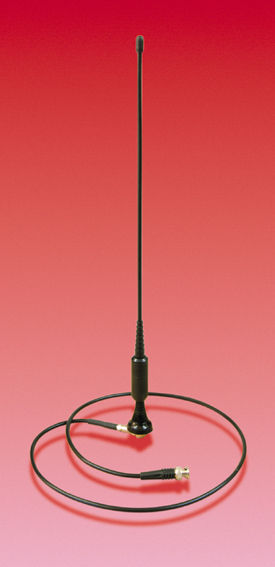

Lynx Micro System Short Flexible VHF Antenna

$135.80/Each
Quantity
Add to Wishlist
Part# 11-05384
MFR Model# M090

Overview

The Short, 14", Flexible VHF Antenna is tuned to the frequency range 118-137MHz for use with airband radios.

The antenna is designed for mounting into the metal or composite skin of an aircraft For use in glass fibre structures. the antenna is supplied with a self adhesive aluminium foil ground~plane.

To minimise the length of the antenna element. the design incorporates a base tuning coil. The short flexible element makes the antenna suitable for mounting on the nose or underneath many aircraft.

The lead is fitted with an FME plug at the antenna feed and a BNC plug for direct connection to a radio. The lead is one metre long (three feet).


California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

  • Short flexible design
  • Optimised for airband frequency
  • High quality crimped FME and BNC connectors

Schematic

  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Mounted inside fuselage of a S-1S behind the seat, works perfectly!

Mike H Verified Purchase

Lynx Micro Pilot Systems VHF Short Flexible Antenna

September 25, 2024

Looks like a nice antenna. The dimensions indicate it is 14 tall but with all the base fittings it is about 15-1/2 tall from the mounted surface. Too tall to fit under my turtledeck where I only had 14-1/2 of clearance.

J&d P Verified Purchase

Lynx Micro Pilot Systems VHF Short Flexible Antenna

March 8, 2024

This upgraded the system for my ultralight and is working great! Perfect!

Jeff S Verified Purchase

Lynx Micro Pilot Systems VHF Short Flexible Antenna

May 26, 2023

This antenna worked great with my ICOM A25C radio.

Kevin D Verified Purchase

Lynx Micro Pilot Systems VHF Short Flexible Antenna

September 22, 2021

Great product. A Lightweight application I need for the Rans S9 Chaos.

Mark C
November 15, 2019

Nice installation on my bi-plane.

Dennis M
October 3, 2019

Easy to install, but panel thickness limited to about 5mm otherwise you cant fit the gasket and skirt on the outside. I added more Aluminium tape for the groundplane- that supplied was probably adequate, but a bit on the sparse side. Pre-terminated cable was very handy. Reception excellent.

Sr & Verified Purchase

Lynx Micro Pilot Systems VHF Short Flexible Antenna

June 25, 2022

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What is the overall length of the antenna and can it be tuned by trimming the antenna?

The antenna is about 14 inches long and cannot be cut.

Q: Will this antenna work inside a carbon fiber aircraft like the Lancair Legacy?

Yes, this antenna will work through wood & fabric and composite aircraft like carbon fiber.

Q: Can the Lynx VFH antenna be mounted inside a wood and fabric wing or must it be mounted externally?

As long as the aircraft is of a wood and fabric or composite design you can mount your Com antenna inside the aircraft.

Q: I have a 100 MPH plane, will this antennae bend back more than 30 degrees if installed on the top of the plane and at 100 MPH?

Lynx only recommends installing this antenna on the nose or belly of the aircraft. There has been no testing done on the degrees of bend at 100mph.

Q: Can the rubber antenna be detached from the antenna base so that I can cover the aircraft for storage without damaging the antenna?

The VHF Antenna has a flexible antenna element which screws onto the installed antenna base. This makes it easy to fit and remove.

Q: Can it be mounted inside a tube and fabric plane such as a pacer?

Yes, this can be used in a fabric aircraft.

Q: Can this antenna be bent to a 45 degrees or more for mounting on the belly of a low aircraft?

Per the installation manual: the maximum is 30 degree bend.

Q: Can this be installed on certified aircraft?

No, this antenna is not FAA Approved. It is intended for installation in experimental aircraft only.

Q: How big is the included aluminum foil ground plane?

The antenna comes with two lengths of adhesive foil ground plane, 290mm each, to be installed in a cross pattern.
