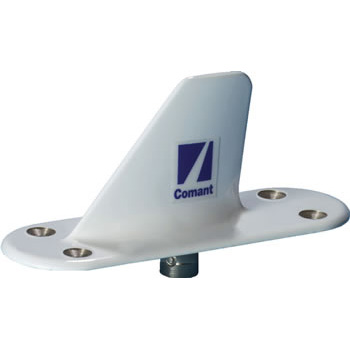

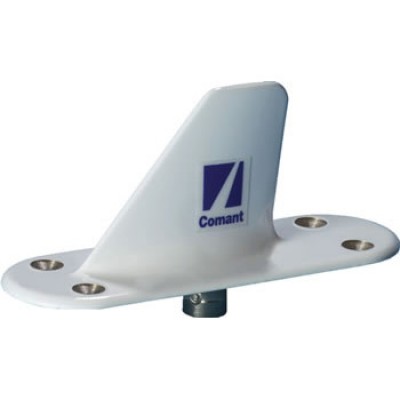

Frequencies Covered All metal, low profile antenna is designed for business jet and commercial high speed aircraft. With a popular four hole mount and connector with short path to ground, this antenna is ideally suited for those aircraft equipped with standard and Mode S transponders. Tough one-piece construction provides 175 lbs. side load capability. Moisture failure is preventedwith completely sealed construction. Note: Comant Antennas no longer come with a gasket or template. Must order PN 09-05579 separately. |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
MODEL CI 110-41-30 | |
Electrical | |
Frequency | 960-1220 MHz |
VSWR | 1.5:1 Maximum |
Polarization | Vertical |
Impedance RF | Omnidirectional- Equivalent to 1/4 Wave Stub |
Radiation Pattern | 50 Ohms |
Resistance DC | Short Circuit |
Power RF | 3.0 KW Peak / 100 Watt Average |
Mechanical | |
Weight | 0.25 lbs |
Height | 2.25 Inches |
Finish | Gloss White Polyurethane Enamel |
Connector | C (Female) |
Environmental | |
Temperature | -55ºC to +85ºC |
Altitude | 70,000 ft. |
Airspeed | 600 KTAS at 25,000 ft. |
Federal Specifications | |
FAA TSO | C66c, C74c, C112 (Class 1A) |
RTCA Envrionmental | DO-160D |
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Part # 11-01802 if you are using RG400 or 142 coax and part # 11-03992 if you are using RG58.
