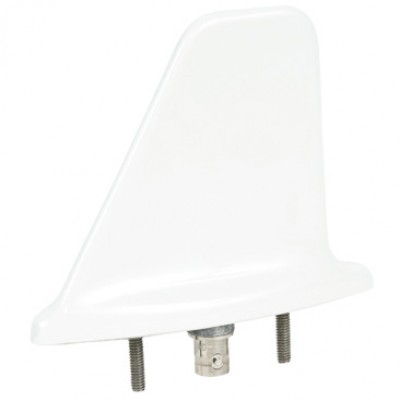

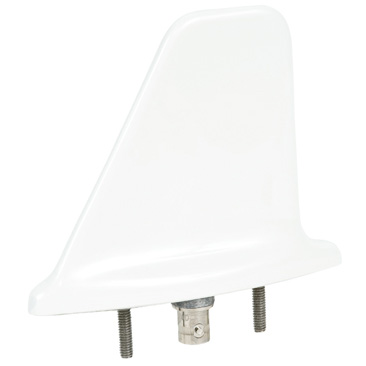

Comant DME / Transponder Antenna CI-105-16
MFR Model# CI-105-16
FREE Shipping
Overview
|
Frequency • 960-1220 MHz Broadband and rugged antenna designed for DME or transponder use. The CI 105-16 was designed specifically for the Honeywell Bendix- King™ KA60. This unit offers the extended length two-stud mounting found on the KA60. Tested to the tougher DO-160D environmental requirements, this antenna offers the best in ruggedness and performance. Note: Comant Antennas no long come with a gasket or a template. Must order PN 09-05579 separately. |
Click here to go to Cobham Rebate Website for full Terms and Conditions. |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Specifications
MODEL CI 105-16 DME/ TRANSPONDER | |
Electrical | |
Frequency | 960 to 1220 MHz |
VSWR | 1.5:1 960 to 1220 MHz |
Polarization | Vertical |
Radiation Pattern | Equivalent to 1/4 Stub |
Impedance RF | 50 Ohms |
Resistance DC | Open Circut |
Power RF | 2.5 KW Peak |
Mechanical | |
Weight | 0.2 lb. Maximum |
Height | 3.23 in. |
Material | Molded Radome |
Finish | Unpainted White Valox Shell |
Environmental | |
Temperature | -55ºC to +85ºC |
Altitude | 70,000ft. |
Air Speed | 400 Knots TAS at 25,000 ft. |
Federal Specifications | |
RTCA Environmental | DO-160C |
FAA TSO | C66b, C74c |
Reviews
Arrived very fast. Fit and worked as it should.
Verified Purchase
Comant CI-105-16 Dme Transponder Antenna BNC
Verified Purchase
Comant CI-105-16 Dme Transponder Antenna BNC
Fit perfectly to replace the original king antenna on my aircraft.
Verified Purchase
Comant CI-105-16 Dme Transponder Antenna BNC
Easy to install, appears well made. Awaiting transponder recertification.
Verified Purchase
Comant CI-105-16 Dme Transponder Antenna BNC
Verified Purchase
Comant CI-105-16 Dme Transponder Antenna BNC
Verified Purchase
Comant CI-105-16 Dme Transponder Antenna BNC
Q&A
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
As the Comant DME / Transponder CI-105-16 antenna is a TSO'd product, this can be shipped with an 8130-3 form for an additional fee. Please include the request for this form with your customer sales representative or note the request in the special instructions page for an online order.
1.75 inches.
Per the installation manual, the manufacturer recommends the AV-74.
The GDL 82 uses the existing transponder antenna with your current transponder. It the antenna must be replaced, the specifications for the transponder must be followed.
Approx 0.70 inch.
Yes this will work.
Any BNC male would work with this antenna, but since this is certified you would use RG400 cable. The correct BNC for that cable is our part number 11-01802.
