Homebuilders Throttle Quadrants Model 5

From $71.75 to $119.75
Type Description Part No. Price Buy
Reversing InternalSingle Lever Quadrant
05-02436
$75.75
Quantity
Reversing InternalSingle Lever Quadrant w/T-Bar
05-02436-1
$88.75
Quantity
Reversing InternalSingle Lever Quadrant w/Friction
05-02439
$86.75
Quantity
Reversing InternalSingle Lever Quadrant w/Friction, w/T-Bar
05-02439-1
$103.75
Quantity
Reversing InternalTwo Lever Quadrant
05-02437
$82.75
Quantity
Reversing InternalTwo Lever Quadrant w/T-Bar
05-02437-1
$93.90
Quantity
Reversing InternalTwo Lever Quadrant w/Friction
05-02440
$100.75
Quantity
Reversing InternalTwo Lever Quadrant w/Friction, w/T-Bar
05-02440-1
$112.75
Quantity
Reversing InternalThree Lever Quadrant
05-02438
$86.75
Quantity
Reversing InternalThree Lever Quadrant w/T-Bar
05-02438-1
$103.75
Quantity
Reversing InternalThree Lever Quadrant w/Friction
05-02441
$101.75
Quantity
Reversing InternalThree Lever Quadrant w/Friction, w/T-Bar
05-02441-1
$119.75
Quantity
Non-Reversing InternalSingle Lever Quadrant
05-02442
$71.75
Quantity
Non-Reversing InternalSingle Lever Quadrant w/T-Bar
05-02442-1
$88.75
Quantity
Non-Reversing InternalSingle Lever Quadrant w/Friction
05-02445
$86.75
Quantity
Non-Reversing InternalSingle Lever Quadrant w/Friction, w/T-Bar
05-02445-1
$103.95
Quantity
Non-Reversing InternalTwo Lever Quadrant
05-02443
$77.75
Quantity
Non-Reversing InternalTwo Lever Quadrant w/T-Bar
05-02443-1
$93.90
Quantity
Non-Reversing InternalTwo Lever Quadrant w/Friction
05-02446
$92.75
Quantity
Non-Reversing InternalTwo Lever Quadrant w/Friction, w/ T-Bar
05-02446-1
$109.75
Quantity
Non-Reversing InternalThree Lever Quadrant
05-02444
$86.75
Quantity
Non-Reversing InternalThree Lever Quadrant w/T-Bar
05-02444-1
$103.75
Quantity
Non-Reversing InternalThree Lever Quadrant w/Friction
05-02447
$108.90
Quantity
Non-Reversing InternalThree Lever Quadrant w/Friction, w/T-Bar
05-02447-1
$119.75
Quantity
Subtotal $0.00
Add to Wishlist

Overview

These quality quadrants have been in use for over 35 years in a wide variety of experimental and ultralight aircraft. All quadrants are made with AN standard hardware and aircraft-quality 6061-T6 or 2024-T3 Aluminum. All sizes and models can be utilized for a side mount, center mount, or dual-control hookup. Can be used in Pitts, Cub, Aeronca, Bakeng Deuce, Horizon 2, Dakota Hawk, Quicksilver, Mini Max, Dragonfly, X-Air, etc. If you have an aircraft, we have a quadrant that will fit your needs.

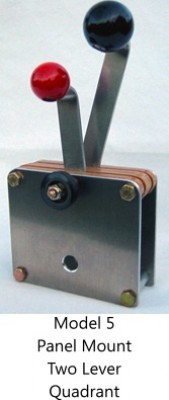

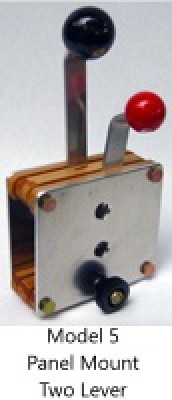

Model #5 - Panel mount quadrant can be an internal reversing or internal non-reversing. Available in S-series only. One, two or three levers. Friction or non-friction.

Four sizes available:
Special series quadrants:
Large Series 4-78" wide x 4" tall. 13 oz.
Standard Series 4" wide x 3-1/2" tall. 11 oz.
3/4 series 3-7/8" wide x 3" tall. 10 oz.
1/2 series 3-7/8" wide x 2-5/8" tall. 8 oz.
RV-series 4" wide x 4" tall. 12 oz.
Panel Mount
4" wide x 3-1/2" tall 12 oz.
Twin Engine
4-7/8" wide x 4" tall 15 oz.
All weights are for two arms and friction. (Except twin engine).
Measurements do not reflect Lever lengths.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Reviews

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Homebuilders throttle quadrants, Single handle Reversing vs. non reversing. What is the difference? I want to use with Bing carbs (Rotax 503).

A non-reversing quadrant will push or pull the cable attached in the same direction. If you push the lever forward the cable attached to it goes forward. A reversing quadrant is opposite. If you push the lever for forward, the cable attached to it goes the opposite direction, backward.

View in Catalog

View Image View in Catalog
