ACS Throttle Quadrants

From $51.75 to $68.75
Description Part Number Price Buy
Two-Lever Quadrant
05-00960
$51.75
Quantity
Three-Lever Quadrant
05-00961
$68.75
Quantity
Subtotal $0.00
Add to Wishlist

Overview

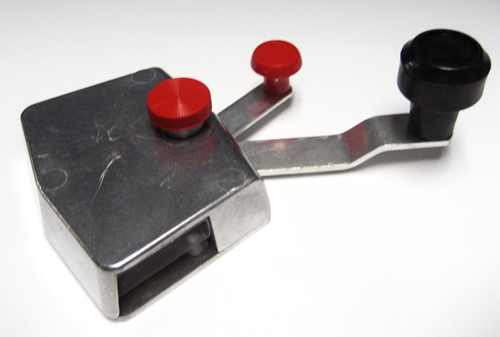

Available in two lever designs. The 2-lever control has black plastic Throttle knob and red Mixture knob. The 3-lever control has blue Prop knob in addition to the throttle and mixture knobs. Built-in friction lock. Levers have 2-1/2" travel. Quadrants fit on left or right side of cockpit and can be used in tandem. Complete with aluminized Mylar knob inserts. Ends of throttle and prop levers have 3/16" dia. holes for attachment of push-pull controls with clevis terminals. End of mixture lever has .076" dia. hole to accept solid wire control such as Bowden cable.
Made in USA

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Dustin B Verified Purchase

Throttle Quadrant # A-1340

May 5, 2022

got one,still waiting on the second one. Having to reverse the cable movement is a task!!!

Gary W Verified Purchase

Throttle Quadrant # A-1340

July 27, 2021

product was received in four days, was in good condition and was reasonably priced.

Philip W
August 23, 2019

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What is the difference between ACS quadrant A-1340 (part number 05-00960) and A-1340-1 (part number 05-00961)?

A-1340 (05-00960) is a two-lever quadrant and the A-1340-1 (05-00961) is a three-lever quadrant.

Q: What does reversing and non reversing refer to?

Reversing is when the cable is attached to the lever inside the housing, and when the handle is pushed forward, the cable is pushed backward. Non reversing, is when the cable is connected to the lever, and the handle pushed forward, the cable is pulled forward.

Q: Is A-1340 (part # 05-00960) a non reversing quadrant?

It is reversing. If you push the lever the cable is pulled. If you pull the lever the cable is pushed.

Q: If I push on this lever, will it pull a cable or push it ? Does the cable enter from the back of the front?

It will pull when you push. The cables can enter from either side.

Q: Are these only to be mounted on the side panel or can they be mount on the center console as well?

They are designed to be mounted on the left or right side of the cockpit.
