Home / Airframe Parts / Fuel Systems / Valves / Shutoffs /Homebuilder Shut-Off Valves
Main Image

Homebuilder Shut-Off Valves

11 Reviews 11 Answered Questions
From $33.75 to $39.85
Main Image
Part No. Imperial Equiv. Valve Type Pipe Thread Price Buy
05-01032
108HD-063-Port*3/8" Female x 3/8" Female$33.75
Quantity
05-01033
114-HD-044-Port**1/4" Female x 1/4" Female$39.85
Quantity
05-01034
114HD-064-Port**3/8" Female x 3/8" Female$37.50
Quantity
Subtotal $0.00
Add to Wishlist

Overview

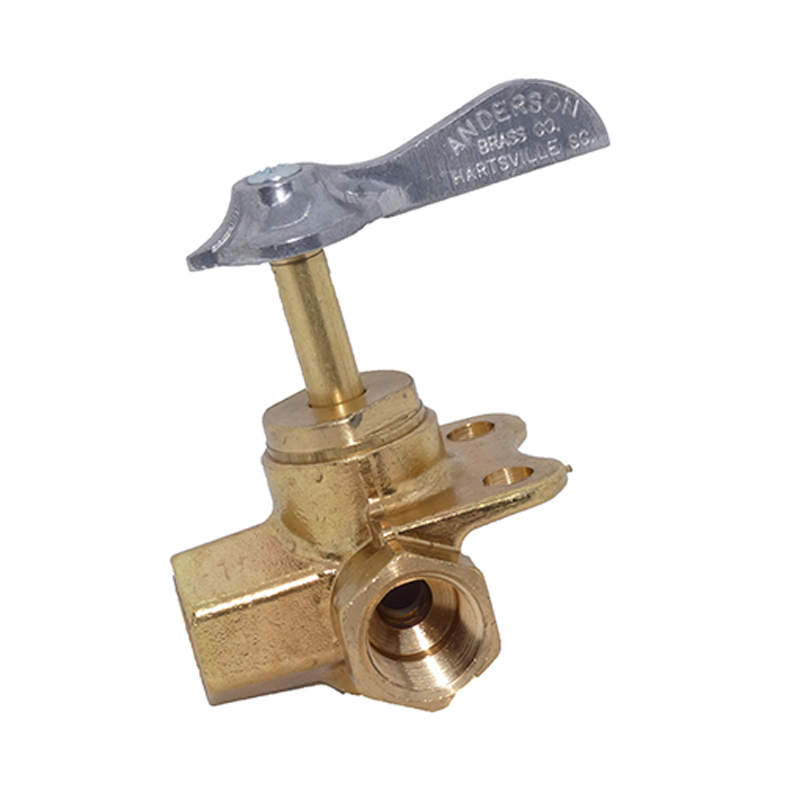

A full-flow plug valve with solid bottom and integral mounting bracket. Brass body and plug. Floating stem with O-ring prevents leakage. Packed with synthetic grease which resists gasoline and solvents. Indicating click on 3-port and 4-port valve (CN models) tells when handle is in full open or closed position. Tested to 30 PSI. Not FAA approved. *For 2 tanks. Flow is from either side to branch. **For 3 tanks. Flow is from any side to bottom outlet. Note: Order valve with 1/4" pipe threads for 3/8" dia. fuel line. Order valve with 3/8" pipe threads for 1/2" dia. fuel line. These pipe thread sizes are the ones normally associated with the indicated tube sizes.

* For 2 tanks. Flow is from either side to branch.
** For 3 tanks. Flow is from any side to bottom outlet.
Note: Order valve with 1/4" pipe threads for 3/8" dia. fuel line. Order valve with 3/8" pipe threads for 1/2" dia fuel line. These pipe thread sizes are the ones normally associated with the indicated tube sizes.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Submit a Review

Perfect valve for two wing tanks

Tony G Verified Purchase

3/8FemX3/8Fem Fuelval 3-Port
January 12, 2024

the product is called 3/8, but in reality for a 3/8 hole you have to buy the 1/4 valve: somewhere in the catalog it is explained, but it is easy to get confused. A clearer explanation would be needed, now I have a chew valve that I dont need and returning it is more expensive than scraping due to senseless freight costs from/to Europe.

Gustavo C Verified Purchase

3/8FemX3/8Fem Fuelval 3-Port
August 1, 2023

No issues works well

Patrick R Verified Purchase

1/4 Female Fuel Valve 4-Port
May 9, 2023

Installed this replacement, works great!, does not come with any additional hardware.

Seth F Verified Purchase

1/4 Female Fuel Valve 4-Port
March 28, 2023

James M Verified Purchase

3/8FemX3/8Fem Fuelval 3-Port
December 8, 2021

James M Verified Purchase

3/8FemX3/8Fem Fuelval 3-Port
December 8, 2021

Good fuel shut off valve for my project.

Dale C Verified Purchase

3/8FemX3/8Fem Fuelval 3-Port
May 29, 2021

We used this in an Aeronca 7ac champ for the main fuel tank. We put brass plugs in the other two ports which are available if we install wing tanks. We have only installed it so far but it appears to be a good quality fuel selector.

John C
July 7, 2020

Great part. Excellent service.

Brian
June 17, 2018

A reasonably priced fuel selector but after several installations (5) we have come across a few slow leaks. This can be in part due to the housing being slightly loose, ..easy fix (big nut - but dont over tighten), or by installing it into a dirty system whereas small contaminants are chaffing the plastic ball in the housing and over time allowing for fuel bypass.

Aerial E
May 2, 2019

Q&A

Submit

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: In your catalog you show an additional valve (P/N 05-02672). Is this valve still available? Is it comparable to the Weatherhead Fuel shut off valve (P/N 6749)? Thanks, Isaac Warner

The 05-02672 was a duplicate part number of 6749. They are the same unit.

Q: Fuel ShutOff Valve P/N: 05-01032 (Pipe Thread 3/8 X 3/8 Female) is compatible with Nipple P/N:AN816-6D?

You would want to use AN816-6-6D.

Q: Does the 4 port model have an off selection?

Yes, this valve does have an off selection by turning the pointer towards the mounting holes. This will create no flow through the valve.

Q: Do any of these valves have a Both selection or are they only left-right-off? Thanks.

The Homebuilder's shut-off valves will not have a "both". Please take a look at P/N# 05-21697 or take a look at the FS20 series Andair valves as these will have a "both" position.

Q: Does the part # 05-01032 have a detent to provide feedback when the valve is in the elected position?

The valve does make a click when the position is changed. You can feel it click into position and you have to apply force to move it out to the next position.

Q: Order 3/8 pipe threads for1/2 diameter fuel line. Is that OD or ID for rubber fuel line?

You would order the 3/8th fuel selector and then something like an AN840-8 or 8D for 1/2" ID fuel lines.

Q: Does the three port valve have an off position like the 4 port valve?

Yes, it does.

Q: What is the replacement part # for the O-ring mentioned in the Overview section?

These are not rebuildable. New valve will need to replace the old valve if damaged or not working.

Q: Do you carry replacement screw that attaches the handle?

Our part number NAS387-832-8P will work.

Q: The overview mentions a brass body and plug. Does it come with a plug for a one a tank setup. If not what plug is needed.

The "Plug" is the internal mechanism that the handle is attached to. You could use part number an814-6 or 6D to plug off one of the ports.
