Home / Airframe Parts / Controls / Button Lock /Button Type Dash Control

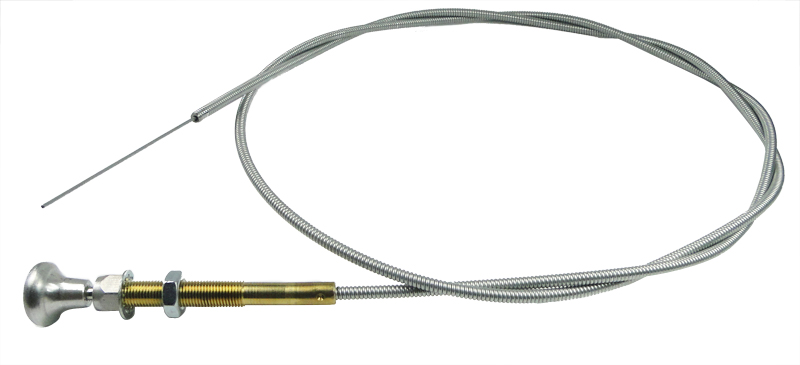

Main Image

Button Type Dash Control

25 Reviews 9 Answered Questions
Select Length:
5 ft8 ft
Quantity
Add to Wishlist

Overview

Button Type Dash Control designed for use with many control system applications. Easily installed. Operates smoothly. All adjustable parts are metal. 7/8" Dural button on 3/16" diameter shaft. Maximum travel is 2". Furnished in 5 ft. and 8 ft. length. May be shortened. Order Inserts separately.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Submit a Review

looks to be good quality . i would prefer a slightly larger knob

David M Verified Purchase

Plain Dural Knob Control 5
August 6, 2024

Came fast, was easy to install, works great, and looks fantastic.

Mark S Verified Purchase

Plain Dural Knob Control 5
May 29, 2024

Nice quality, smooth action.

Bradley R Verified Purchase

Plain Dural Knob Control 8
April 4, 2024

Kenneth E Verified Purchase

Plain Dural Knob Control 5
March 27, 2024

I like the metal knob and the price. Customers should note it does not have any ratcheting that is nice for carb air box controls.

Randal S Verified Purchase

Plain Dural Knob Control 8
February 25, 2024

Greg D Verified Purchase

Plain Dural Knob Control 5
November 7, 2023

Sandy P Verified Purchase

Plain Dural Knob Control 5
July 15, 2023

Danny H Verified Purchase

Plain Dural Knob Control 5
December 30, 2021

OK

Brm A Verified Purchase

Plain Dural Knob Control 5
August 29, 2021

Very durable. Looks nice on the dash.

Bill S
February 9, 2021

Q&A

Submit

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What is the wire diameter for PN 05-14200

The wire diameter would be .055".

Q: What is the mounting hole diameter for these button type dash controls?

You would need a 3/8" diameter hole.

Q: How is the length measured, from the tip to the nut or what? Im also in need of screws to hold the valve covers on a lycoming 0-320, do you stock these and what is the order part number? Thanks, Doug

The 05-14200 is measured from the from the front of the mounting nut, where the panel sits flush, to the end of the wire. The rocker box screws are part number 08-03697.

Q: Ordered and received 08-04005 heat box and 05-14200 cable. Which part do I need to attach cable to heat box?

This unit does not have any specific instructions to attach the cable, but the 05-14200 has a .055" diam. inner wire, so you could probably use a bolt type terminal like p/n 05-16100, or a cable B-Nut like 05-16240. Just verify the size of the hole in the arm and select the best unit for that application.

Q: Is this a solid or stranded core? Is the core stainless steel ? Is the conduit stainless steal ? Is the knob end able to be unthreaded for another style knob?

The cable assembly is constructed of a Brass head tube, galvanized carbon steel round wire conduit, galvanized carbon steel round wire inner member, commercial zinc plated hardware carbon steel, zinc plated carbon steel input rod with a pressed on knob, it is not recommended that this knob be removed, Orscheln products is not liable for any subsequent damage or inoperability caused by removing the knob.

Q: What is the OD of the conduit on the 05-14200 cable

The OD conduit measurement is 0.20".

Q: What is the length of the threaded gold colored part to where the braided conduit starts?

Just short of 3".

Q: What are the inserts that it talks about in the part overview?

The inserts are the decals for Carb heat, parking brake, mixture, etc.

Q: Is it used to operate a parking brake valve (Matco)? Does it have a brake?

We believe it could be, however this is a plain push pull cable, it does not have a lock feature or specific application.
