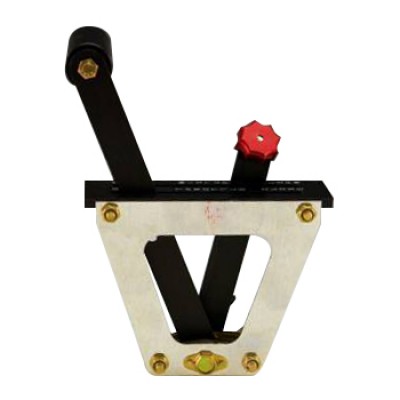

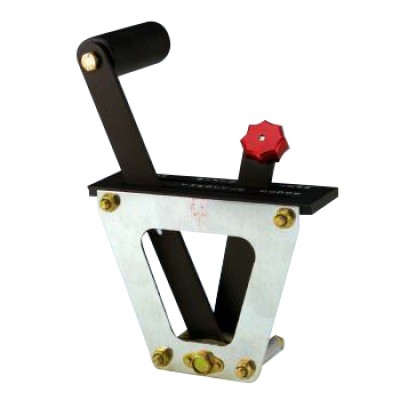

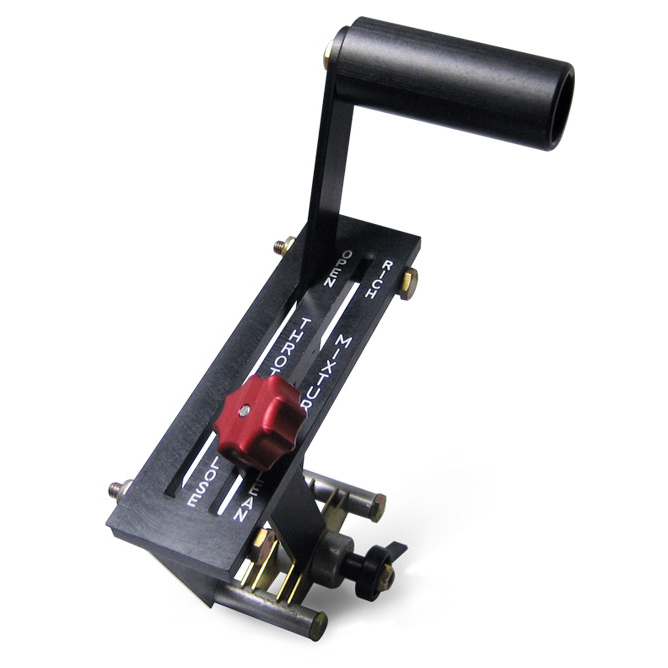

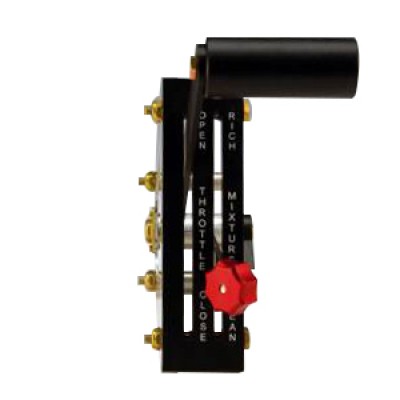

Throttle Quadrants For RV- Model Ct82F

$292.00/Each
Quantity
Add to Wishlist
Part# 05-00702
MFR Model# CT82F

Overview

These quadrants are made from aircraft quality anodized aluminum for long life and corrosion resistance. Brass friction plates are adjustable to fit individual preferences. Black anodized top plates are machined and engraved on a CNC mill to exacting tolerances for an excellent finish. side plates are laser cut insuring a perfect fit and feel. All hardware used meets AN standards. Note: All throttle qaudrants require a AN665-21R clevis with an AN393-11 clevis pin.

The side mount style quadrants are intended for use in tandem airplanes such as the RV4, RV8, Stardusters, Baby Great Lakes, One Design, Acro Sport and Sonerai. The center mount style is intended for use in side-by-side aircraft such as RV's, Sonex, Thorp T18 and Pulsars.

MODEL SPECIFICATIONS:
  • 2 CONTROL LEVER
  • Side Mount Flat Top
  • Weight: 8 Oz.
  • 7-3/4" H x 4-3/4" W x 1-1/2" D

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What is the length of travel along the opening the lever moves? I would like to use a linear potentiometer.

The travel length of the lever is approximately 41-8" end to end. The lever itself is 3/4" wide.
