- Photo may represent series and not specific product
- SHARE
| Model Number | Description | Part Number | Price | Buy |
|---|---|---|---|---|
| 1014d048 | Control Turn-To-Lock Dual 4ft | 05-11249 | $193.80 | |
| 1014d048-B | Control Turn-To-Lock Dual 4ft Ball Knob | 05-11250 | $188.75 | |
| 1014d048-F | Conrol Turn-To-Lock Dual 4ft Fluted Knob | 05-11251 | $199.99 | |
| 1014d048-FL | Control Turn-To-Lock Dual 4ft Fluted Knob | 05-11252 | $193.75 | |
| 1014d048-P | Control Turn-To-Lock Dual 4ft 4-Prong Knob | 05-11253 | $199.99 | |
| 1014d048-PL | Turn-To-Lock Dual 4ft 4-Prong Knob | 05-11254 | $205.95 | |
| 1014d048-T | Control Turn-To-Lock Dual 4ft T-Handle Knob | 05-11255 | $188.75 | |
| 1014d048-TL | Control Turn-To-Lock Dual 4ft T-Handle Knob | 05-11256 | $193.75 | |
| 1014d072 | Control Turn-To-Lock Dual 6ft | 05-11257 | $194.75 | |
| 101d4072-B | Control Turn-To-Lock Dual 6ft Ball Knob | 05-11258 | $233.95 | |
| 1014d072-F | Control Turn-To-Lock Dual 6ft Fluted Knob | 05-11259 | $211.95 | |
| 101d4072-FL | Control Turn-To-Lock Dual 6ft Fluted Knob | 05-11260 | $205.95 | |
| 1014d072-P | Control Turn-To-Lock Dual 6ft 4-Prong Knob | 05-11261 | $211.95 | |
| 1014d072-PL | Control Turn-To-Lock Dual 6ft 4-Prong | 05-11262 | $217.95 | |
| 1014d072-T | Control Turn-To Lock Dual 6ft T-Handle Knob | 05-11263 | $199.99 | |
| 1014d072-TL | Control Turn-To-Lock Dual 6ft T-Handle Knob | 05-11264 | $205.95 | |
| 1014d096 | Control Turn-To-Lock Dual 8ft Wo Knob | 05-11265 | $219.95 | |
| 1014d096-B | Control Turn-To-Lock Dual 8ft Ball Knob | 05-11266 | $224.95 | |
| 1014d096-F | Control Turn-To-Lock Dual 8ft Fluted Knob | 05-11267 | $224.95 | |
| 1014d096-FL | Control Turn-To-Lock Dual 8ft Fluted Knob | 05-11268 | $230.95 | |
| 1014d096-P | Control Turn-To-Lock Dual 8ft 4-Prong Knob | 05-11269 | $224.95 | |
| 1014d096-PL | Control Turn-To-Lock Dual 8ft 4-Prong Knob | 05-11270 | $230.95 | |
| 1014d096-T | Control Turn-To-Lock Dual 8ft T-Handle Knob | 05-11271 | $224.95 | |
| 1014d096-TL | Control Turn-To-Lock Dual 8ft T-Handle Knob | 05-11272 | $217.95 |
Overview

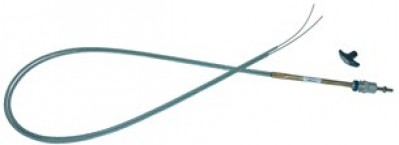

Turn-to-Lock Choke Controls for Dual Carburetor 912/914 Series Rotax Engines
Allows a neat, clean installation without a clunky splitter box
These controls feature a turn-to-lock mechanism that requires a quarter turn of the knob to lock or unlock the control at any position. For a non-locking control go to Non-Locking Choke Controls.
 |
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Features
- All metal construction
- High temperature Teflon™ lined conduit for smooth, consistent control
- (Cheapy controls with poly liners will not tolerate engine temperatures)
- Available in 4, 6, 8, 12 foot and custom lengths
- Measured from panel fitting to end of conduit, wires extend at least 4 inches beyond conduit
- Easily trimmed to length
- Adjustable cable stops to limit travel
- Many knob styles available or provide your own knob with 1/4-20 thread
- Manufactured to the same quality standards as McFarlane's FAA-PMA parts
- Slip fit conduit terminal fittings also available: part numbers 6424 or 6271
- Includes one 0.05 allen wrench and two adjustable barrel stops to attach to the carb choke arm (no swaging or soldering necessary)
Specifications
- Travel (stroke): 3.5" minimum
- Conduit: 0.188 inch OD Teflon™ lined wound conduit
- Max Work Loads: Pull: ~25 lbs (Not designed for push loads)
- Minimum Locking Force: ~30 lbs
- Operating Temp: -65 to 450 deg F (knob/housing assembly: -65 to 250 deg F)
- Panel Fitting: 1/2-20 UNF thread
Q&A
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
This is available in 4, 6, 8 and 12 feet on request.
The wire on this specific control is twisted cable 1/16 7x7 stainless steel. The housing is high temp, and teflon lined.
