Home / Rotax Engines & Parts / Parts / Two Stroke Parts / Accessories / Exhaust Systems /Rotax 503 | 582 Ul 99/17 Engine Exhaust Systems Single Parts
Main Image

Rotax 503 | 582 Ul 99/17 Engine Exhaust Systems Single Parts

0 Reviews 0 Answered Questions
From $6.00 to $46.15

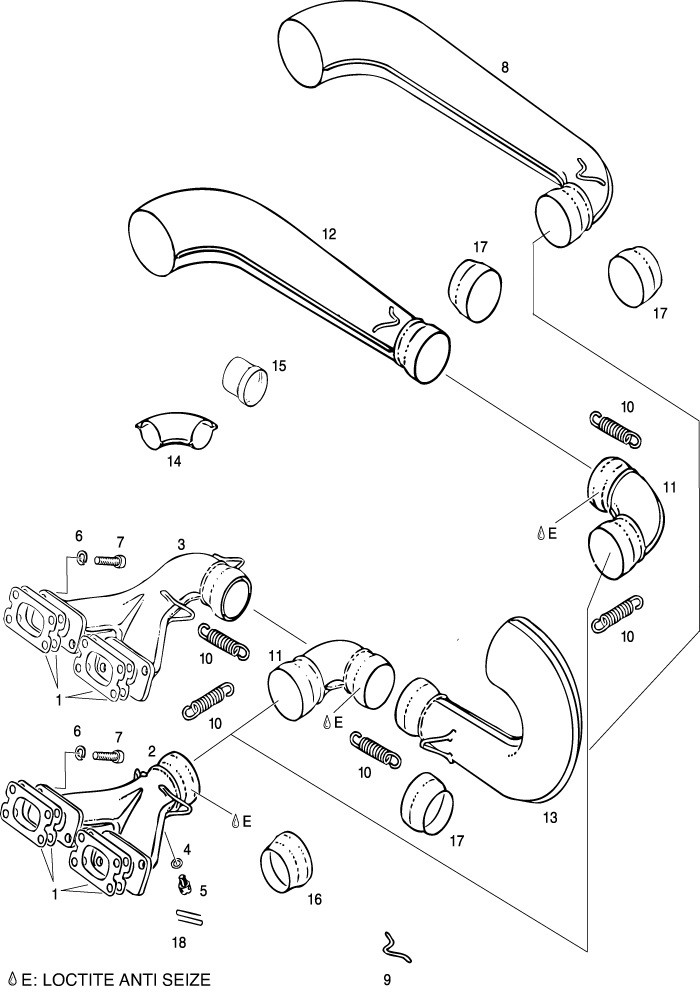

Reference Chart

(Hover to zoom | Use mouse wheel for +/-)

No. Rotax Part Number Description Qty Req. 503 UL Qty Req. 582 UL PN Price Buy
5941-615 CAPSTAN SCREW M8X1X1022
15-03266
$6.00
Quantity
14879-920 OUTLET ELBOW ASSY.,11
15-02190
$46.15
Quantity
15978-640OUTLET TUBE 1c1c
15-04083
$15.75
Quantity
Subtotal $0.00
Add to Wishlist

Overview

- Items not illustrated
  • a   without hooks
  • b   with hook
  • c   for configuration with clamped after muffler.
  • d   for exhaust manifold
  • e   for inlet cones
  • f    see also-SI-2ST-002
  • g   no longer in production
  • h   replaced by part no. 973-546 + 973-182
  • i    replaced by part no. 973-546 + 973-180, hooks have to be ordered separately


Explanations of symbols and statements in part number charts:
  • N = Newly introduced part number
  • s.v. = Still valid. Part was replaced by compatible component and can not be supplied any longer by the producer. Existing stock may be used.
  • AR = As required. This generally refers to shims, hose, wires, and cable. Measure the amount you need before ordering. Many times there will be multiple listings of different lengths with the same part number. Use individual part descriptions to determine the proper length needed.
  • n.a or NLA = No longer available, no replacement from Rotax. Part is no longer available due to incompatibility to current production or unavailability of part.
  • CALL = Please call for price, 800-247-9653

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Notes

No.
Status
Part No.
 Description
447
503
582
m90
582
m99
618
Price
3
S.V.
EXHAUST MANIFOLD ASSY.,
1g
NLA
8
S.V.
973-546
 INLET CONE ASSY.,
1agi
1agi
$218.37
13
973-542
 INLET CONE ASSY.,
1b
1b
NLA
