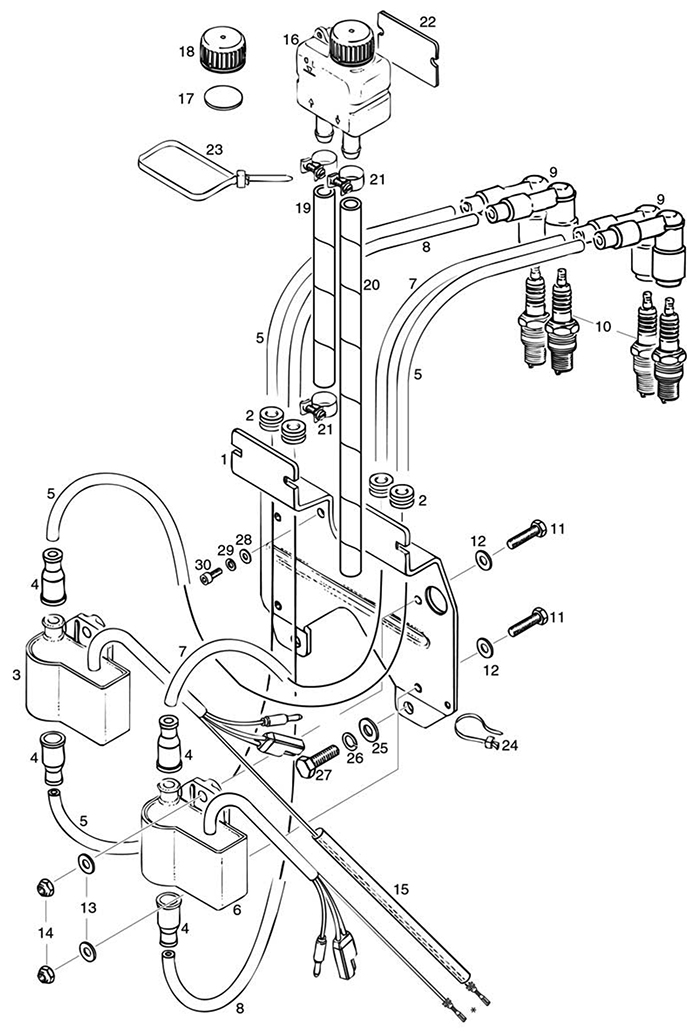

Rotax 582 Ul Engine Oil Tank | Ignition Coils | Support Plate Parts

From $0.42 to $3.65

(Hover to zoom | Use mouse wheel for +/-)

No.	Part Number	Description	Qty Req Mod. 99	Qty Req Mod. 17	Part Number	Price	Buy
10	897-055	SPARK PLUG 14 MM, NGK BR 8 ES	4e		08-00736	$3.65	Quantity
11	240-036	HEX. SCREW M6X25 DIN 933	4		15-00113	$0.53	Quantity
15	960-187	PROTECTION HOSE 170 MM	1	1	15-03630	$1.65	Quantity
22	860-425	RUBBER SPACER	1	1	15-01702	$3.07	Quantity
24	866-710	CLAMP 142X2,5 MM	1c	1c	15-01869	$0.79	Quantity
27	240-276	HEX. SCREW M8X25	2	2	15-00133	$0.79	Quantity
30	241-237	ALLEN SCREW M6X16	2	2	15-00169	$0.42	Quantity

Subtotal $0.00

Overview

- Items not illustrated

Explanations of symbols and statements in part number charts:

N = Newly introduced part number
s.v. = Still valid. Part was replaced by compatible component and can not be supplied any longer by the producer. Existing stock may be used.
AR = As required. This generally refers to shims, hose, wires, and cable. Measure the amount you need before ordering. Many times there will be multiple listings of different lengths with the same part number. Use individual part descriptions to determine the proper length needed.
n.a or NLA = No longer available, no replacement from Rotax. Part is no longer available due to incompatibility to current production or unavailability of part.
CALL = Please call for price, 800-247-9653


	WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

965-153 SOLD IN METER LENGTHS. FOR CORRECT LENGTHS NEEDED, SEE DESCRIPTION OF INDIVIDUAL PARTS BELOW.
No.	Status	Part No.	Descriptions	QTY mod.90	QTY mod.99	PRICE
5		965-153	IGNITION CABLE 360 MM	2ad	2ad	*

7			* IGNITION CABLE 180 MM	1bd	1bd	*
8			* IGNITION CABLE 440 MM	1bd	1bd	*

20			* OIL HOSE 155 MM	1d		$51.29
21			* OIL HOSE 360 MM	1d		$51.29
956-140 SOLD IN METER LENGTHS. FOR CORRECT LENGTHS NEEDED, SEE DESCRIPTION OF INDIVIDUAL PARTS BELOW.
20		956-140	* OIL HOSE 155 MM		1d	*
21		956-140	* OIL HOSE 360 MM		1d	*
