Type | Model | Outer Panel Thickness | Length | A | B | C | Part No. |
---|---|---|---|---|---|---|---|
GA | 1271-5375 | .095 - .125 | .375 | .374 | .500 | .028 | GA5-375 |

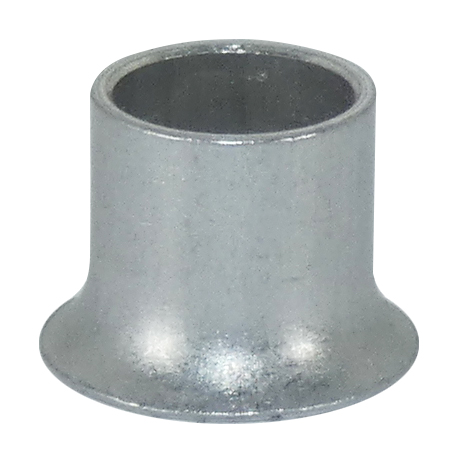

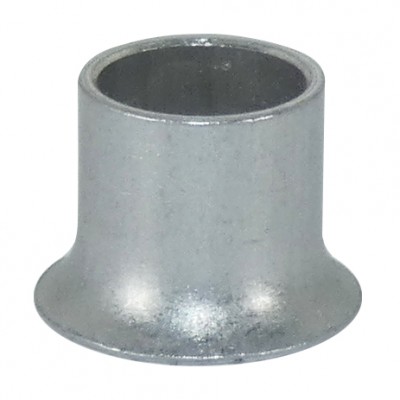

A full grommet is used when protection of the hole is a definite consideration. It protects panel finish and reduces stud play. A tool is required for installation. The "GA" type full grommet is used with a protruding head stud, and the "GF" type with a flush head stud. |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
I was in need of the Duzs grommets that I bought from Aricraft Spruce for a motorcycle project that Ive been working for the past couple of years. It has a full road race fairing on it and the fairing sections are held together with Duzs fasteners. In order to remove the Duzs fasteners for painting it destroys the grommets. After some searching on the internet I found the grommets I needed at Aircraft Spruce, at a resonable price. The order was placed and within a few days I had the grommets. Good service, fair price whats not to like???
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
These will require a C-Clamp base tool, part number 12-02272.
You can use grommets GF4-125, 150, 175, 200 for this fastener.
Full grommets: GA5-312, GA5-350, GA5-375
GP5B plastic grommet or GH5 for aluminum.
