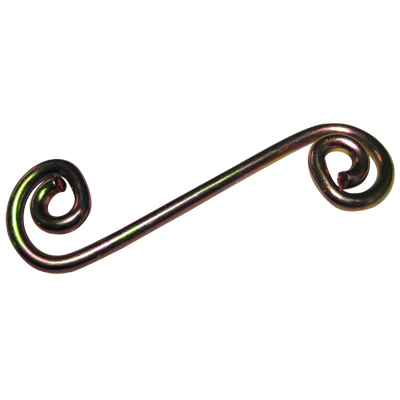

Dzus Springs S5A-200

$1.75/Piece
Part# S5A-200
MFR Model# 1219-A5200-Z3Y
Model No.Part No.
1219-A5200-Z3YS5A-200

Overview

The dash number represents the height ("H" dimension) of the spring.

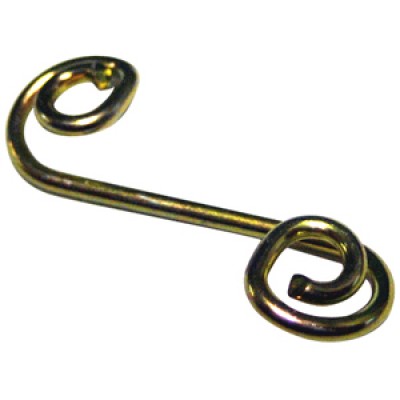

EXAMPLE: S3-150 = .150. All DzusŪ products are available. Request quote on unlisted items.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Reviews

+++++

Tod Verified Purchase

Dzus Springs S5A-200

October 30, 2024

as advertized

David R Verified Purchase

Dzus Springs S5A-200

December 28, 2022

Keiji K Verified Purchase

Dzus Springs S5A-200

November 25, 2021

Mitch W Verified Purchase

Dzus Springs S5A-200

October 19, 2021

Fit perfectly.

Paul Y
December 7, 2020

Took a long time to get to total quantity delivered.

Zachary E
January 10, 2020

Perfect fit. Arrived in a timely manner. Part # was a little bit of a challenge to figure out.

Alan H
October 22, 2019

Great specialty products and fast delivery!

Brian C
September 28, 2017

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What does the A mean in the part number S5A-225?

The S5A-225 the ( A ) is for automatic. Designates the machine it went on at DFCI. Dimension-wise, they are the same. Southco purchased DFCI and own "Dzus" trade name.

Q: I am trying to cross reference a Southco PN D4-06-275 spring to your numbers.

It should be D4-S6-275 and our part number is S6A-275.

Q: What are the mounting hole dimensions of the springs?

.10 id and .647 center to center.

Q: I have mounting holes 1 3/8 center to center. What springs will work?

That would depend on what size studs you are using.

Q: What is the center to center of the S4-225? And were can I find all the center to center information?

3/4 of an inch. All the s4 will have the same center to center, just the height would be different.

Q: DZUS SPRINGS S5A-200, What is the wire thickness?

This measures to .082".
