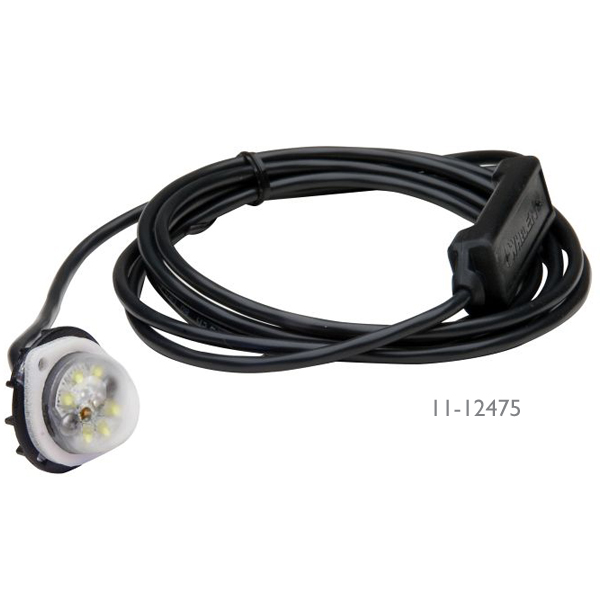

Whelen VtX609C Vertex Super-LED Light White
$134.99/Each
Part# 11-12475
FREE Shipping
| Mfg Model | Description | Dimensions | Part Number |
|---|---|---|---|
| VTX609C | Clear Anti-Collision | 1"H x 1.625" Diameter | 11-12475 |
Overview
| Only 7/8 in height, this small hemispheric LED lighthead is perfect for most applications where size and intensity are critically important. Self-contained unit using an in-line combination lamp driver/flasher. This self-contained LED Hideaway requires only a one inch hole in any composite style head light, cornering light or tail light assembly to deliver true wide angle warning to the front, side and rear of your vehicle... without interference to your vehicle computer and warning equipment! Less than 1 tall, it may also be surface mounted to outside surfaces anywhere on the vehicle! |
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Features
- Ultra small, self-contained, hemispheric LED light, for surface mount or internal mount within composite head-light, cornering lights and taillight assemblies.
- Flange kit options in Black or Chrome allow easy surface mounting anywhere on your vehicle.
- 25 Scan-Lock™ flash patterns, includes synchronize feature for alternating and synchronous flashing of multiple lamps.
- New lens technology enhances light distribution for optimum dispersion and intensity of the warning signal at critical angles.
- Includes pre-wired and sealed 4-C/22 gauge 9’ cable to the lighthead and lamp driver, with power, pattern and synchronize wires.
- Lamp and in-line lamp driver are fully encapsulated for moisture and vibration resistance.
- Omni-directional lighthead mounts in any position (orientation), vertically or horizontally.
- Available in Red, Amber, White and Blue and split colors. LED color must match color of the lens it is installed behind, except for Clear lens and split colors.
- 10-16 VDC.
- Virtually no RFI/EMI noise emitted, meets SAE J1113-41 Class 5.
- Two screws hold the lamp securely in place.
- 1" hole makes this LED module backwards compatible to HA238 and standard 1" Hide-A-Way style lamps.
- Simple installation with no separate lamp drivers, flashers, ballast or power supplies to install.
- Five year HDP® Heavy-Duty Professional warranty.
Specifications
- Amp draw: .750/peak, .300/average
- Lamp Assembly: 1 1/2 W X 7/8 H
- Lamp Driver/Flasher: 4 3/4 L X 15/16 W X 7/16 H
