Dynon Skyview HDX 10 Display Only

$4480.00/Each
Part# 10-06236
MFR Model# 102864-000

Overview

SkyView HDX features improved displays, beautiful design, unrivaled control ergonomics, and an upgraded touch interface. SkyView HDX displays are compatible with all existing SkyView components and feature identical mounting profiles and electrical connections.

Clear, Vibrant Displays:
    SkyView HDX features brighter, higher-resolution HD touchscreen displays with wider viewing angles and improved anti-reflective properties for the sharpest picture ever.
Beautiful Design:

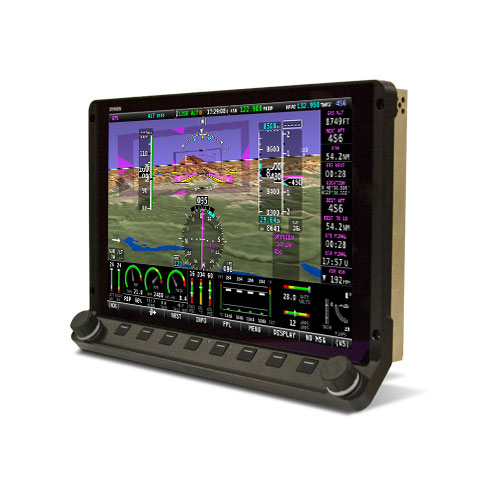

    SkyView HDX’s modern, elegant design features robust metal and glass construction that is worthy of being in your aircraft.
Unrivaled Control Ergonomics:

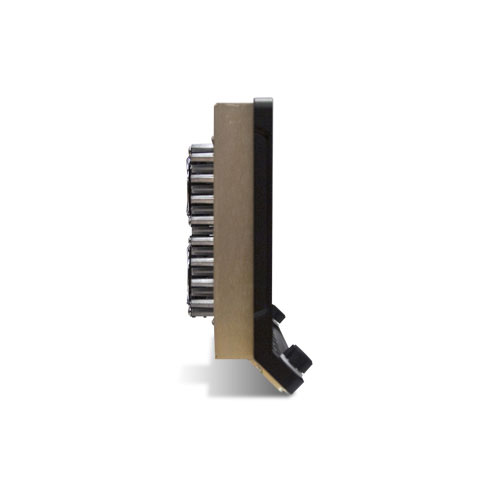

    SkyView HDX expands the SkyView philosophy of combining full physical controls with a touchscreen. SkyView HDX’s angled control panel allows for natural hand positioning, reducing fatigue. The wide, sculpted ledge allows you to anchor your hand for precise control in turbulence. New knobs have positive and crisp movement, and all controls are now fully-backlit for night flight.
Improved Touch Interface:

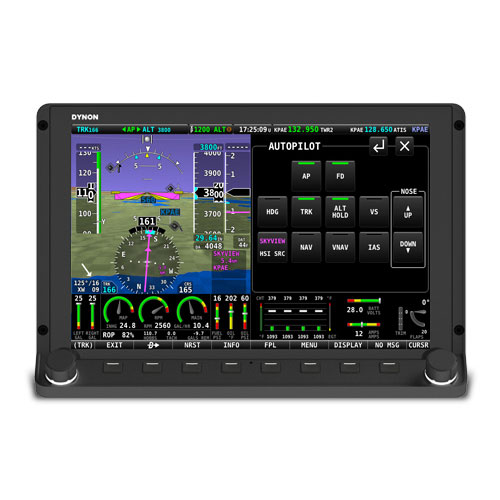

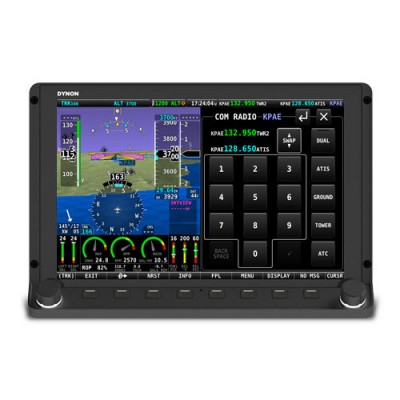

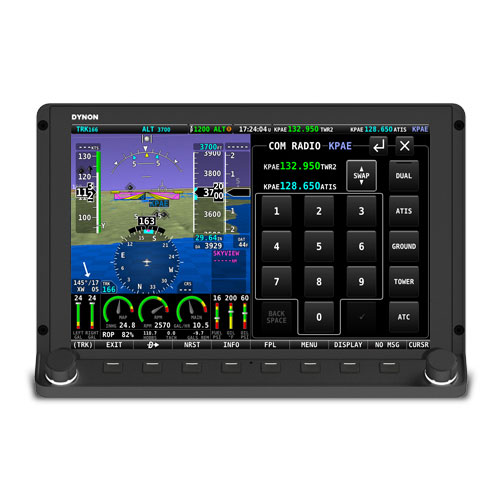

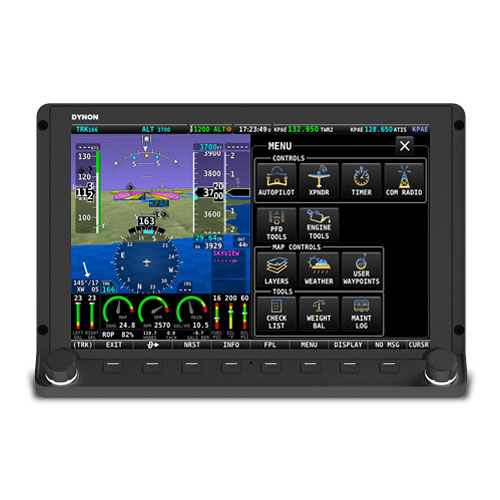

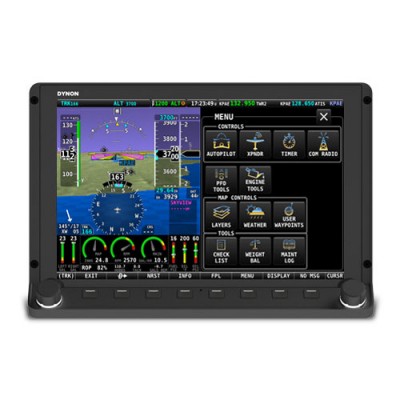

    SkyView HDX features icon-driven touch controls and simplified screen navigation for reduced workload. The new engine monitor instrument band along the bottom of the screen affords an ideal instrument scan. The expansive glass display features edge-to-edge touchability with no bezel in the way.
Capable and Compatible:

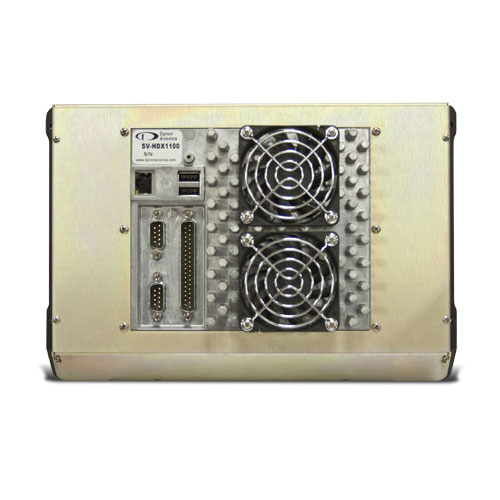

    SkyView HDX utilizes the same components and modules as existing SkyView systems. It also features the same mounting footprint and wiring as other SkyView displays, allowing drop-in upgrades for pilots already flying behind SkyView. SkyView HDX displays can also work side-by-side with SkyView Touch and SkyView Classic displays.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

SV-HDX1100 10" Skyview
    Dimensions:
  • 10.31" Wide
  • 7.1" High
  • 3.1" Deep
    Resolution:
  • High Definition Touch Screen
  • 800 Pixels High
  • 1280 Pixels Wide

SV-HDX800 7" Skyview
    Dimensions:
  • 7.64" Wide
  • 5.59" High
  • 3.13" Deep
    Resolution:
  • High Definition Touch Screen
  • 800 Pixels High
  • 1280 Pixels Wide

Features

  • 12", 10" OR 7" Displays
  • PFD
  • Synthetic Vision
  • Moving Map
  • Terrain
  • Engine Monitor
  • Autopilot
  • Radio / Transponder Interface
  • LRU (Line Replaceable Unit)
  • Architecture
  • Redundant, Simplified Wiring
  • Very Bright High-Resolution
  • Screens, 1350 and 1200 Nits
  • Dual Joystick Knobs

Harness

SkyView HDX Display with Harness Bundle
  • SV-HDX800/A 7", SV-HDX1100/A 10", or SV-HDX1200 12" SkyView HDX Display
  • SV-HARNESS-D37
  • SV-SYNVIS-280 Synthetic Vision
  • SV-MAP-270 Navigation Mapping
SkyView HDX Display without Harness Bundle
  • SV-HDX800/A 7", SV-HDX1100/A 10", or SV-HDX1200 12" SkyView HDX Display
  • SV-SYNVIS-280 Synthetic Vision
  • SV-MAP-270 Navigation Mapping

Reviews

Functioned well.

Michael S
April 1, 2021

A neat setup to make you ADSB work on your Dynon

Ronnie
February 15, 2021

These are made (I guess) by Dynon. I wish the wires ends were marked as to where they go. Ito me the average builder it’s hard to figure out where they hook up to. I’m sure others can figure it out but would be so simple if Dynon would just use wires that had where they go, like spruce does.

Ronnie
January 1, 2021

Works as stated. Necessary if you fly experimental within B class airports with 30 mile Mode C radius veil.

Randy V
May 24, 2020

New EMS module corrected RF EMI issue on Skyview Classic display.

John K
September 22, 2019

Teodor S
March 1, 2019

Needed a backup battery for a Skyview display and very few companies stock them. You do, which saved a lot of shipping time coast to coast. Thanks again for the great service.

Steve T
January 15, 2019

Wayne K
May 26, 2018

dynon skyview knob and pa panel

Gahide
May 12, 2014

In addition to being ridiculously priced, this back up battery has very short connection wires. On my 2012 CTLSi the connectors had to be changed Very little wire to work with

Phil B
March 19, 2020

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What is the appropriate antenna cable for the transponder with a 6 ft run?

You have the option of RG 400 or RG 58 coax cable. RG 400 is a higher quality cable but either will work.

Q: Is the Skyview system from Dynon usable for certified aircraft?

No, the Skyview system is not TSO'd and is intended for experimental aircraft.

Q: Are the D-sub pins on the Dynon cables standard or high density pins?

They are standard density pins.

Q: Can you provide a diagram of the EMS fuel flow sensor ? Dimensions ?

This would be part number 10-01196. The diagram is under the documents tab.

Q: Can this Dynon Skyview system be installed on a King Air C90?

No, this system is not FAA Approved and is intended for use in experimental aircraft only.

Q: Although the Dynon SkyView system is not TSOd..can it be fitted as a back up system in a certificated aircraft--or are products such as Garmin the only option....

Unfortunately, this unit cannot be installed in a certificated aircraft even as a back up. Please see the certified G5 for a qualifying unit.

Q: Do you sell the Skyview 10 HDX?

Yes, you can find it on our website by keyword searching "Skyview HDX" or part # 10-06254.

Q: Does the Autopilot Panel, part #'s 10-05614 and 10-05613 come with the necessary parts to make the 15-pin connector?

Yes, these will include the connector kits.

Q: What type of servo is provided with the Sonex Roll with servo kit 10-05886? Is it a SV32L (long arm)?

The servo provided is the SV42EL.

Q: Do I still need to buy the SV-MAP-270 unlock key if I buy the system now? According to Dynon this certificate is included in all the Skyview display packages that is purchased. As of August 2016, NAVIGATION MAPPING software now included with the following DISPLAYS: SkyView Classic (D1000, D700), SkyView Touch, & SkyView HDX

No, if you purchase the SkyView Touch System now, you will not not need to purchase the SV-MAP-270 unlock key.All functionality of that software will be included with your purchase.
