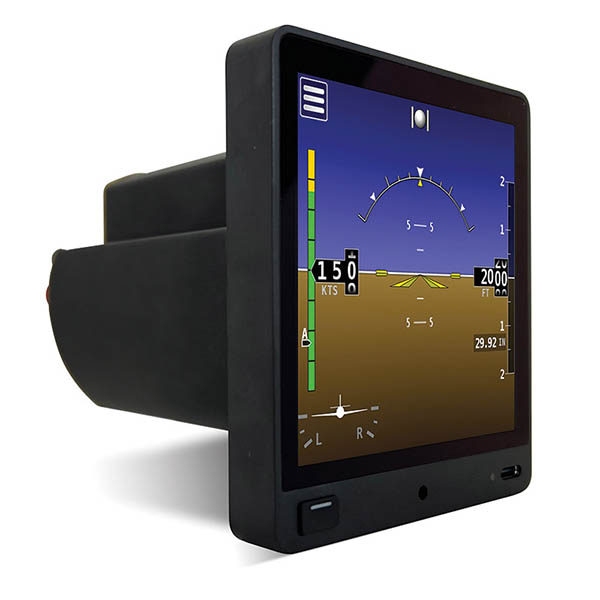

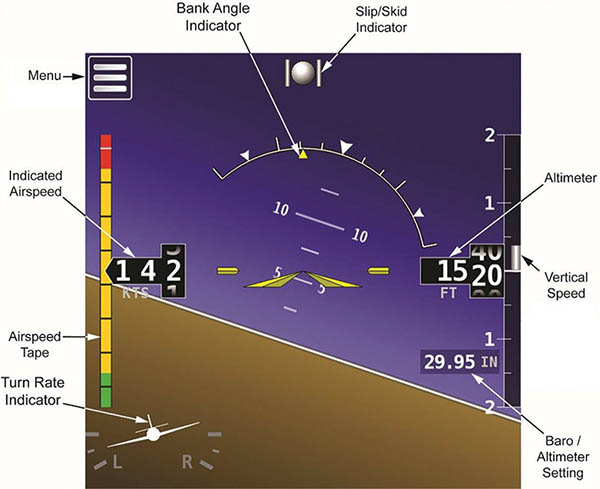

Meet the latest addition to the Dynon product line: The Dynon D30 Touchscreen Electronic Flight Display. The D30 serves as a backup set of flight instruments in SkyView HDX systems.

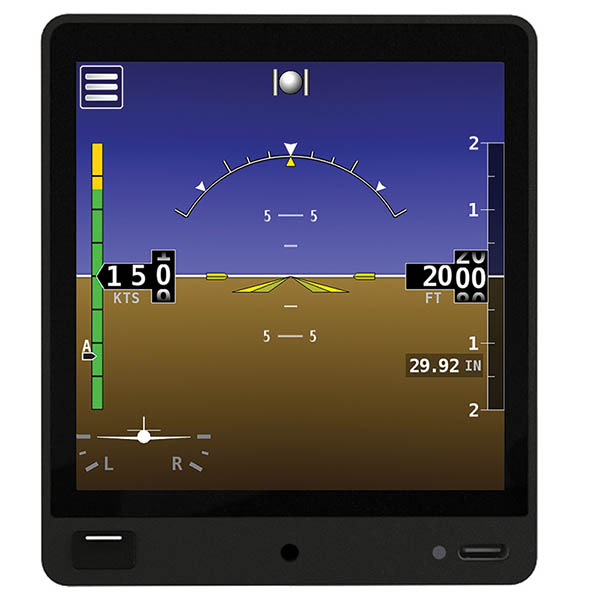

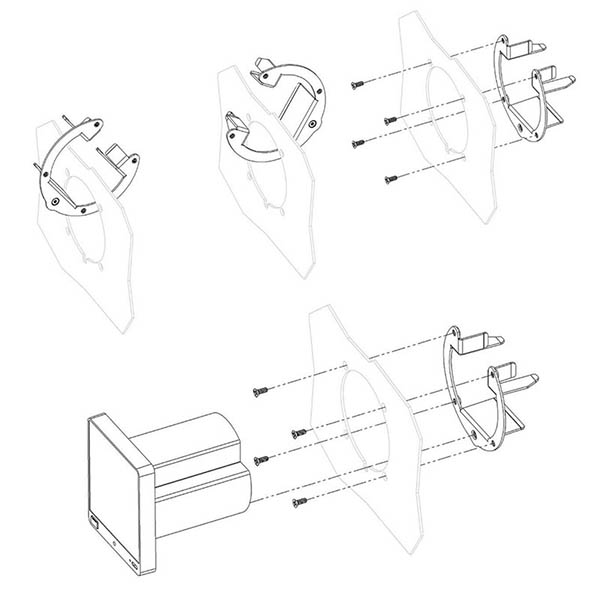

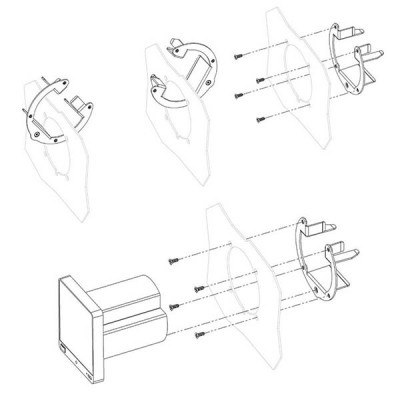

The D30 features a large 4", sunlight readable, high resolution touchscreen display. An integrated backup battery provides up to 5 hours of runtime in the event of aircraft power failure, giving pilots confidence that they have access to critical flight information when it is needed most Compact at only 3.7" deep, the D30 mounts in a slightly modified 3-1/8" instrument hole via a docking ring mounting bracket. The bracket allows for one-screw installation and removal of the instrument. |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

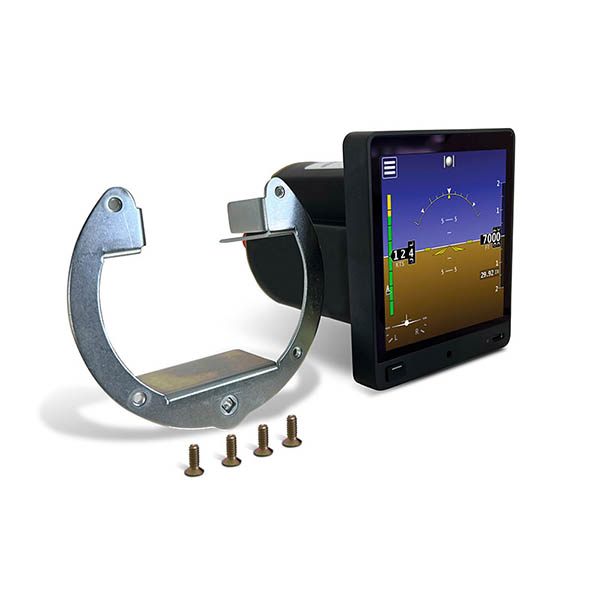

Yes, the mounting bracket and integrated back up battery are included.
Per Dynon support desk "No external components, just power and ground and then the pitot and static lines from the pitot tube and static port(s). That is really about it. It doesn't get a GPS signal, doesn't have a heading reference, or any nav inputs currently so the wiring is very simple, and all contained to the unit itself. "
