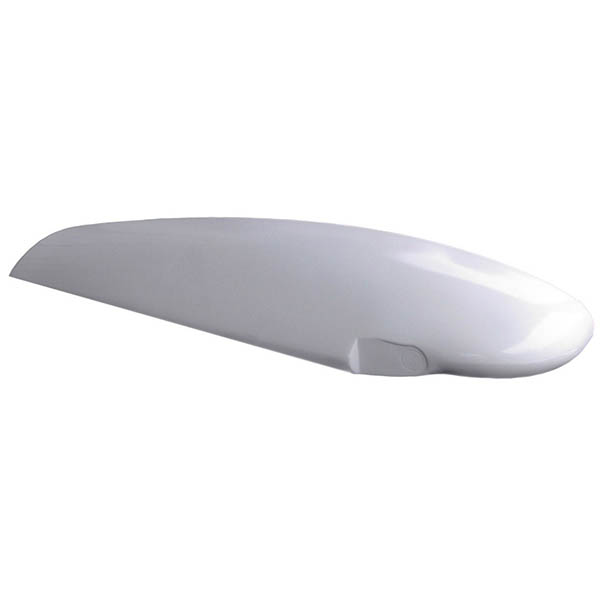

K2U Cessna 172 - 206 Right Wing Tip

$409.00/Each
Part# 05-12918
MFR Model# GF0723200-6

Overview

Built to match your original, you will get the benefits of fiberglass. Finish: White primer, ready for paint. For more technical information on these replacement fiberglass parts, click here.

Replaces: Cessna Part 0723200-5, 0723200-6

Aircraft Eligibility: 1973 & on 172M, 172N, 172P, 172Q, 172RG, 172R, 172S.
1977 & on R172K (Hawk XP) S/N R1722000 thru R1723454
1980 & on 172RG S/N 172RG0001 thru 172RG1191
1973 & on 180J, 180K. S/N 18052285 thru 18053203
1972 & on 182P, 182Q, 182R, T182 S/N 18260826 thru 18268615, 182S
1978 & on R182, TR182 S/N R18200001 thru R18202041
1973 & on A185F
1972 & on U206F, TU206F, U206G, TU206G, S/N U20601701 thru U20607020, 206H, T206H.


California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Reviews

Replaced the 50 year old plastic wing tips with the new fiberglass wing tips, wing tips look and work great. Also installed the Whelen LED nav lights at the same time. I needed to build up a flat spot to install the LED lights, good thing Fiberglass is easier to modify and repair than the plastic.

Tom
January 31, 2023

Worked like a charm, perfect fit and match and far more affordable than the manufacturer part. Service, shipping, and everything from Aircraft Spruce was first rate.

Mark B
February 7, 2020

Unfortunately the incorrect item was shipped, resulting in my having to return the wingtip to you I did an additional search and found the correct wing tip from another source. I was very specific on the serial Number and year of the Cessna 172 I was working on, but unfortunately the wrong tip was shipped - it was the tip used on much newer aircraft than the 1965 172 - the newer aircraft have a different wing profile. I called and did get authorization to return it and a good follow up from you people.

William D
February 5, 2021

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Do these need to be painted?

Yes, these come unpainted. Any finishing work must be done by the installer.

Q: Are there provisions on the wing tip for the nav and strobe light? IE: a flat surface that is drilled and a rivnut installed for mounting the lights?

There is a location to mount the lights, but not drilled, and no nutserts installed.
