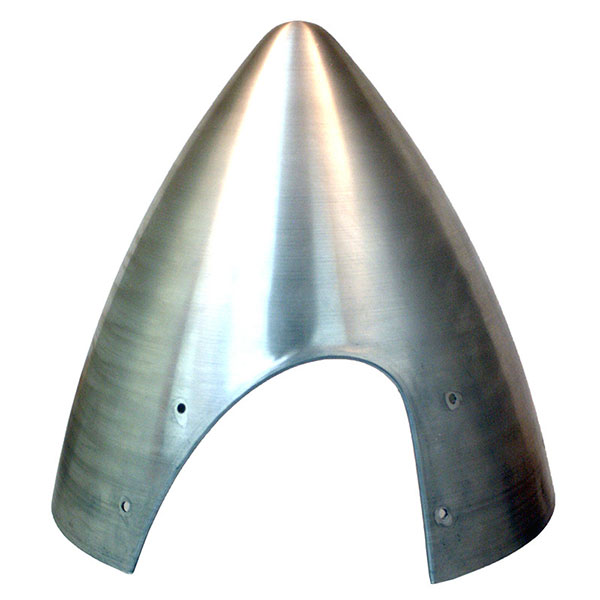

Piper Spinner Dome

$556.00/Each
Part# 05-07730
MFR Model# U14422-000

Overview

Applicability: Piper PA-18, PA-22, PA-25 (235hp with fixed pitch propellers, serial numbers 2986 to 3691)

For dome only, order part number 05-07730

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Reference Chart

Description
Part Number
Dome Only
05-07730
Back Plate
05-07695
Front Plate
05-07705
Complete Assembly
05-07710

Reviews

Seemed to be a perfect fit for my 1967 Cherokee 140. The A&P put it on with no issues and i have flown it three or four times and it looks and feels good.

Stan S Verified Purchase

Piper Spinner Dome

July 15, 2024

As others have said, this spinner is a direct replacement for a PA28-140. It fit perfectly with no having to tweak or muscle anything into place. There was no stamp on the inside stating it fits a PA28-140, but it does. Not only that, the part number (14422) is the same as shown in the Piper parts catalog. It came well packaged, and I am very happy with it. Recommend AS update their catalog to show it is applicable to the PA28-140.

Rick S
March 20, 2021

The spinner mounted on my Piper PA 28 160 with the requisite manipulations. Ive not flown with it so no information on that. However, I hope it to last at least 10 years w/o cracking. That is what I got out of the old one I purchased from Piper some years ago. The spinner came on time and was packaged very well. There were a few scratches on it suggesting attempts at past use had occurred but nothing serious or damaging. Thank you, Spruce for your Great Service! now and these 25 years owning my Piper.

Robert S
August 27, 2019

Spinner is perfect for PA28 series - Applicability is stamped on the inside and includes PA28.

Eric E
May 10, 2019

Installed on Pa-28-140. Perfect replacement!!

Brad
June 29, 2018

Excellent Product. Was looking for a spinner for a PA-28 and determined this was compatible despite not be advertised as such. upon arrival i saw stamped on the part that it is approved for PA-28. something to know if your looking for a cherokee spinner.

Wall A
October 26, 2017

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What is the maximum diameter of this spinner dome?

The max diameter is 12".

Q: What are the dimensions of the spinner cone, the front and back plates and what prop hub thickness will this accept?

Both backplates are 11-7/8", the u14426-000 front plate is 10-3/8", the u64336-000 dome is 11-7/8". The prop hub thickness would depend on the engine and prop.
