- Photo may represent series and not specific product
- SHARE
| Ref No. |
Lang No. & Description |
Qty Required |
Part No. | Price | Buy |
|---|---|---|---|---|---|
| 1&2 | A-501,A521 | 1 | 06-13601 | $4.95 | |
| 3,5,6,7 | 06-13637 06-13656 A-513 | 1 | 06-01570 | $18.90 | |
| 4 | A-504 | 1 | 06-13604 | $15.90 | |
| 8 | A-509 | 1 | 06-13608 | $5.90 | |
| 9 | A-512, A560-1, A560-2 | 1 | 06-13609 | $11.50 | |
| 11 | A-516 | 1 | 06-13611 | $5.95 | |
| 12 | A-544, A545 | 2 | 06-13800 | $127.95 | |
| 13 | A-590 | 1 | 06-15800 | $217.00 | |
| 14 | A-548, A549 | 3 | 06-13614 | $12.50 | |
| 15A | A-518 | 2 | 13287 | $87.75 | |
| 15B | A-519 | 2 | 13286 | $91.80 | |
| 16 | A-522, A-523 & A-524 | 1 | 06-13600 | $21.50 | |
| 17 | A-521 | 1 | 06-13617 | $2.90 | |
| 18 Click Here for Kit Components | A-531 | 1 | 06-13618 | $0.12 | |
| 19 | A-546 | 1 | 06-13619 | $3.20 | |
| 20 | A-547 | 1 | 06-13620 | $18.80 | |
| 21 | C-503 | 1 | 06-13621 | $158.95 | |
| 22 | A-554 | 2 | 06-13622 | $13.95 | |
| 23 | A-525 | 1 | 06-13623 | $5.75 | |
| 25 | A-511 | 1 | 06-13625 | $5.95 | |
| 26 | A-510 | 1 | 06-13626 | $1.45 | |
| -- | (1) C501, (1) A508, (1) A525, (2) A554 | 1 | 06-03155 | $151.95 |
Overview
|

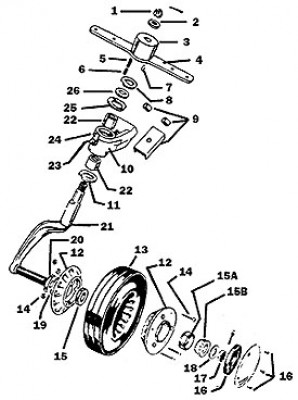

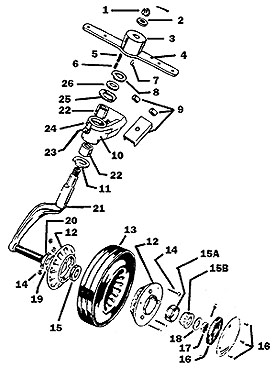

Photo identifies parts with below numbers as represented: 1-Castellated Nut 2-Washer 3-Driving Cap 4-Wheel Arm 5-Plunger Spring 6-Plunger Pin 7-Arm Driving Pin 8-Driving Washer 9-Attaching Bracket Spacer 10-Attaching Bracket 11-Powder Metal Washer 12-Wheel Hub 13-Tire; 6x2 14-Wheel Bolt; Wheel Nut 15A-Bearing Cup 15B-Bearing Cone 16-Wheel Hub Cap; Felt Washer 17-(Wheel) Retaining Nut 18-Thrust Washer 19-Kloser Spacer 20-Garlock Seal 21-Axle & Arm 22-Torrington Bearing 23-Grease Fitting 24-Cam Locating Pin 25-Cam Washer FAA Approved 26-Driving Washer Spacer |
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
