(Hover to zoom | Use mouse wheel for +/-)

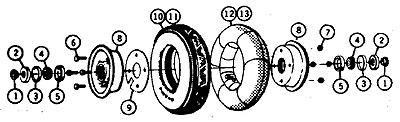

Item No. |
Description | Tire & Wheel Assy PN 2600 (8") |
Tire & Wheel Assy PN 3245-1 (10") |
Part No. | Price | Buy |
---|---|---|---|---|---|---|
1 | Spacer | 2 | 2 | 3227 | $37.70 | |
2 | Retainer, Grease | 2 | 2 | 1863 | $13.50 | |
3 | Spacer | 2 | 2 | 1862 | $15.50 | |
4 | Bearing Cone (A-4050) | 2 | 2 | 13286 | $91.80 | |
5 | Bearing Cup (A-4138) | 2 | 2 | 13287 | $87.75 | |
6 | Bolt | 4 | 4 | 18438 | $0.35 | |
7 | Nut, Self Locking | 4 | 4 | 33478-202 | $0.19 | |
8 | Wheel Half, ABI-3244-00 | 2 | 2 | 06-00745 | $193.75 | |
9 | Gasket | 1 | 1 | 2602 | $7.90 | |
10 | 8" Tire | 1 | -- | 3228 | $76.75 | |
11 | 10" Tire | -- | 1 | 06-08100 | $87.75 | |
12 | 8" Tube | 1 | -- | 3223 | $39.75 |
The Model 2600 8" pneumatic tire and wheel assembly is used on the 3200, 3250, 3400 and 3425 Series tailwheel assemblies. The Model 3245-1 10" pneumatic tire and wheel assembly is used on the 3425 & 3450 Series tailwheel assemblies. Total Wt. 3 lbs. 13 oz. |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Scott 3228 8Tire 280/250-4
Pma
A-4138-20629 Timken Bearing Race
Pma
Timken Bearing A-4050-20629
Perfect fit for the 8” tire.
Scott 3223 8 Tube 2.80/2.50-4
Does the job
Scott 3228 8Tire 280/250-4
Top-of-the-line couldnt be better. Love Aircraft Spruce and Specialty
ABI Wheel Half 3244-00-K
Should be made of gold.
Timken Bearing A-4050-20629
Tire 10X3.50-4 4Ply
Replaced old tire with this new one and no complaints
Scott 3228 8Tire 280/250-4
It was exactly as requested, the entire order. The order arrived sooner than scheduled. Awesome.
