| Description | Part Number | Price | Buy |
|---|---|---|---|
| Christavia Mk-4 Manual And Info Pack | 01-00683 | $4.85 | |
| Christavia Mk-4 Info Pack Pt 1 | 01-00687 | ||
| Christavia Mk-4 Plans | 01-00665 | $275.00 | |
| Christavia Mk-4 Flight Manual | 01-00685 | $4.85 | |
| Christavia Mk-4 4130 Tube Kit Click Here for Kit Components | 01-00674 | $8394.10 | |
| Christavia Mk-4 Misc. Kit Click Here for Kit Components | 01-00675 | $19712.95 | |
| Christavia Mk-4 4130 Sheet Kit Click Here for Kit Components | 01-00676 | $828.12 | |
| Christavia Mk-4 Plywood Kit Click Here for Kit Components | 01-00677 | $746.95 | |
| Christavia Mk-4 Aluminum Kit Click Here for Kit Components | 01-00678 | $6175.37 | |
| Christavia Mk-4 Hardware Kit Click Here for Kit Components | 01-00679 | $465.41 |
Overview
|

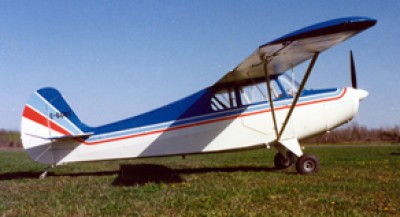

Christavia MK-4 (4 place} We have acquired the design rights to the popular Christavia MK1, Christavia MK2, and MK4 homebuilt aircraft from the designer, Ron Mason of Elmwood Aviation in Canada. The Christavia was designed in 1982 as a mission field workhorse. Design requirements were short take-off and landing, small engine (low fuel consumption), low stall speed, good cruise speed and rate of climb, large cabin area, low maintenance and high safety factor.The Christavia is easy to fly, and the Iarge cabin makes long flights very comfortable. Over 1000 sets of the plans have been sold for the Christavia MK1 (two place tandem), Christavia MK2 (two place side-by-side), and MK4 (four place). We have plans available for these aircraft, part number 01-00665 as well as a free information pack. Complete materials packages for construction of the aircraft are available through us. |
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Specifications
- Kit Price Without Engine: ~$10,000
- Plans Price: $275
- Number of Seats: 4
- Building Materials: N/A
- Building Time: ~2500 Hours
- Standard Engine: Continental / 150hp
- Horsepower: 150
- Wing Span: 35.6'
- Wing Area: 177.5 sq ft
- Empty Weight: 1100 lbs
- Gross Weight: 2150 lbs
- Takeoff Distance: 450'
- Landing Distance: 650'
- Cruise Speed: 118 mph
- Top Speed: 140 mph
- Fuel Capacity: 41 Gallons
- Range: 400 miles
Info Pack
Information Pack
Reviews
Both The Christavia MK-4 Manual and the Christavia Infomation Package are and have been very helpfull in my desision to put my current set of MK-4 Aircraft Plans to use just as soon as I Can find enough room to get started on Building This Aircraft,And getting it in the Air and Flying!!! .
or four places
Nice packet full of good info on the plane itself, but i was hoping for more info on the plans themselves, Maybe a couple sample pages would be nice.
