Alpha Systems Falcon Angle Of Attack Kit
Select Model
Non PressurizedPressurized
FREE Shipping
Overview

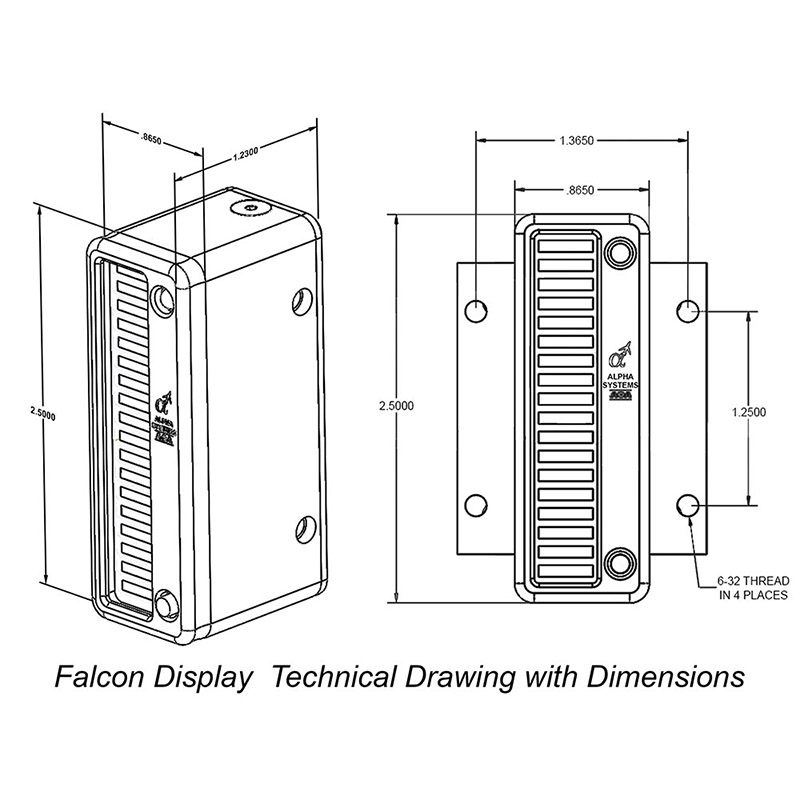

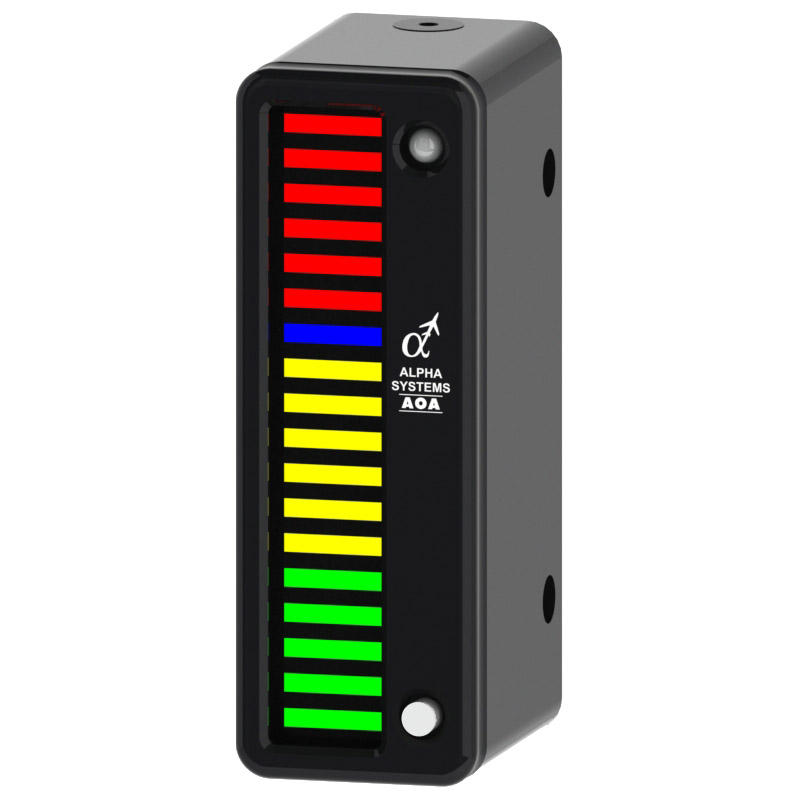

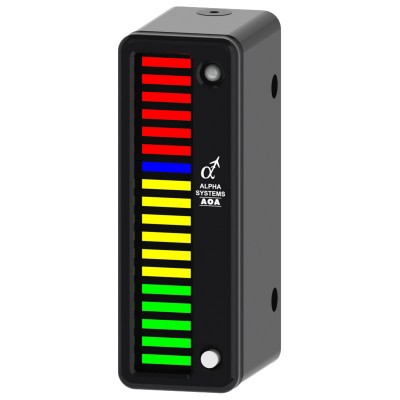

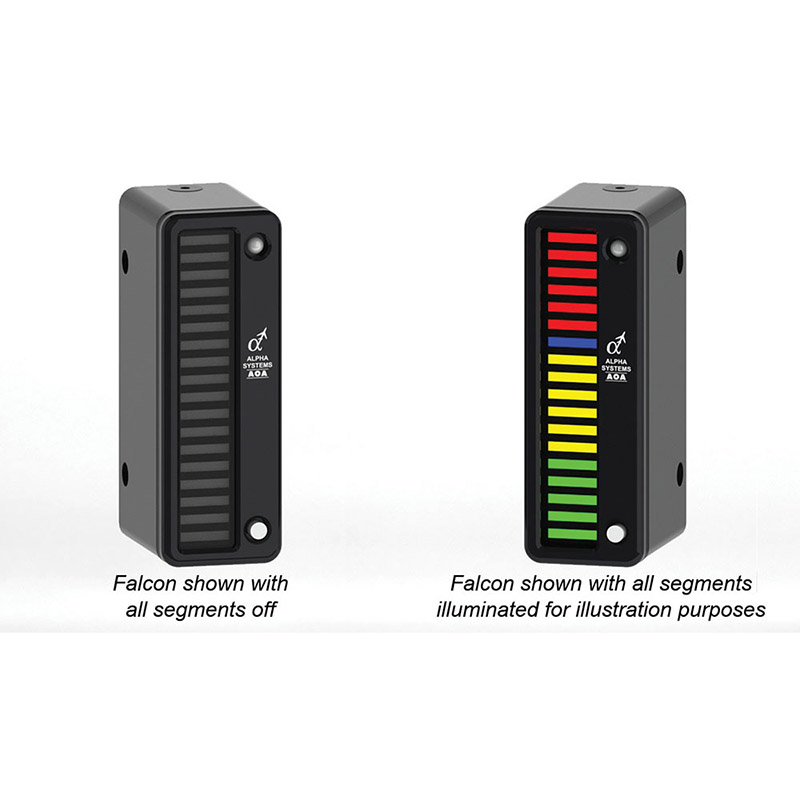

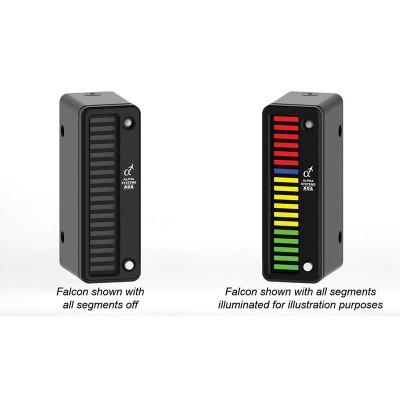

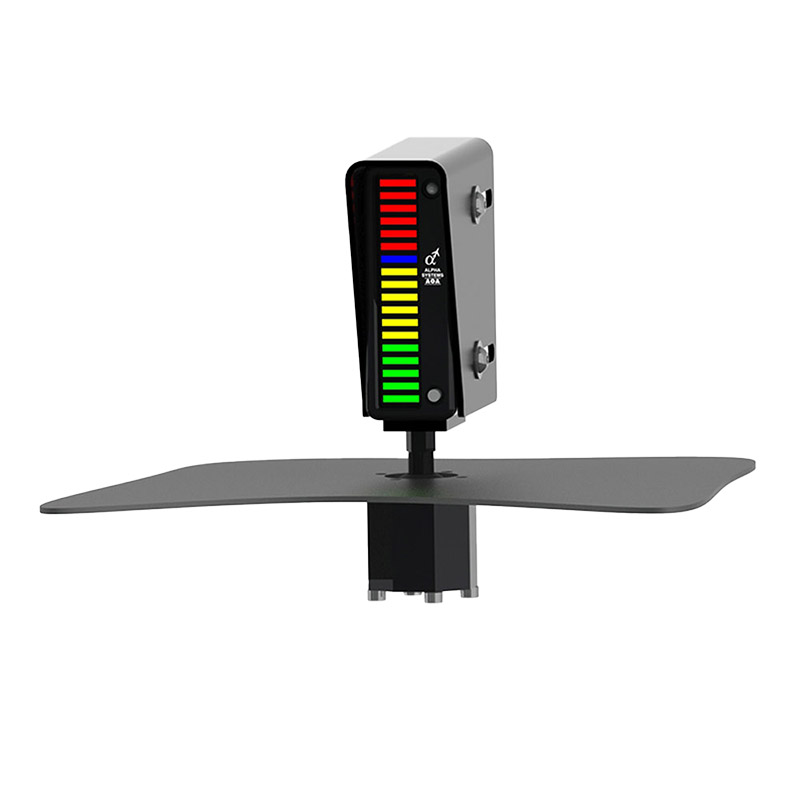

| The Falcon kit has a vertical light bar style display. With the vertical light bar display, when you come in for a landing you want to fly to the blue LED (on speed for landing). Should you come in with too low of an angle of attack, the display will illuminate into the yellow, telling you to put your nose up. Should you come in with too high of an angle of attack, the display will illuminate red, telling you to put your nose down. |
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Features
- Instantaneous Angle of Attack indication.

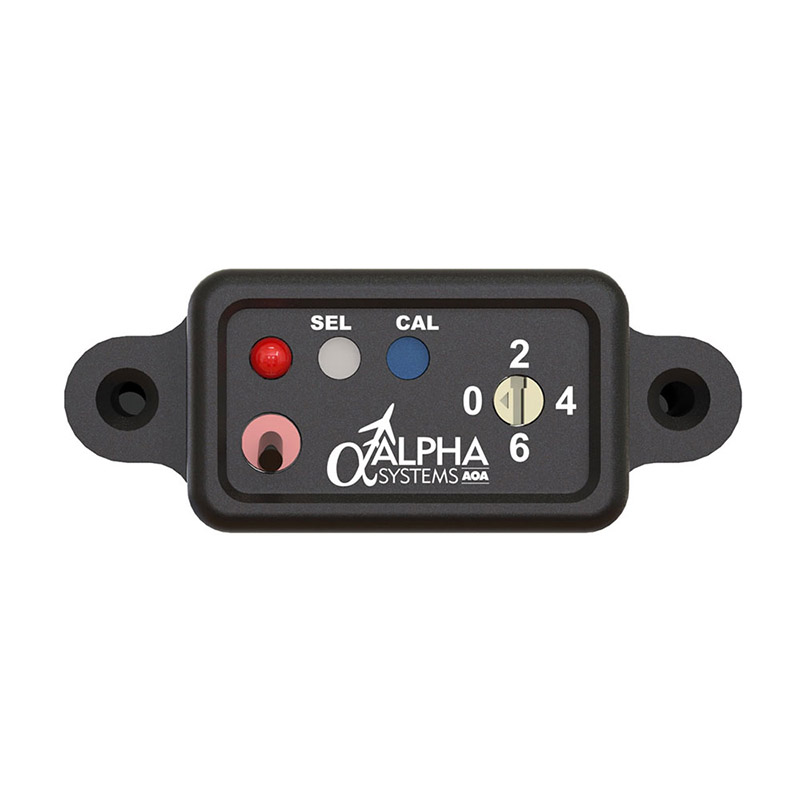

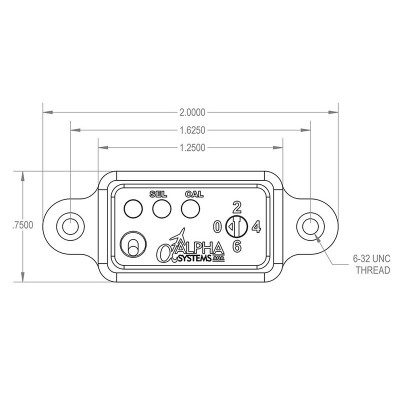

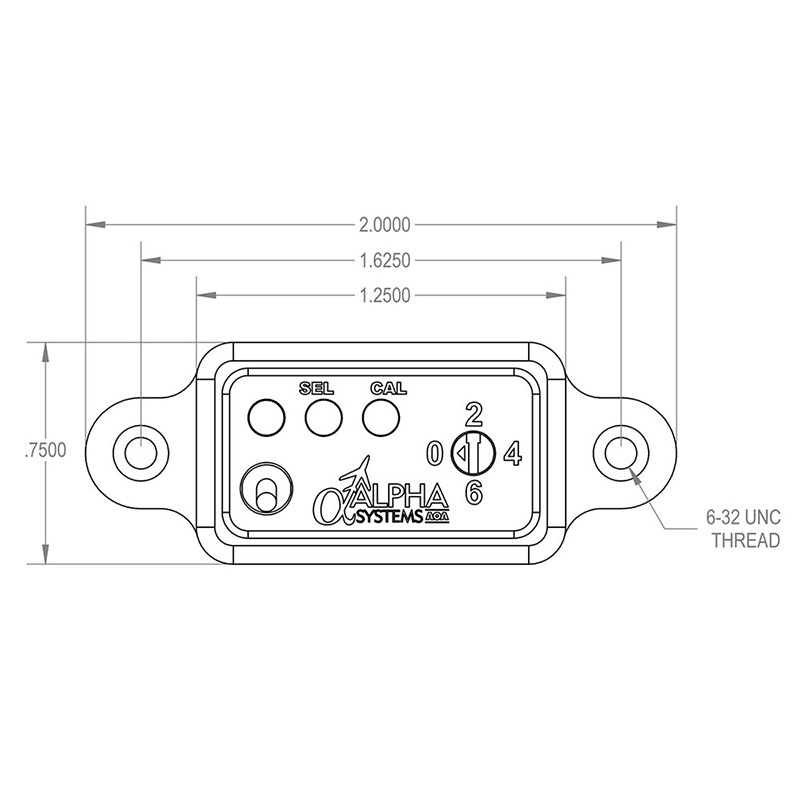

- Three point calibration process, programmed on remote switch panel, to aircraft specific lift curve.
- 16 different LED brightness levels from ultra dim to very bright.• Display has an imbedded photocell for daytime/nighttime brightness settings, choice of which is programmed at the display.
- Audio output, tied to existing audio input on audio panel by others.
- 4 different audio options to choose from which is programmed by the end user at the remote switch panel.
- Audio mute switch with amber LED indicator located on remote switch panel.
- 12-28 VDC input draws less than 0.250 Amps at full brightness.
Specifications
| Complete Kit Weight | Less than 3.00 lbs. | |
|---|---|---|
| Vertical Fixed Mount Weight | Approximately .12 LBs 2 oz | |
| Vertical Swivel Mount Weight | Approximately .195 LBs 3.1 oz | |
| AOA Interface Module size | In Inches: 5.75 x 2.60 x 1.65 | |
| System Voltage Requirements | 12 - 28 Volts DC | |
| System Max Power Draw | 0.250 Amps | |
| System Power Cable | 6 ft, three wires: power, ground and shield | |
| Heated Probe Voltage Requirements | 12 or 24 VDC (must specify when ordering) | |
| Heated Probe Power Draw | 86 Watts at 12VDC / 172 Watts at 24VDC | |
| Heated Probe Current Draw | 8 Amps at 12VDC and 8 Amps at 24VDC | |
| Heated Probe Power Wire | Supplied by others | |
| Audio Output | 1 Volt P-P max at 300 ohm input impedance | |
| Aux (Audio) Cable | 6 ft, three wires: AP audio, AP ground and shield | |
| Audio Options | Four | |
| Mute Switch | Yes, on switch panel. | |
| LED Brightness Levels | 16, from ultra dim to very bright | |
| Photocell Diode | On display, allows for custom daytime/nighttime brightness settings | |
| Pressurized Version | Yes | |
Documents
In The Box

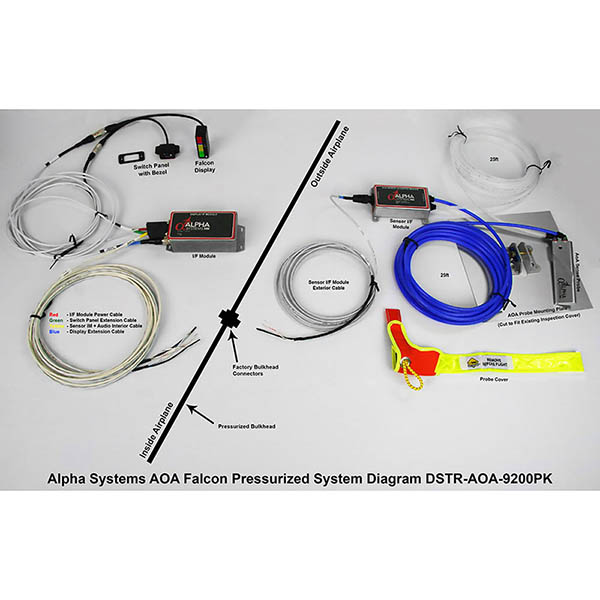

- Falcon Display
- Switch Panel Module
- Pressurized I/F Module
- Sensor I/F Module
- Non Heated Standard Probe
- 9x9 Probe Mounting Plate
- Fixed / Swivel Mount
- 6ft Power Cable
- 6ft Display Extension Cable
- 15ft Sensor I/F Module Exterior cable
- 15ft Sensor I/F + Audio Interior Cable
- 6ft Switch Panel Extension Cable
- 25 ft Blue Pneumatic Hose
- 25 ft White Pneumatic Hose
- Falcon Installation Manual
- Falcon Operations Manual
- Protractor
- Probe Cover
- Screwdriver

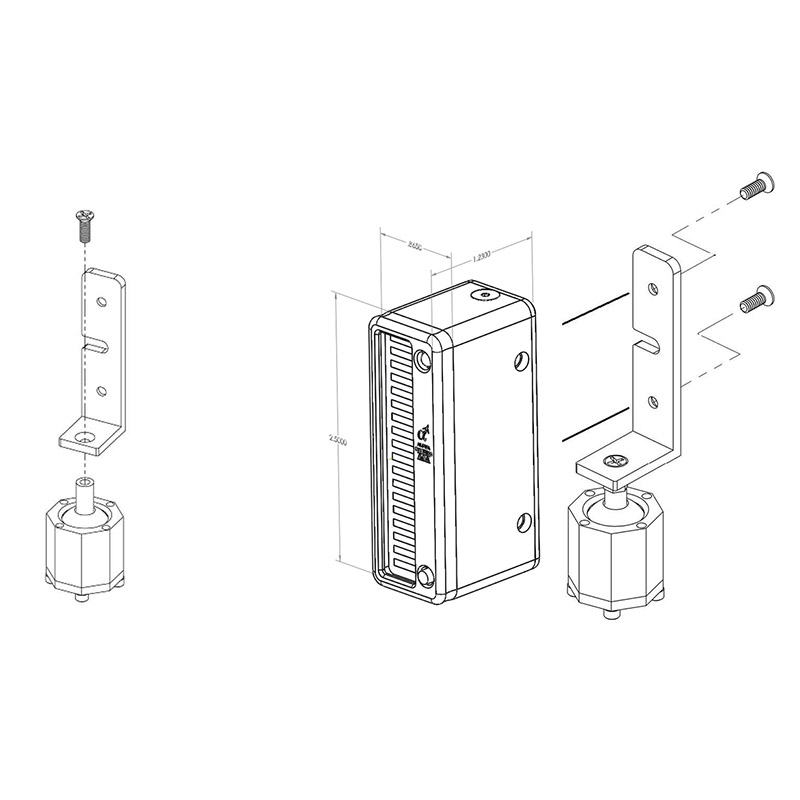

- Fixed/Swivel mounting bracket and all mounting hardware

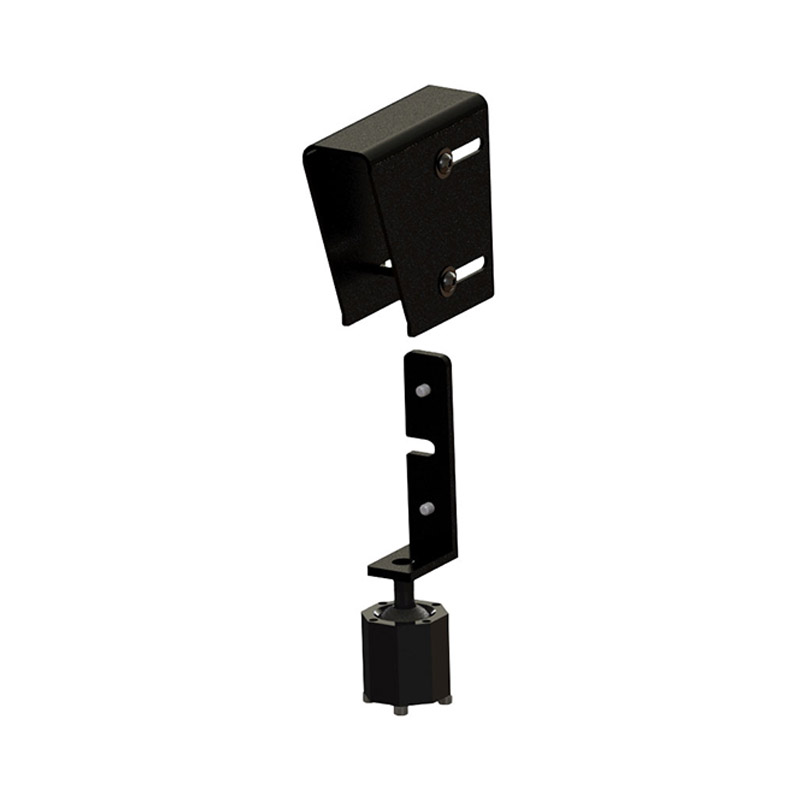

- Sun Shroud
- Drill guide
- Installation Instructions
