AOA Falcon Standard Kit With Hud

0 Reviews 0 Answered Questions
$2985.00/Each
Quantity
Add to Wishlist
Part# 11-17379
MFR Model# DSTR-AOA-9200K-(HUD)

Overview

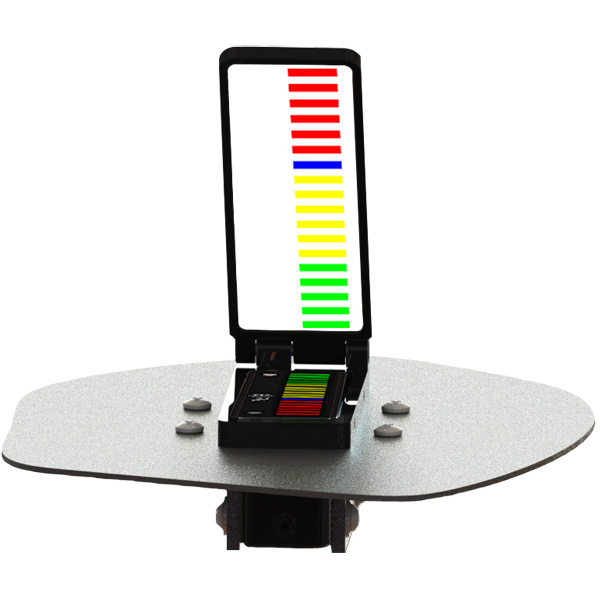

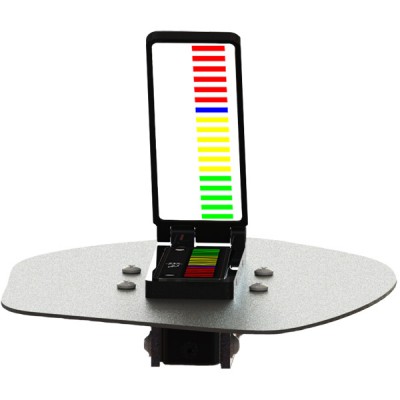

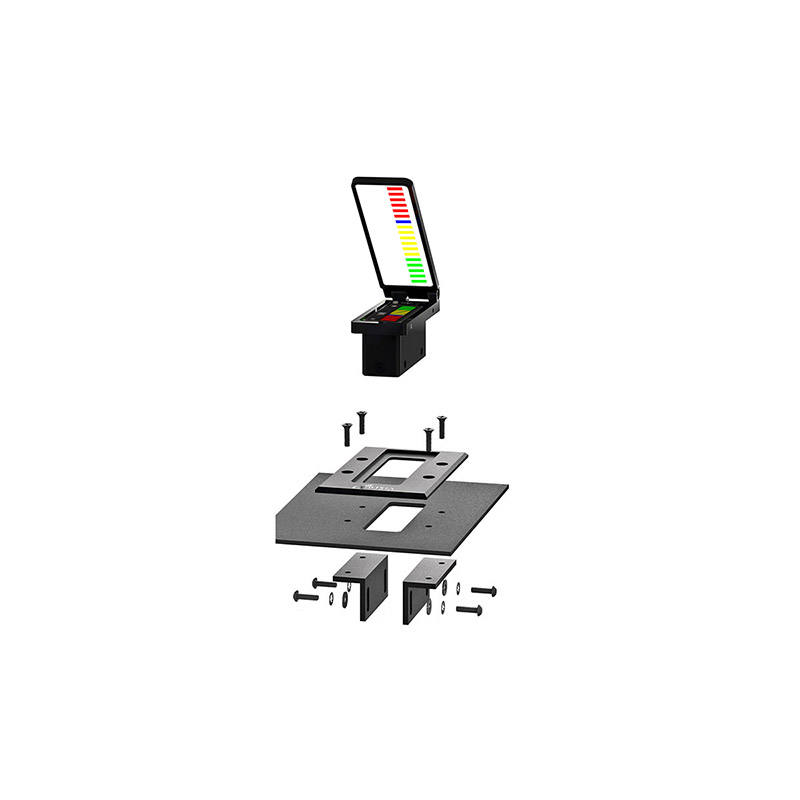

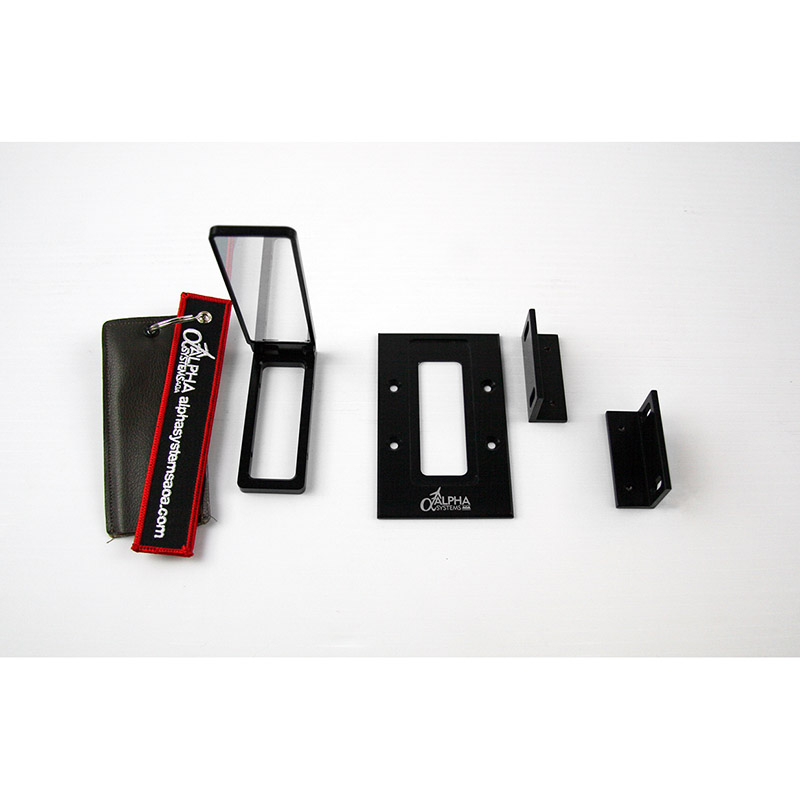

The Falcon kit has a vertical light bar style display. With the vertical light bar display, when you come in for a landing you want to fly to the blue LED (on speed for landing). Should you come in with too low of an angle of attack, the display will illuminate into the yellow, telling you to put your nose up. Should you come in with too high of an angle of attack, the display will illuminate red, telling you to put your nose down. This kit comes with the HUD (Heads Up Display) adapter kit.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

  • Instantaneous Angle of Attack indication.
  • Three-point calibration process, programmed on the remote switch panel, to aircraft specific lift curve.
  • 16 different LED brightness levels from ultra dim to very bright.
  • The display has an embedded photocell for daytime/nighttime brightness settings, choice of which is programmed at the display.
  • Audio output, tied to the existing audio input on the audio panel by others.
  • 4 different audio options to choose from which is programmed by the end user at the remote switch panel.
  • Audio mute switch with amber LED indicator located on the remote switch panel.
  • 12-28 VDC input draws less than 0.250 Amps at full brightness.

Specifications

Complete Kit Weight Less than 3.00 lbs.
AOA Interface Module size In Inches: 5.75 x 2.60 x 1.65
System Voltage Requirements 12 - 28 Volts DC
System Max Power Draw 0.250 Amps
System Power Cable 6 ft, three wires: power, ground and shield
HUD Weight 3.52 oz / 0.22 lb

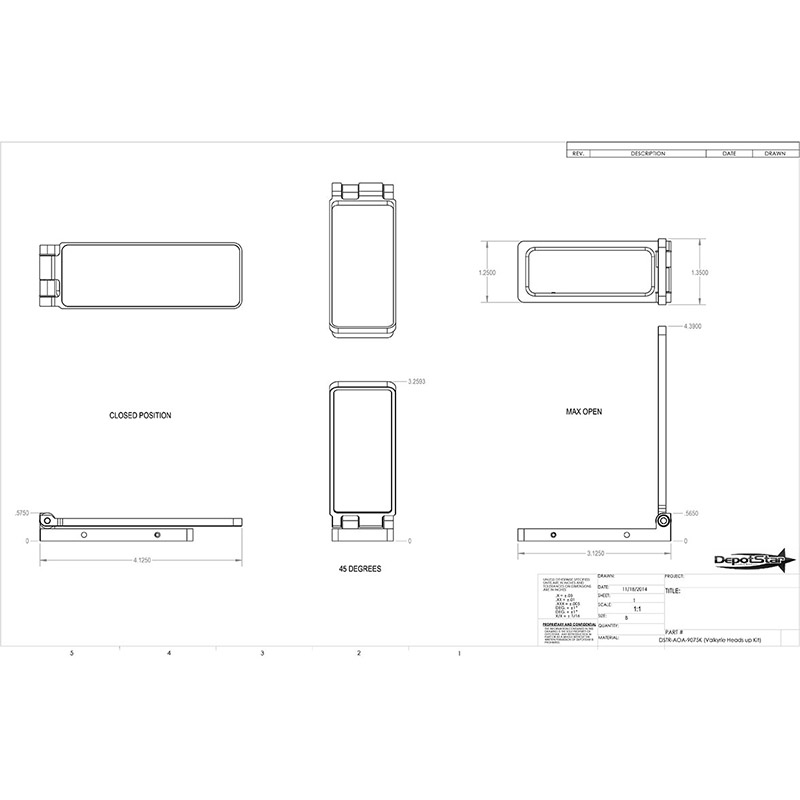

HUD Frame Dimensions L: 4 1/8" x W: 1.250"

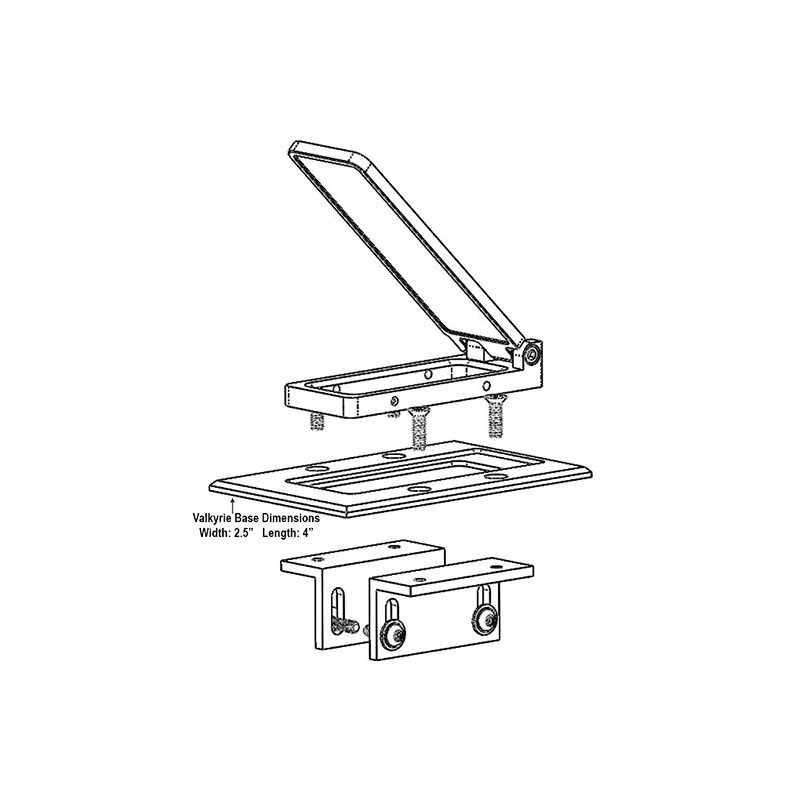

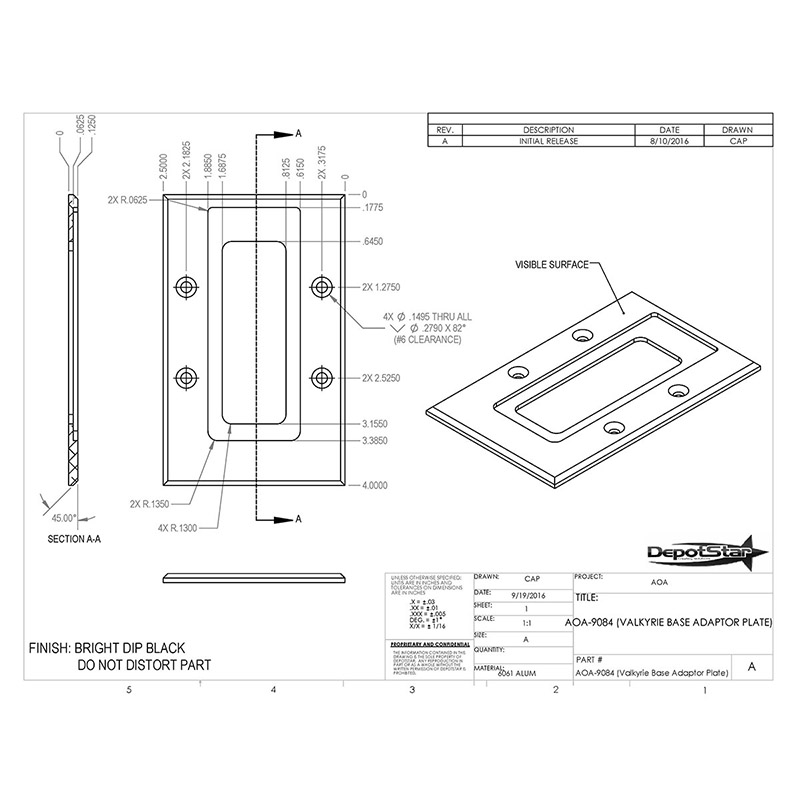

HUD Bezel Dimensions L: 4" x W: 2.5"
Heated Probe Voltage Requirements 12 or 24 VDC (must specify when ordering)
Heated Probe Power Draw 86 Watts at 12VDC / 172 Watts at 24VDC
Heated Probe Current Draw 8 Amps at 12VDC and 8 Amps at 24VDC
Heated Probe Power Wire Supplied by others
Audio Output 1 Volt P-P max at 300 ohm input impedance
Aux (Audio) Cable 6 ft, three wires: AP audio, AP ground and shield
Audio Options Four
Mute Switch Yes, on switch panel.
LED Brightness Levels 16, from ultra dim to very bright
Photocell Diode On display, allows for custom daytime/nighttime brightness settings
Pressurized Version No
