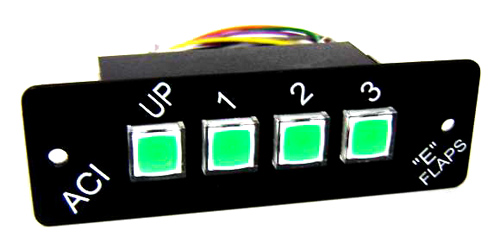

Electronic Flap Actuator / Indicator
MFR Model# 2071
FREE Shipping
Overview
|
The Electronic Flap Actuator (2071/2072) is an electronic module designed to automatically control an electrical flap actuator and provide visual readout of 4 flap positions. The device can be used with any electrical actuator providing the operating current is less than 8 amps at 12 volts. A 5K or 10K resistive sensor is required to provide a voltage readout of the actuator position. The control unit incorporates push button switches with built in LED lights. The system can be easily calibrated to your flap system. This involves first placing the actuator in the manual mode then manually moving the flaps to a desired position by pushing one of the switches. Once the flaps are positioned correctly, a combination of switch actions will record that flap position in the onboard memory in the actuator. This process is repeated until the values for all four positions have been stored in the memory. Once calibrated, pushing any of the switches will activate the actuator and drive the flaps to the correct pre-defined position. When the flaps are at the correct position, the actuator will stop, and the LED in the correct switch will illuminate indicating that the flaps are in the correct position. The LED lights in the display can be dimmed by hooking the dimmer output to an external dimming voltage. The Flap actuator also incorporates an electrical flap position interface for use with the Aircraft Components P/N 2070 Gear Position Warning System eliminating the need to install the external flap switch. Note: This system is not FAA approved. It is intended for installation in Experimental category aircraft only. The Electronic Flap Actuator is available with 4 flap position switches (full up, 20 degrees, 40 degrees, and full down). |
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Features
- A device designed to electronically control an electric flap actuator and provide visual readout of preset flap positions.
- Three or four switches can be calibrated to match your flap positions.
- Push any switch and the flaps automatically move to that position then stop.
- Can be mounted horizontally or vertically.
Documents
- Installation and User Manual (PDF) for 2071 4 Switch Flap Controller
Reviews
I was so happy with the controller in my first aircraft, I had no hesitation in purchasing for my new build.
Verified Purchase
2071 Electronic Flap Control
Produto de qualidade superior. Atende perfeitamente aos meus propositos
Verified Purchase
2071 Electronic Flap Control
Verified Purchase
2071 Electronic Flap Control
It is exactly what I needed.
Controller works as described. Information included with the controller is very helpful.
Item works as advertised. Dealings w/ customer service were excellent.
I installed this flap controller in my Lancair 360, works very nicely. I also installed a speed sensor that prevents accidental actuation the flap control above 125 kts, unlike someone else describes it above, easy fix of that problem. The manufacturer is, however, not something I would recommend to be used or ordered from. I contacted them several times, they did not answer, ever. I even doubt that they are a real company. Hence only the 4 stars.
I did the same thing Erno did. I put a speed sensor in line with the power supply which is set for 120 knots on my Lancair 360. Now it works great. No accidental activations. Being able to program the flap angles is a real plus - you can customize to your flying techniques.
The push buttons are micro switches and only require a slight tap to accuate. I recomend placing this control unit where you will not accidentially touch the push buttons. Yesterday I accidentally tapped button #2 while traveling at 170 knots which put the plane into a nose dive and tripped the breaker. I recommend a redesign with real push buttons. Until then, this is a dangerous product.
Q&A
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Yes, we have added the Installation and User Manuals for both models to the "Documents" tab of the web page.
The dimensions and wiring diagrams can be found under the documents tab.
Panel cut out: thickness 3/4 | width 2-11/16
