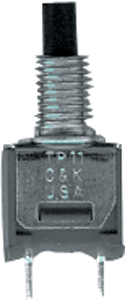

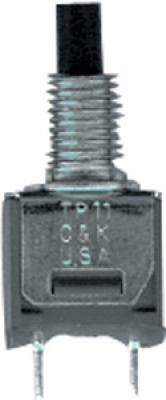

Push-Button Switch Spdt Momentary Black 1A 120Vac

$10.95/Each
Quantity
Add to Wishlist
Part# 11-04471
MFR Model# TP11SHZQE

Overview

Switch, Micromini, Pushbutton, SPST, Off-Mom, PC Terminal

Features:
  • SPST Off-Mom.
  • 0.155" High Plunger, threaded
  • Solder Lug
  • Silver Contacts
  • Epoxy Sealed
  • Subminiature size - capable of switching 1 AMP
  • Verticle and right angle terminations
  • PC and panel mount models
  • Epoxy terminal seal- compatible with bottom wash cleaning

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Great item. Fits perfectly.

Jerry W Verified Purchase

Push Button Swtch C&K Spdt Blk

October 31, 2024

The switch functioned as advertised (hence 5-star), but was tiny and did not fit a 67 Cessna 172 yoke as a PTT replacemet. Wish there were dimensions provided or a compatibility chart of some sort.

Timothy J Verified Purchase

Push Button Swtch C&K Spdt Blk

September 7, 2024

Dag R Verified Purchase

Push Button Swtch C&K Spdt Blk

May 15, 2023

Works great. Fits in yoke easily.

James W Verified Purchase

Push Button Swtch C&K Spdt Blk

December 16, 2022

This thing is tiny. The solder lugs are big enough to solder if you have a little skill. The button is small but easy to press.

George T Verified Purchase

Push Button Swtch C&K Spdt Blk

October 19, 2022

Works as described. Very satisfied

Richard P Verified Purchase

Push Button Swtch C&K Spdt Blk

August 30, 2022

Worked perfect for C172 PTT replacement.

David K Verified Purchase

Push Button Swtch C&K Spdt Blk

June 17, 2022

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Does switch come with mounting washer and nut? What are the measurements on threaded part of switch or what hole size works for mounting?

Yes, the washers and nut are included in the bag. Threaded portion is approx 1/2 inch length x 5/32 inch diameter.

Q: What are the dimensions of the switch body itself?

The length of the switch body is 0.4 inches.

Q: Does it have a tactile feedback?

It does not have a click but there is some resistance on it.
