Overview

	WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

• Guaranteed to never overcharge/undercharge. (33°F to 130°F)
• Push-Button Selection for ALL battery types and charge rates.
• 100% Full - Time U.S. Patented Pulse-type Desulfation keeps lead acid battery free of sulfate or dissolves sulfate completely in older batteries.
• Detects and rejects batteries with bad cells.
• Maximize battery life and capacity, recovers weak batteries.
• Diagnoses battery’s condition / state-of-charge.
• Recovers weak or deeply discharged batteries: including but not limited to flooded filler cap, maintenance-free, valve regulated lead-acid (VRLA), sealed lead-acid (SLA), starter, deep cycle and hybrid.
• Maintain up to 8 batteries at a time. (requires BatteryMINDer® Y-Connector Accessory 210-AY)
• Auto-Restart after power failure.
• Intrusion protected from water and dust per IEC STANDARD IP65.
• Bad cell detection with auto-shutdown.
• Includes Short circuit, spark, reverse polarity protection, thermal runaway protection, automatic D/C disconnect on A/C failure and quick-connect/disconnect fused alligator clip assembly
• Very high efficiency. California CEC Approved.
• Automatically detects input AC power.
• ECO-mode with hi-efficiency / low power consumption.
• Ambient temperature compensation. Built-in temperature sensor automatically adjusts charge rate to ensure full-charge. (as low as 0°F or as high as 130°F)
• 18 LED indicators show state-of-charge and important status mode / battery condition. Rugged, vibration-resistant construction.
• Never connect two or more batteries together before fully charging each and checking their condition. Failure to fully charge each battery and check their condition can result in a serious safety hazard.
• Not for nickel–cadmium (NiCad), nickel–metal hydride (NiMH) or aircraft batteries.

Specifications

• Voltage: 24V
• Charging Current: 1/2/4 AMP
• Power Source: 90-140 VAC, 47-63 Hz
• Temperature Compensation: Yes: -4°F (-20°C) to 122°F (50°C)
• Overcharge Protection: Yes
• Polarity Reversal Protection: Yes
• International Standard IP65*:Dust tight: No ingress of dust; complete protection against contact (dust tight). Protection from water projected by a nozzle (6.3 mm) against enclosure from any direction shall have no harmful effects.
• Multiple Batteries (#):8
• Product Dimensions:4.9” L x 7.3” W x 2.1” H
• Works With:All sizes/types/brands of 12 Volt flooded (filler cap) and sealed maintenance free batteries

Documents

• Instruction Manual

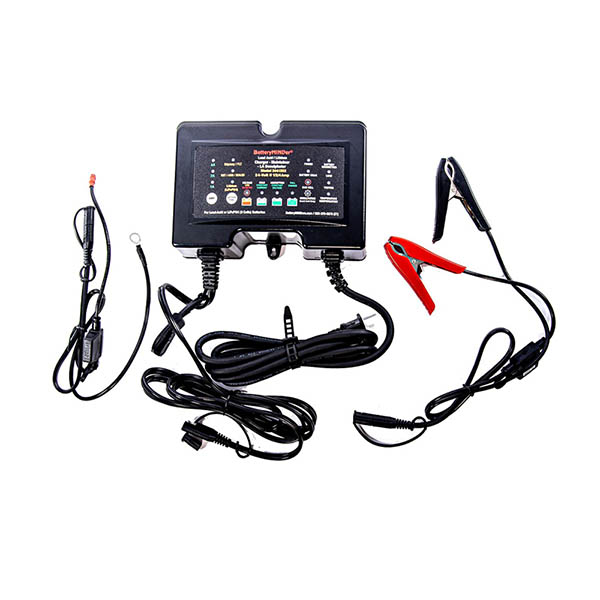

In The Box

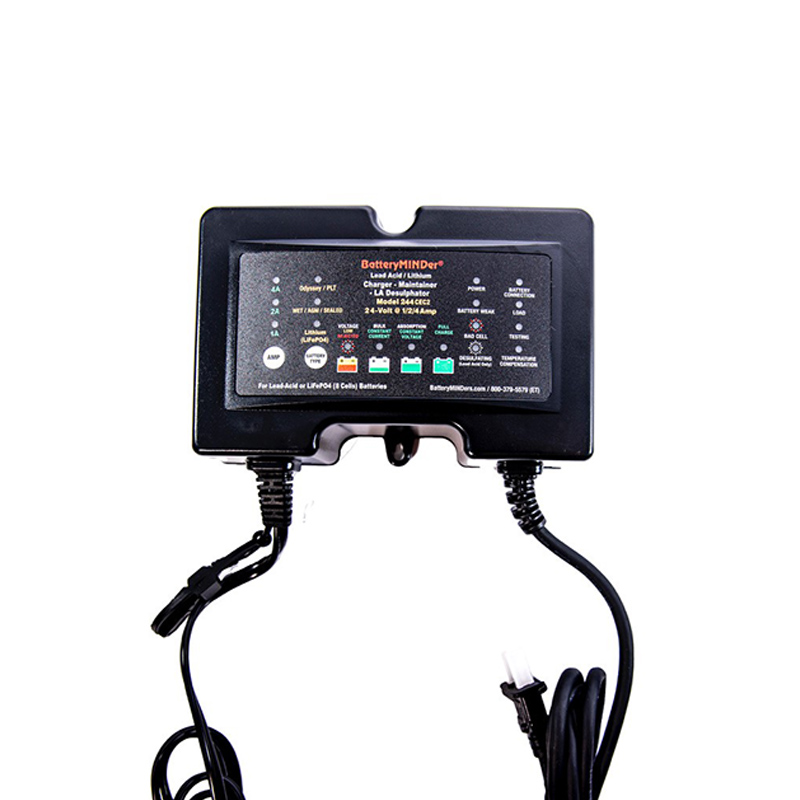

• Model 244CEC2 Charger-Maintainer-Desulfator
• 6' AC cord, 6' DC cord with quick connector (SAE)
• Auto-Temp Compensation Sensor (installed)
• Battery Clip Cord Set with Quick Connector and 15A replaceable fuse
• 2' Ring Terminal Cord Set with Quick Connect
• Ring Terminal Assembly and 15A replaceable fuse
