Overview
|

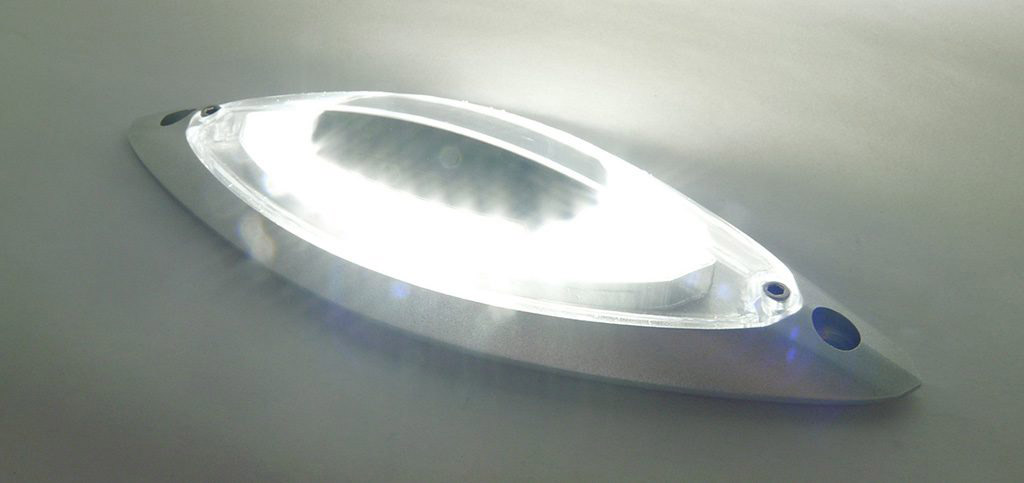

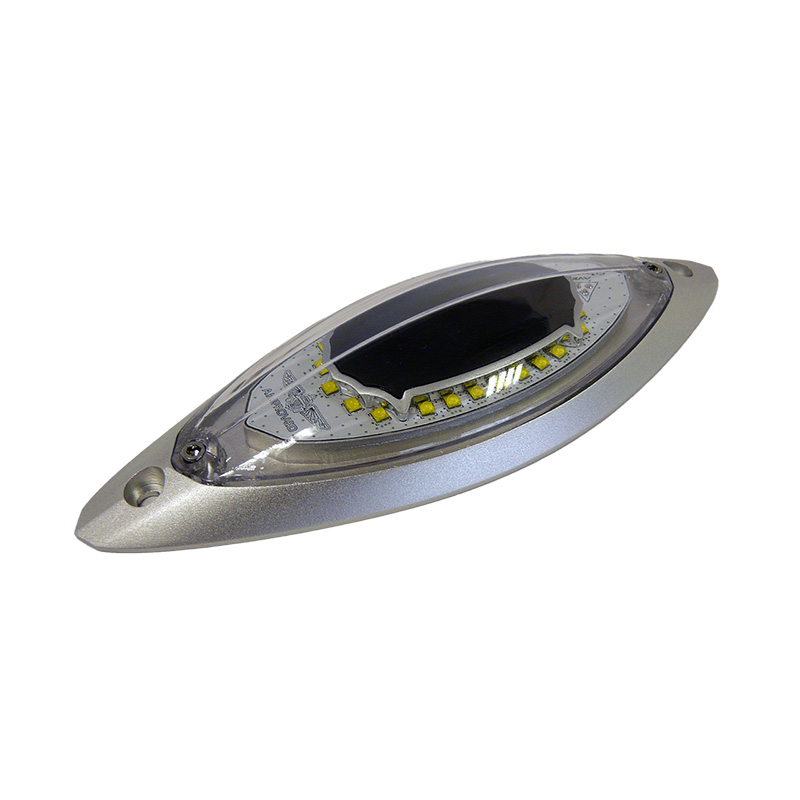

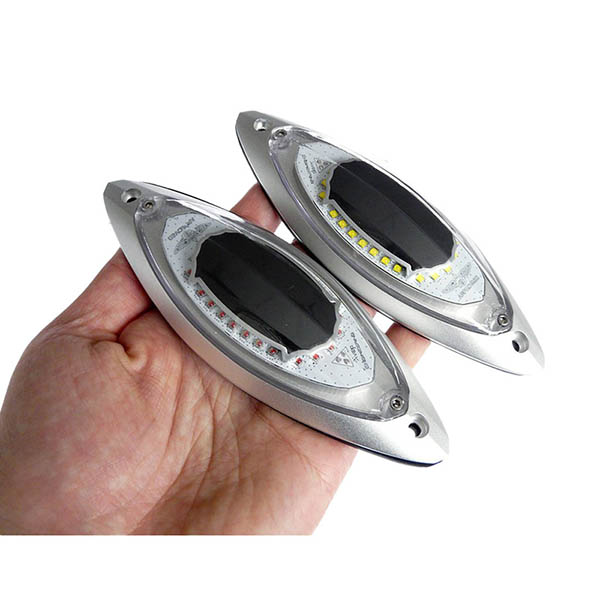

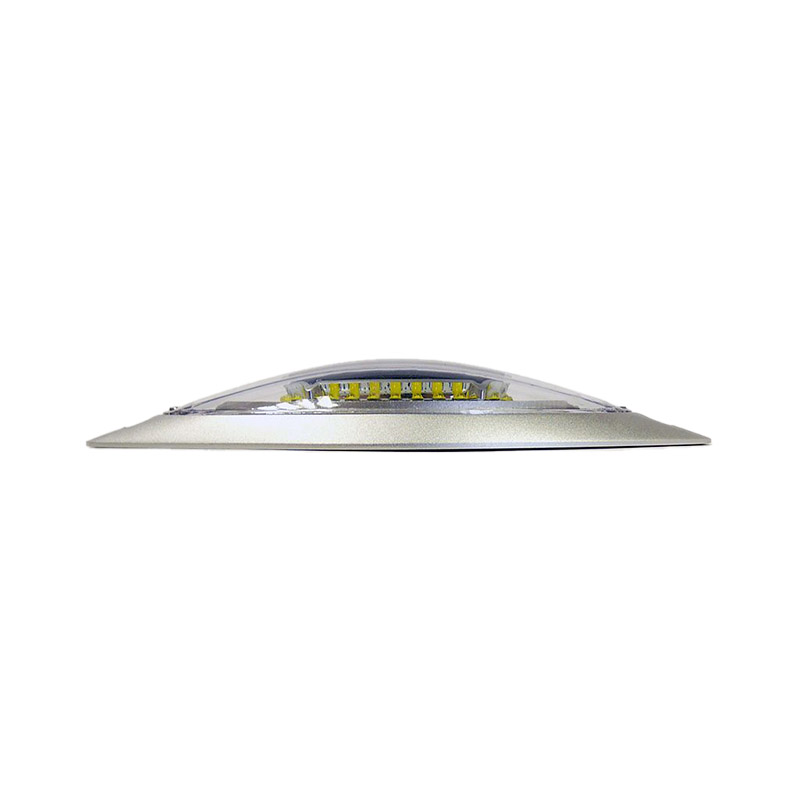

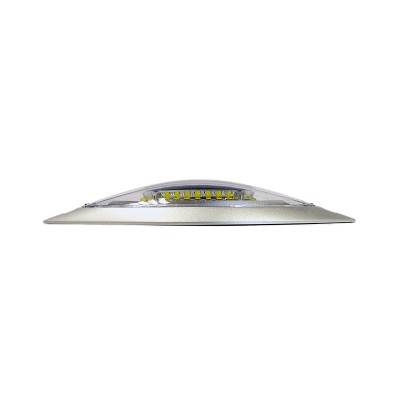

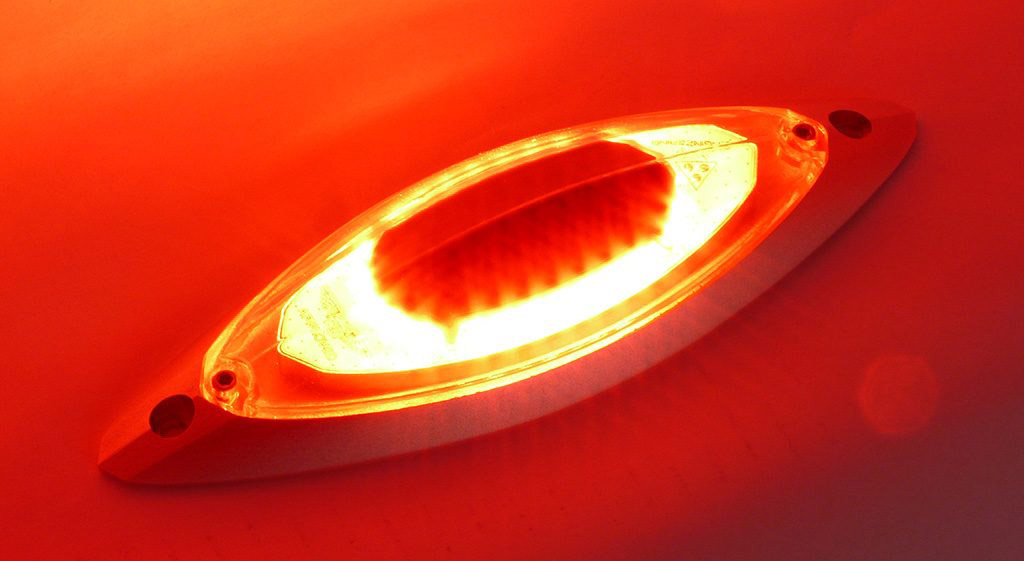

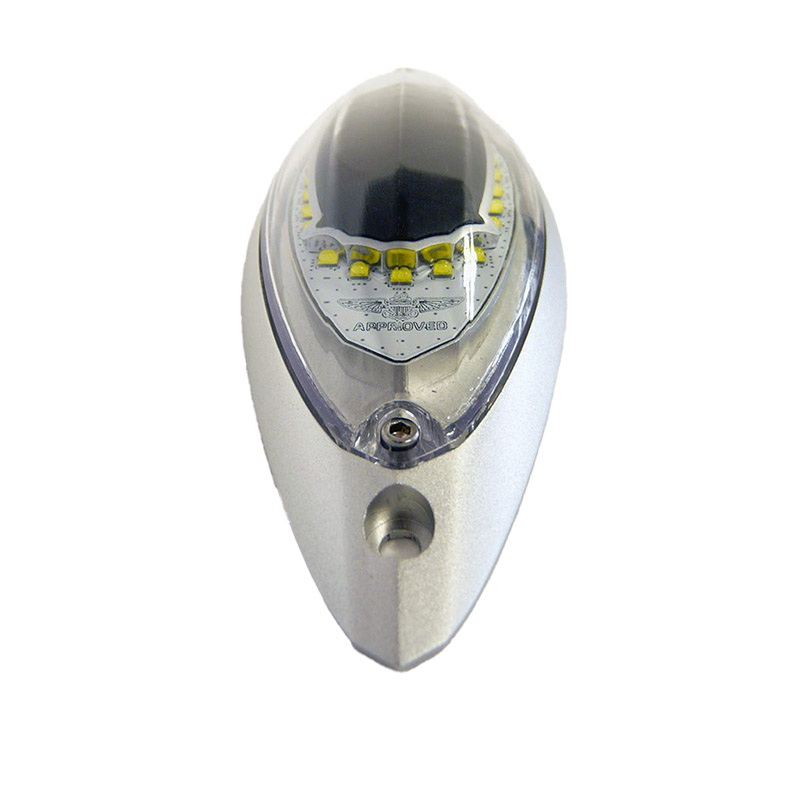

The SuperNova FS DayLite – White or Red anti-collision light is a high powered LED light. It have been designed to be lightweight, with low drag and with a low power draw to meet the highest requirements of all aircraft. It contains of red or white LEDs. SuperNova FS DayLite is also available in infrared LEDs.
NOT APPROVED FOR INSTALLATION ON CERTIFIED AIRCRAFT. THIS IS NOT A TSO CERTIFIED LIGHT |
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Specifications
| Dimensions (mm): | 154.2 x 53 x 21 |
|---|---|
| Dimensions (inches): | 6.070“ x 2.087“ x 0.827“ |
| Weight: | 155g / 5.47 oz |
| Operating Voltage Range: | 9-36 V DC |
| Input Power – White Strobe (@28V): | 63.8 W (peak) |
| Input Power – Red Strobe (@28V): | 47.9 W (peak) |
| Input Current – White Strobe (@28V): | 2.32 A (peak) |
| Input Current – Red Strobe (@28V): | 1.71 A (peak) |
| Repetition Rate of Strobe: | 50 cycles per minute |
| Recommended size of mounting screw: | M4 (SHCS #8-32) |
| Ambient Temperature: | from -55°C to +85°C from -67°F to +185°F |
| Overheat Protection: | Yes (+85°C) |
| Reverse Polarity Protection: | Yes |
| Transient Voltage: | 60V |
| Under-Voltage Protection (lockout): | Yes (9V) |
| Over-Voltage Protection (lockout): | Yes (36V) |
| Waterproof, Dust-proof, Shock-proof, Vibration-proof: | Yes |
Documents

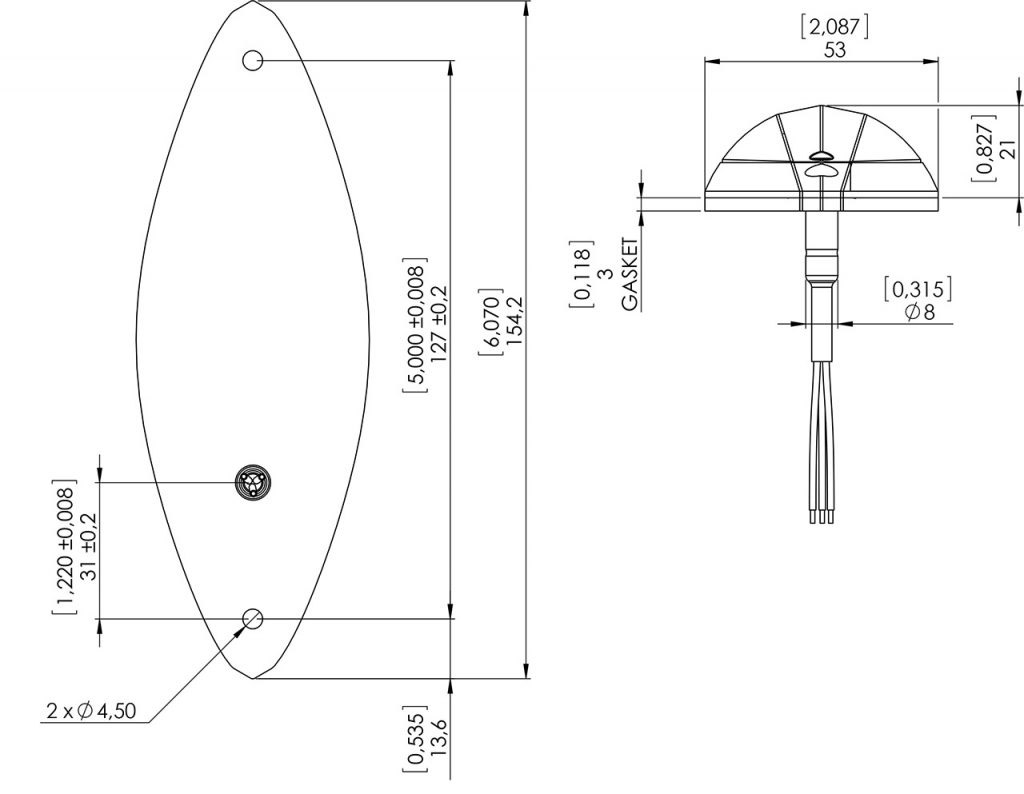

- Technical Drawing (JPG)
- Tech Data Sheet (PDF)
