Aveo Ultra Embedded Galactica 2-In-1 Nav / Position / Strobe LED Lights - TSO'd
MFR Model# AVE-WPSG/R-64G
FREE Shipping
Overview
|
The Ultra Galactica™ Series lights are a very popular choice for general aviation aircraft of any size, due to their compact design and easy installation. With full optical testing for brightness and chromacity, the Ultra also completed the rigorous DO-160F testing regime exceeding all requirements. The Ultra has also become the leading winglight solution for numerous military and law enforcement/surveillance UAVs around the world and is very popular with aircraft manufacturers. Encapsulated in the exclusive AveoDiamidium™ formulation and with our goniophotometer-optimized chromed reflector system, the Ultra wing lights are virtually unbreakable. Packed with 27 ultra high brightness LEDs that are the industry state-of-the-art in performance and output lumens, the Ultras still feature the same tiny footprint the popular Aveo e-series wing lights have become so well-known for in the aviation world.
These aircraft lights meet both TSO C30c and C96a design specifications and EXCEED the requirements of TSO C30c, C96a, SAE AS 8037 and AS8017A, plus DO-160. |
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Features
- Position / Strobe LED light
- Extremely Lightweight at 83 grams
- 9-32 volt DC input range
- No External Power Supply or Strobe Unit
- Light Synchronization Feature
- Unbreakable Diamidium™ encapsulation
- Unmatched Circuit Technology
- Advanced Computer and Goniophotometer Engineered Optics
- Limited Warranty - Product must be registered within 30 days of purchase Here
Specifications
| Dimensions (mm): | 100 mm x 46.2 mm x 34.1 mm |
|---|---|
| Dimensions (inches): | 3.94” x 1.819” x 1.34” |
| Weight (g): | 113 g |
| Weight (oz): | 3.985 oz |
| Operating Voltage Range: | 9 – 36 Vdc |
| Input Power P/N: AVE-WPSG-64G Mod(4) - Nav Green: | 9 V / 0.42 A : 3.78 W 14 V / 0.28 A : 3.92 W 28 V / 0.15 A : 4.20 W 36 V / 0.12 A : 4.32 W |
| Input Power P/N: AVE-WPSG-64G Mod(4)Strobe: | 9 V / 5.65 A : 50.85 W 14 V / 2.78 A : 38.92 W 28 V / 1.29 A : 36.12 W 36 V / 1.00 A : 36.00 W |
| Input Power P/N: AVE-WPSR-64G Mod(4)Nav Red: | 9 V / 0.37 A : 3.33 W 14 V / 0.25 A : 3.50 W 28 V / 0.13 A : 3.64 W 36 V / 0.11 A : 3.96 W |
| Input Power P/N: AVE-WPSR-64G Mod(4)Strobe: | 9 V / 5.62 A : 50.58 W 14 V / 2.79 A : 39.06 W 28 V / 1.29 A : 36.12 W 36 V / 1.00 A : 36.00 W |
| Repetition Rate of Strobe: | 50 cycles per minute |
| Recommended size of mounting screw: | M5x45 mm (DIN7984) or equivalent |
| Torque requirement for screw M5x45mm: | 1.2 Nm |
| Ambient Temperature: | from -55°C to +85°Cfrom -55°F to +185°F |
| Overheat Protection: | Yes (+85°C) |
| Reverse Polarity Protection: | Yes |
| Transient Voltage: | 80V at 2sec max, both polarities |
| Under-Voltage Protection (lockout): | Yes (9V) |
| Over-Voltage Protection (lockout): | Yes (36V) |
| Waterproof, Dust-proof, Vibration-proof: | Yes |

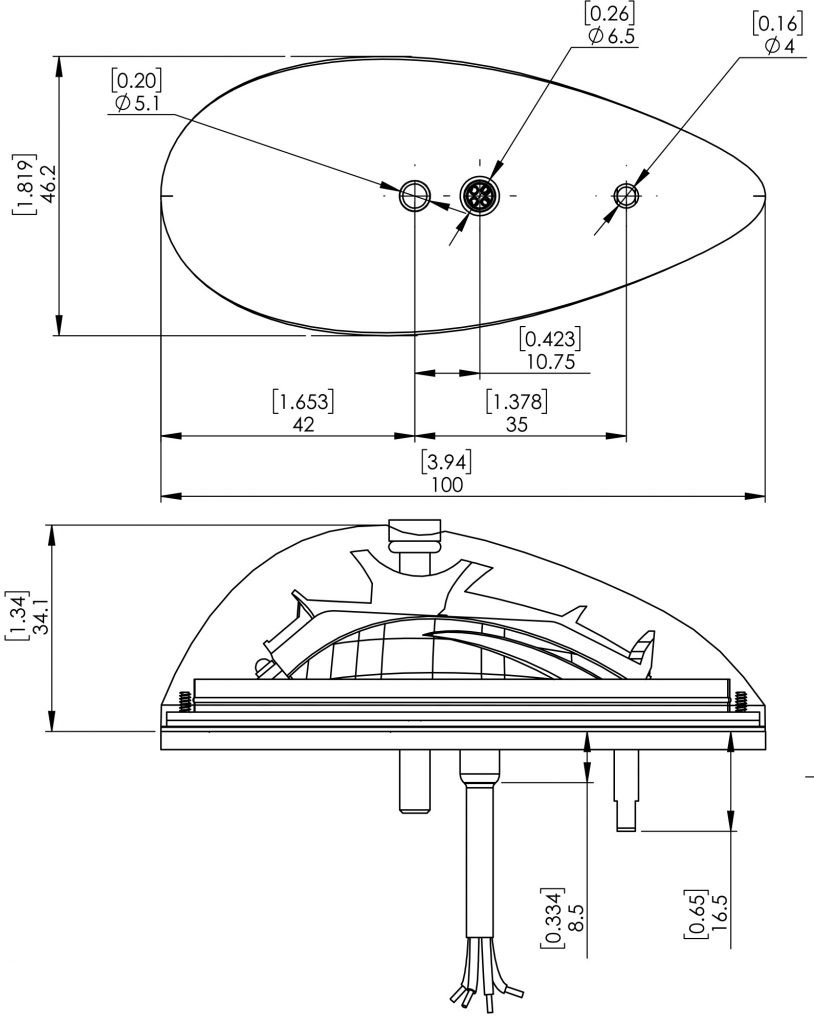

Drawing
Reviews
This is a product we always use on our aircraft. The product quality is good, and ACS employees respond quickly and accurately.
Verified Purchase
Aveo Ultra Embedded Galactica
These are just what I wanted, great quality very bright with very low power draw.
Verified Purchase
Aveo Ultra Embedded Galactica
Words wont describe these LED Lights I love them
Unbelievable performance, dont look at them when flashing.
Q&A
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
The Aveo Ultra Embedded Galactica LED Lights are sold as a pair, one red and one green.
Per the manufacturer, the ultra embedded Galactica 3-in-1 Nav/Position/Srobe LED Lights meet both TSO C30c and C96a design specifications and exceed the requirements of TSO C30c, C96a, SAE AS 8037 and AS8017A, plus DO-160. Please consult with your local FISDO and A&P Mechanic for a 337 application before purchase for your certified aircraft.
Per Supplier: You CANNOT use a power supply with Aveo lights. A power supply will FRY the lights. As for position lights, that is a FAA coverage question that the owner of the aircraft needs to determine. Depending upon placement on the wingtip, the Aveo lights that are AVE-WPSTG/R model include a rear position light in the unit. Lights that are AVE-WPSG/R do NOT have a rear position light in the unit...They are called Embedded Models. If the you need a rear position light then take a look at an Aveo PosiStrobeXP to replace your existing tail light. The wing lights and the tail light can then be synched via the blue wire.
These have a 5 year limited factory warranty.
They will function fully with out the sync wire connected, they would just flash independently of each other.
Per the vendor, "The Galactica Series comes with required certified paperwork for installation. You should not require a 337 field approval."
